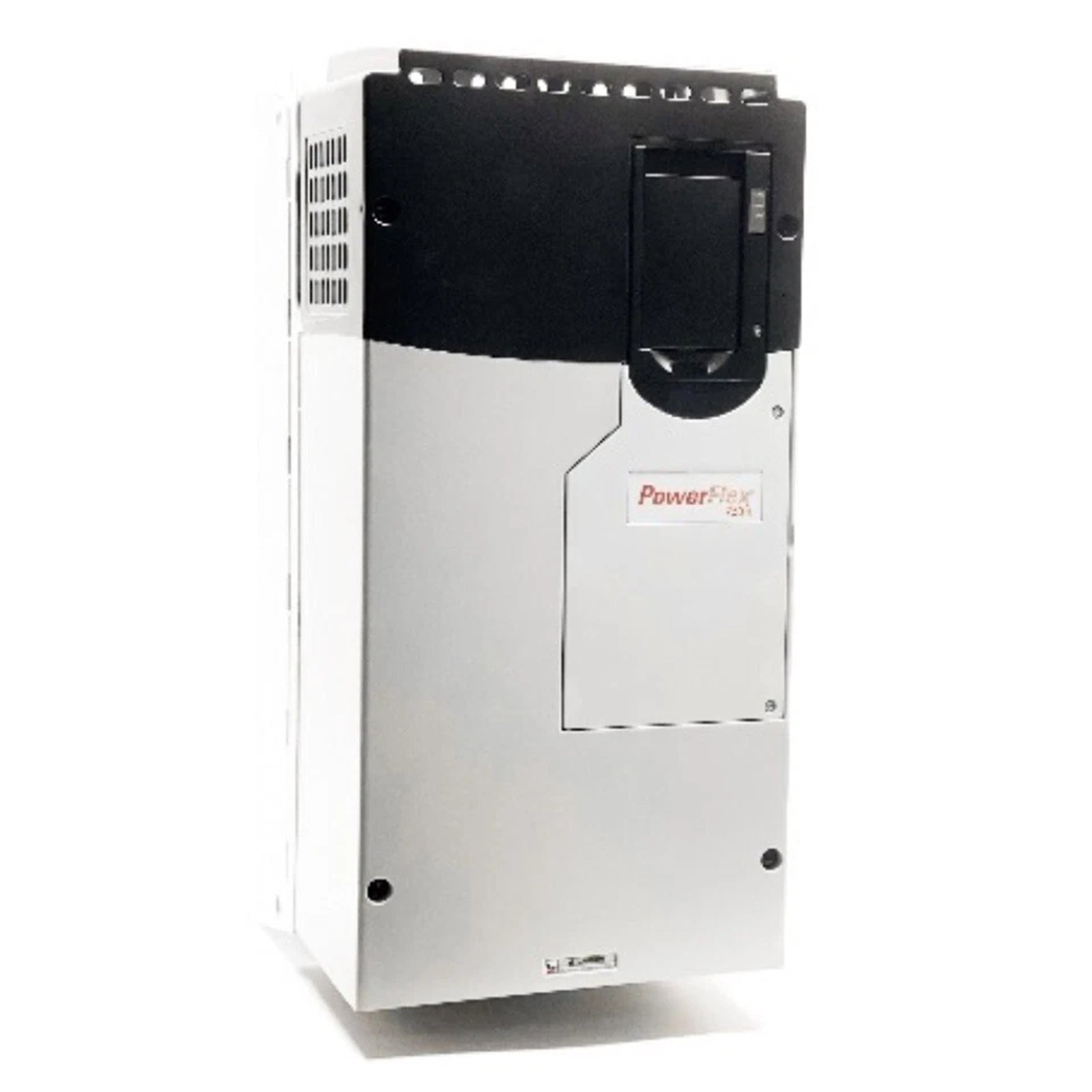

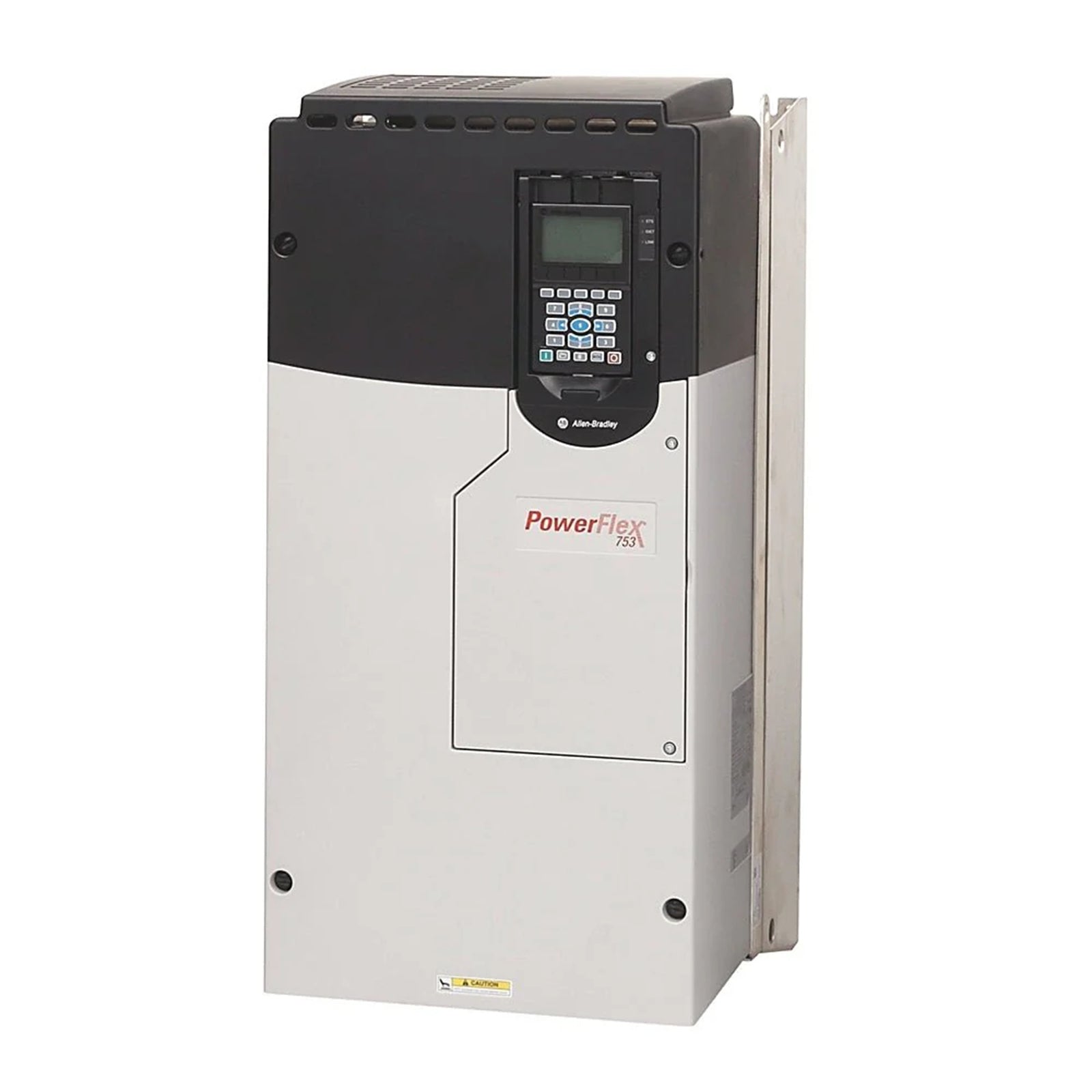

Configured for precise motor speed regulation and torque control in factory automation networks, the Allen-Bradley 20F1ANC140JA0NNNNN (PowerFlex 753 AC Drive) provides direct physical and electrical execution of variable frequency power inversion.

Hardware Parameter Matrix

Deterministic Networking and Core Infrastructure

Integration within host control architectures is maintained through high-velocity communication mechanisms native to the drive infrastructure. Deterministic network topologies, including integrated EtherNet/IP configurations, interface directly with the backplane to achieve coordinated drive control cycles. Real-time parameters map smoothly to the master PLC memory array without processing delays, while firmware flash compatibility guarantees consistent sync behavior across complex multi-axis deployments.

Package Inventory

• 1 x 20F1ANC140JA0NNNNN AC Drive

• 1 x User Installation Manual

Field Installation Guidelines

• Mechanical Mounting

  Mount the unit vertically within an enclosure providing adequate volume for forced-air cooling paths.

• Electrical Connection

  Connect the 3-phase 400 VAC supply lines directly to the designated input line terminals.

• Wiring Constraints

  Ensure power and control conductors are routed through separate conduit pathways to eliminate electromagnetic interference.

• Signal Isolation

  Verify the internal CM jumper remains properly seated or removed based on the specific factory grounding configuration.

Engineering Support and Verification

• Is this drive configuration hot-swappable?

  No, this power conversion device cannot be serviced while energized. All input voltage lines must be isolated and verified de-energized before handling.

• What is the response latency for local logic execution?

  The drive architecture processes core runtime routines in synchronization with the internal master clock cycle, aligning data directly with backplane communication velocities.

• How does firmware flash compatibility affect operation?

  Firmware updates must align with the primary processor hardware revision to ensure complete parameters map correctly without data corruption.

• Can this unit run on common DC bus systems?

  No, this unit is configured for AC input with precharge and lacks external DC terminal connections for shared bus layouts.

• What is the function of the CM jumper?

  The common mode jumper modifies the internal filter configuration to match grounded or ungrounded distribution networks.

• How is excessive heat managed in Frame 6 enclosures?

  The integrated forced-air fan system drives air across the internal heatsink profiles to maintain components below safe thermal thresholds.

• What happens during a standard power-up sequence?

  The input precharge circuit limits high inrush current, protecting the main internal capacitor bank from rapid voltage steps.

• Does this model include internal dynamic braking resistors?

  The unit contains an internal dynamic braking transistor, but the actual braking resistors must be sized and wired externally.
