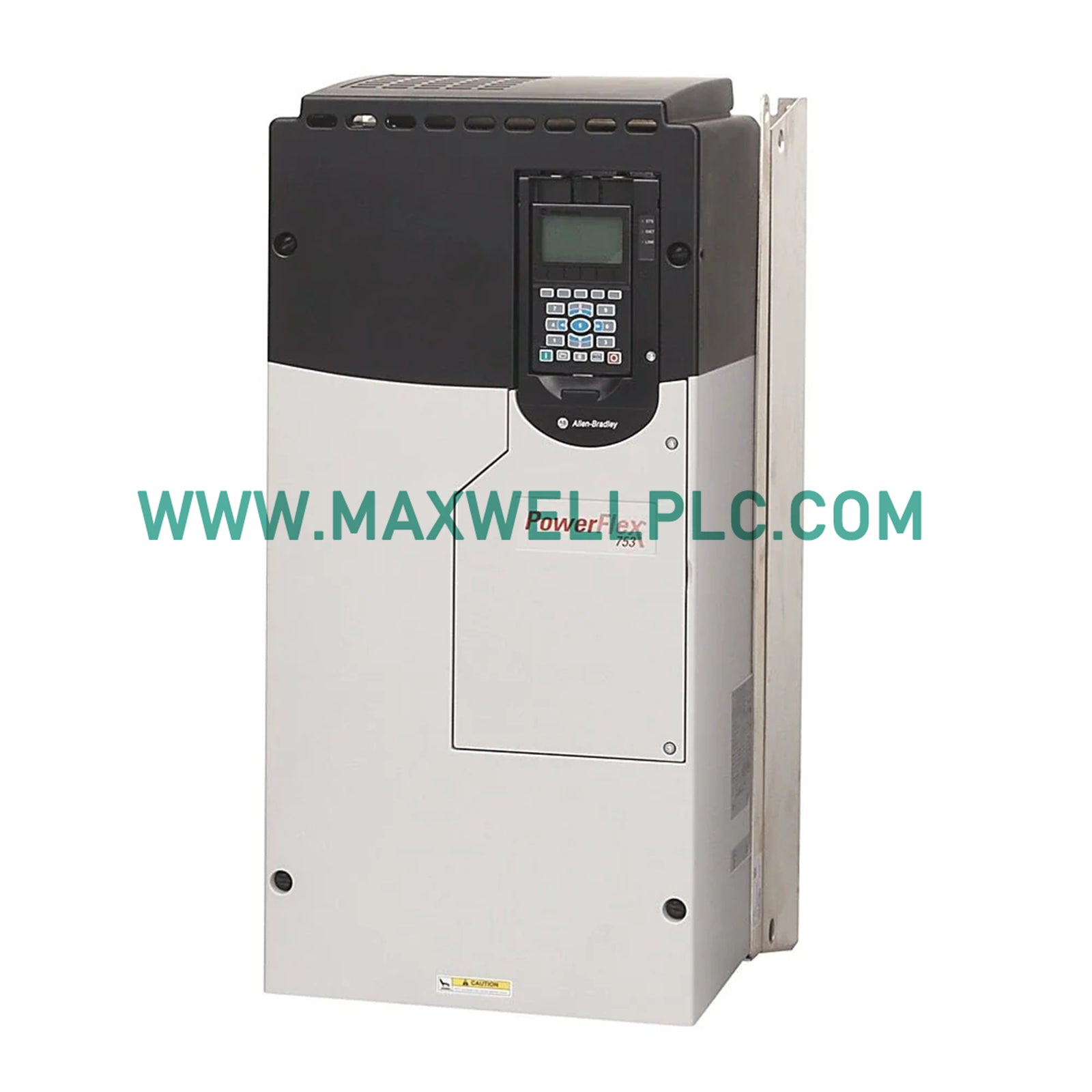

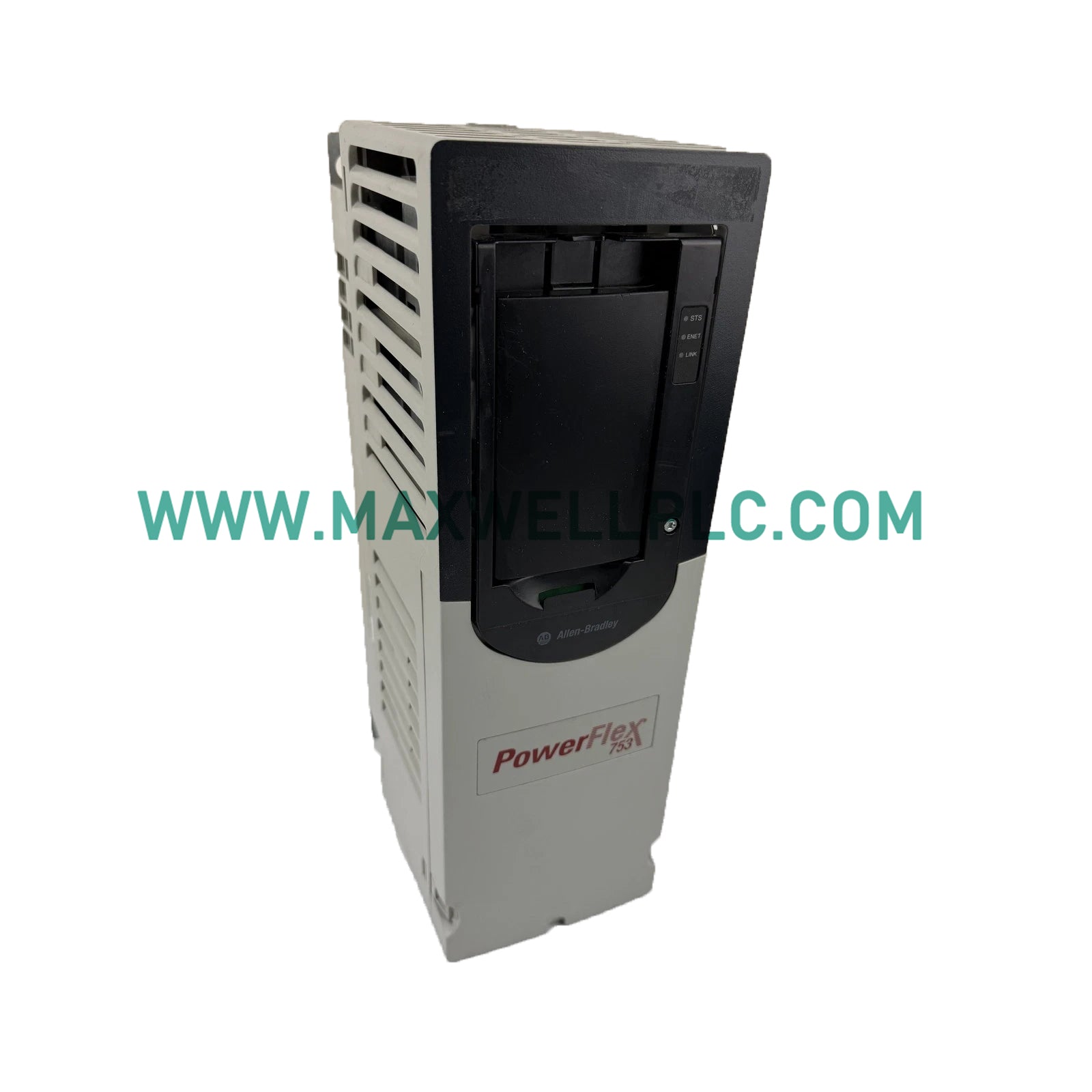

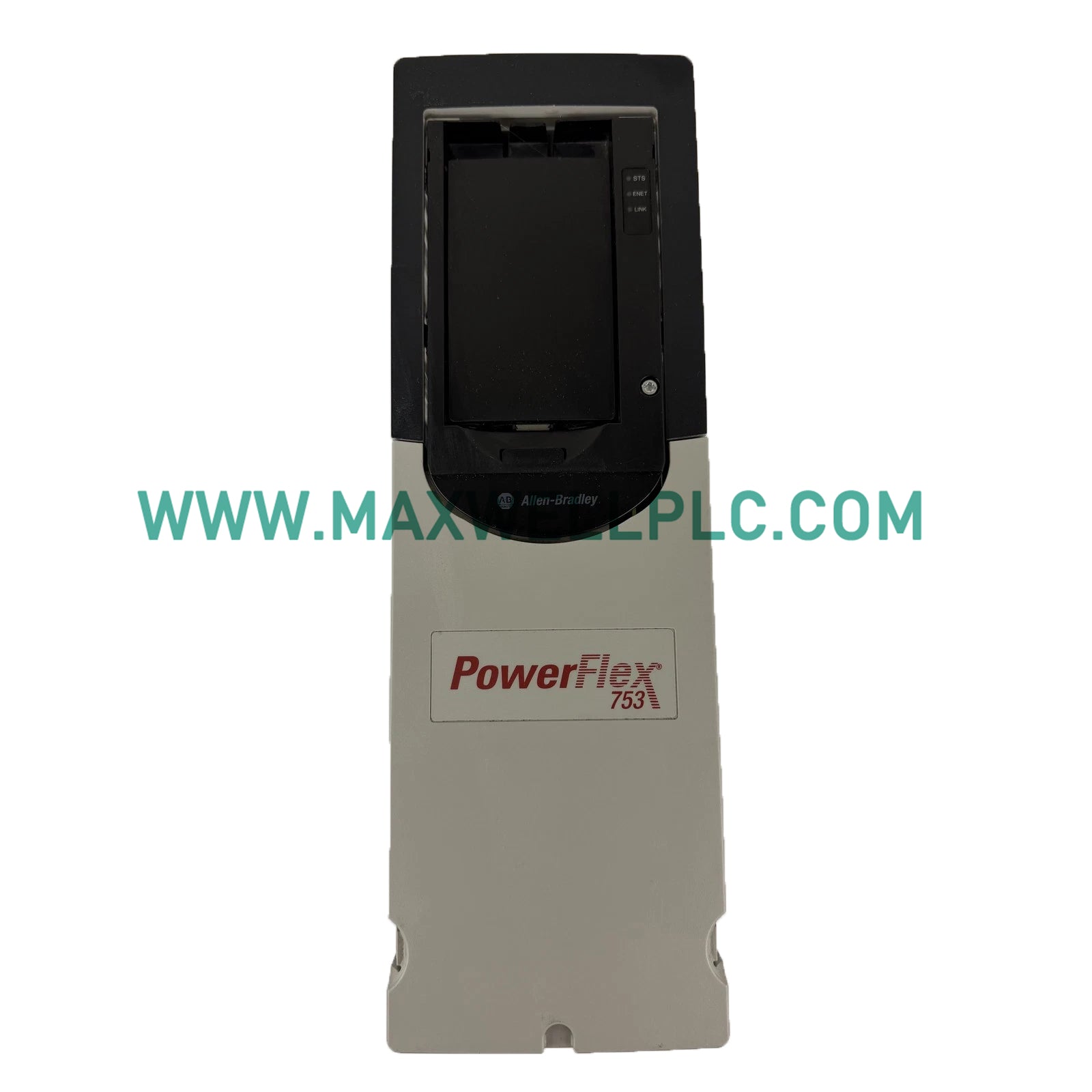

The Allen-Bradley 20F11FC104JA0NNNNN, also cataloged as the PowerFlex 753 AC frequency converter, operates as a dedicated hardware component for variable frequency motor speed and torque control within EtherNet/IP deterministic networks.

Built-in Hardware Matrix Statement

This asset constitutes a single integrated power conversion module specified under catalog identifier 20F11FC104JA0NNNNN. Based on engineering directives for this hardware category, the full alphanumeric model string represents a fixed factory assembly configuration containing definite parameters for filtration, mechanical cooling layout, frame dimensions, and internal braking electronics that must be operated as a non-divisible technical unit.

Hardware Parameter Table

Deterministic Network Integration

The internal processing architecture is designed to sustain continuous communication synchronization over EtherNet/IP deterministic networks. The drive firmware supports active parameter mapping to control registers without degrading backplane bus communication velocity licenses. This ensures high-speed I/O density scaling when exchanging torque, velocity, and diagnostic words with Logix-based automation controllers while adhering to established firmware flash compatibility matrices.

Delivery Components

• 1 Allen-Bradley 20F11FC104JA0NNNNN AC Drive

• 1 Flange Mounting Gasket Kit

• 1 Factory Installed CM Jumper Reference Sheet

Mechanical Mounting and Wiring Guidelines

Flange Installation

• Secure the Frame 5 chassis into the enclosure cutout, ensuring the NEMA/UL Type 4X/12 rear heatsink extends outside the cabinet.

• Tighten all flange mounting bolts evenly to compress the rear seal gasket and prevent ambient ingress.

Power Termination

• Connect incoming 400 V AC lines or matching 540 V DC bus terminals using distinct routed paths separated from low-voltage I/O lines.

• Ground the device directly from the internal protective ground lug to the enclosure common ground plane using low-impedance conductors.

Technical Engineering FAQ

• What is the safe temperature threshold for standard operation?

  The drive functions within nominal parameters across an environmental ambient range of 0 to 50 deg C.

• Is hot-swapping option cards permitted while the system is powered?

  No, hot-swap operations are fully unsupported; all main input voltages and auxiliary control power must be isolated first.

• What are the specific power capacities under different load conditions?

  The unit outputs 104 Amps, corresponding to 55 kW Normal Duty or 45 kW HD operation.

• What integrated braking components are built into this module?

  An internal dynamic braking (DB) transistor is factory-installed, but external dynamic resistors must be added separately.

• What type of human interface option is integrated into the front chassis?

  This configuration features a HIM Blank cover plate, meaning no integrated Human Interface Module is present.

• What physical constraints apply to installation spaces and freight calculation?

  The drive weighs 8 kg and requires a physical outline volume of 21 x 59.5 x 17 cm.

• What input circuit design is utilized for the primary power stage?

  The power circuitry features an AC & DC input line structure complete with precharge components and DC terminals.

• What is the default condition of the internal common mode capacitor configuration?

  The drive is delivered with the internal CM jumper fully installed, matching grounded power system layouts.
