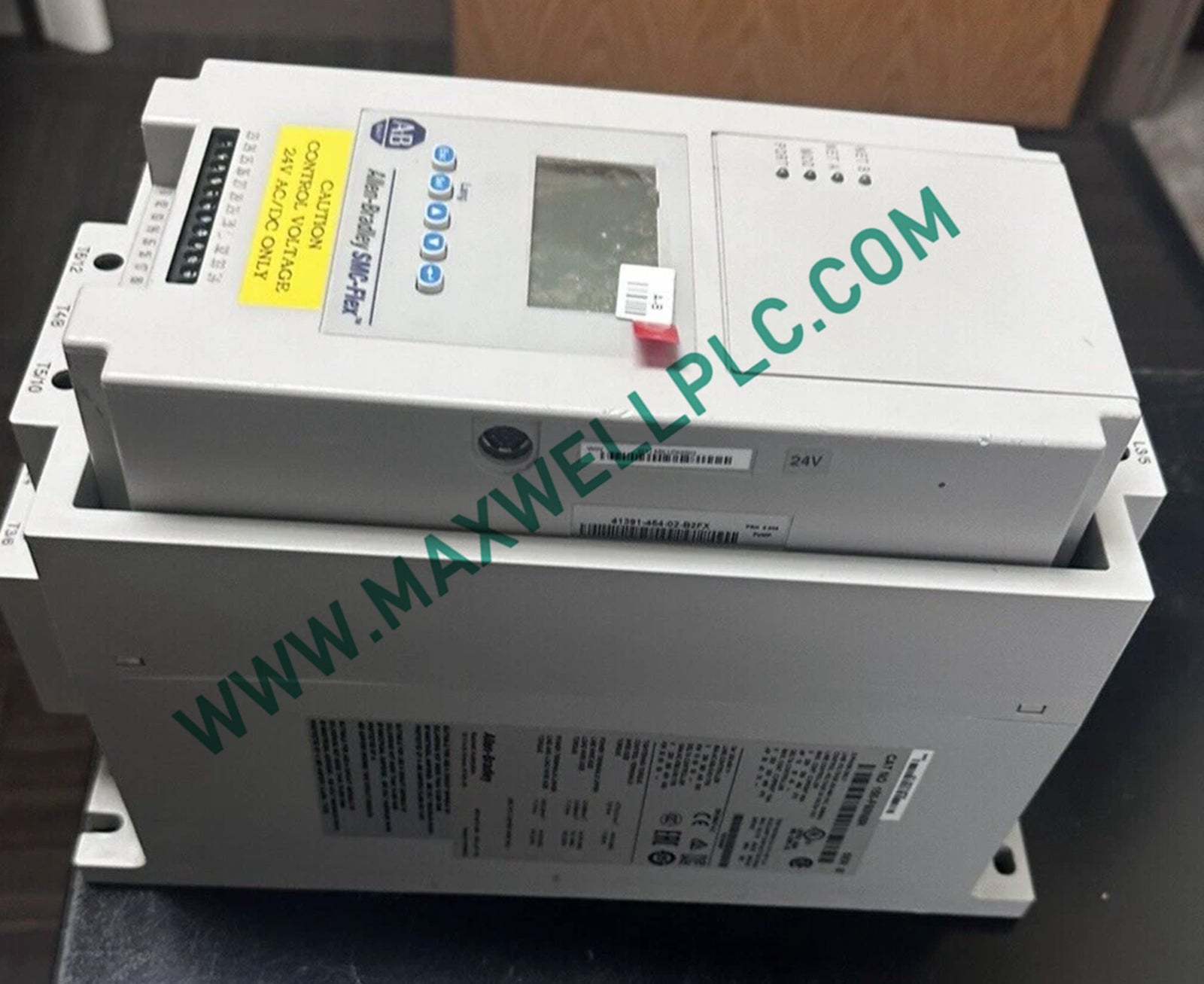

Configured for solid-state motor starting and acceleration control in industrial drive systems, the Allen-Bradley 150-F480NBDB (150F480NBDB SMART MOTOR CONTROLLER) provides direct physical/electrical execution.

Nomenclature Breakdown & Identifier Configuration

• Base model designation: 150-F480NBDB
• Current rating class: 480 A operational capacity
• Input voltage range: 200...480 V AC, 3-phase, 50/60Hz
• Control circuit voltage: 100...240 V AC supply
• Integrated functionality: Pump control option enabled

Hardware Specifications

Drive Backplane Communication & Firmware Architecture

The controller processes backplane bus communication velocity metrics to maintain precise synchronization across industrial drive nodes. Profinet and EtherNet/IP deterministic networks integrate seamlessly with internal register maps via firmware flash compatibility protocols. Input and output density scaling parameters adjust dynamically to accommodate variable motor load profiles without sacrificing bus transmission integrity.

Ordering Information

• 1 x 150-F480NBDB Smart Motor Controller hardware assembly
• 1 x Integrated control terminal block connector set

Physical Installation & Electrical Wiring Guidelines

• Mount the open-style solid-state controller vertically inside a ventilated industrial enclosure, leaving adequate clearance above and below the chassis for thermal dissipation.
• Connect the 3-phase input lines directly to the main power terminals while verifying that incoming supply voltage matches the 200...480 V AC operational window.
• Terminate the separate 100...240 V AC control power source to the designated low-voltage terminals, ensuring physical separation from high-current motor cables.
• Torque all power and grounding fasteners to manufacturer-specified limits to prevent localized heating and maintain low-impedance earth continuity.

Frequently Asked Questions

• Q: Does this solid-state controller support live hot-swapping under active motor load conditions?
• A: No, hot-swapping is strictly prohibited. All primary line and control power must be completely locked out and verified dead before performing physical maintenance.
• Q: What is the primary function of the integrated pump control option on this model?
• A: The pump control algorithm dampens fluid pressure surges and eliminates hydraulic water hammer effects during motor start and stop sequences.
• Q: Can this unit operate on single-phase industrial power systems?
• A: No, the controller requires a balanced 3-phase 50/60Hz input line voltage configuration ranging from 200 to 480 V AC.
• Q: What is the specified control voltage requirement for the internal logic circuitry?
• A: The control circuit requires an external supply voltage ranging between 100 and 240 V AC.
• Q: How are internal semiconductor firing states cooled during extended motor acceleration?
• A: Thermal energy is dissipated through natural convection across the integrated heatsink profile, requiring adequate ambient airflow inside the enclosure.
• Q: What maximum motor horsepower does this specific controller configuration support?
• A: The unit supports a maximum power rating of 400 hp when operating at a nominal line voltage of 460 V AC.
• Q: Are firmware updates compatible with standard Allen-Bradley programming tools?
• A: Yes, firmware flash compatibility allows version updates using authorized configuration software connected through the internal communication port.
• Q: What physical environmental limits apply to the open-type enclosure design?
• A: The controller must be housed within a protective cabinet rated for the specific industrial environment, maintaining an ambient temperature range of 0 deg C to +50 deg C.
