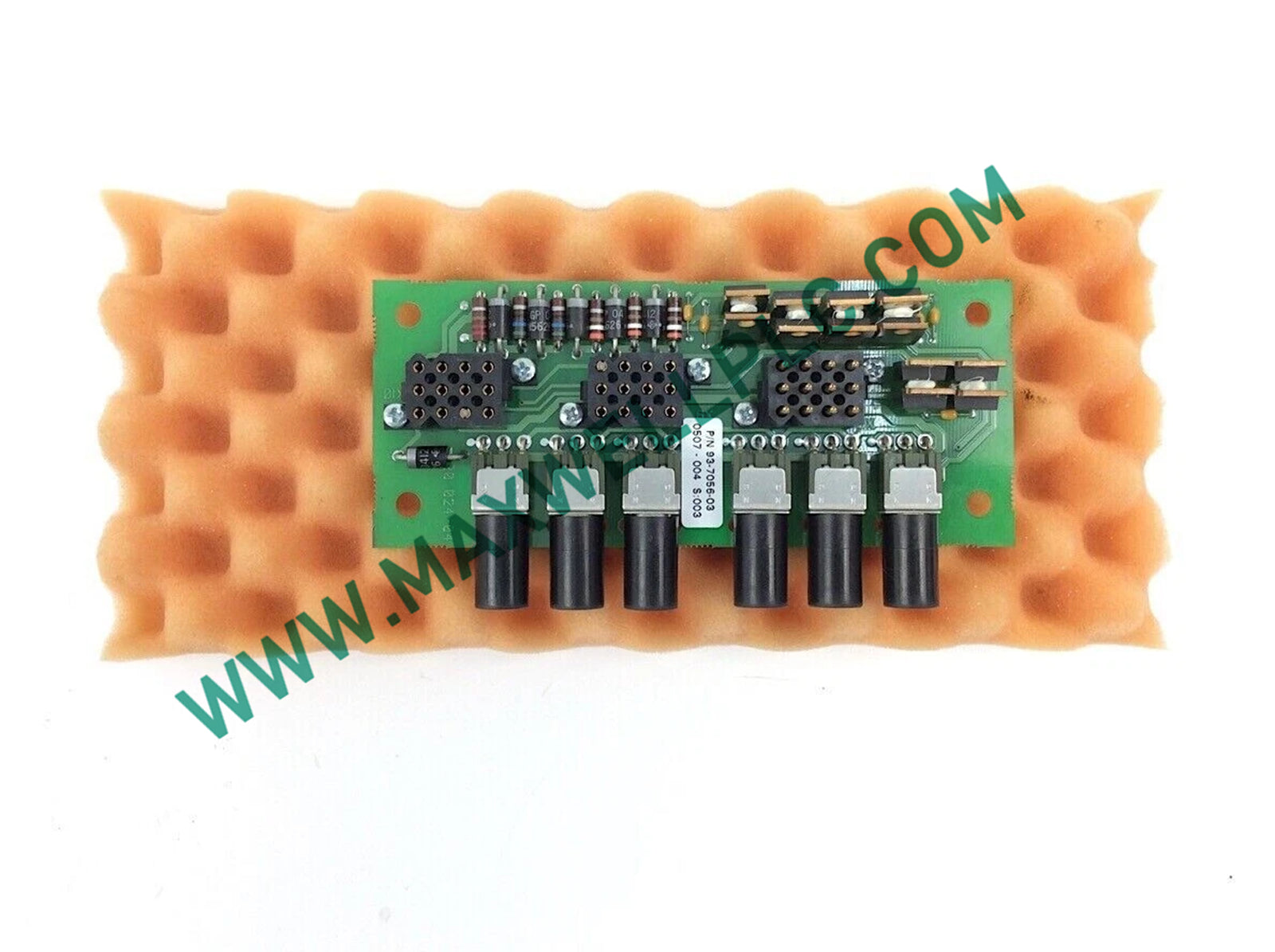

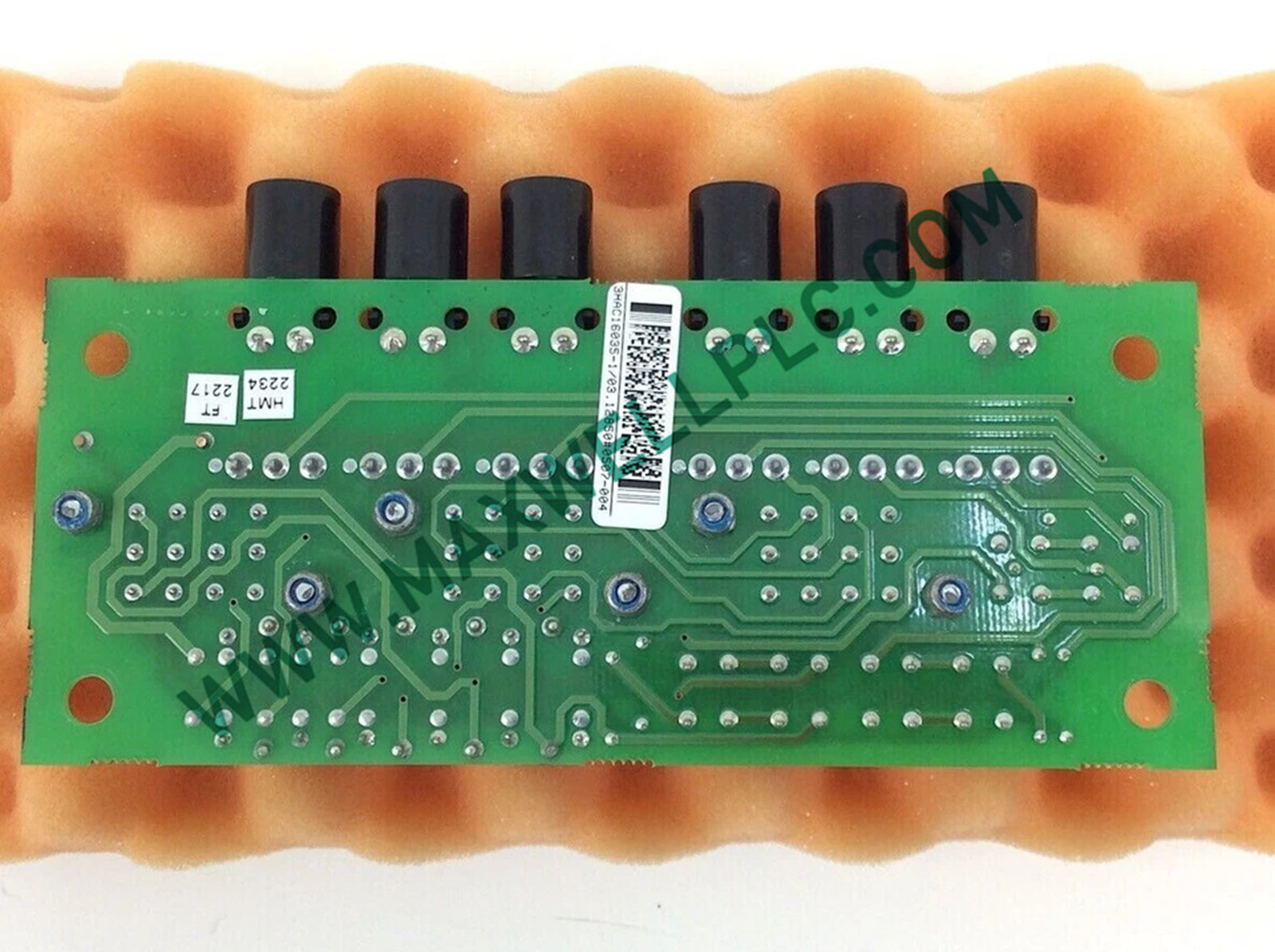

ABB 3HAC16035-1 DSQC 563 Series Brake Release Board
-
Dimensions: 14.8 x 7.6 x 2.2 cm
-
Country of origin: Sweden
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
The ABB 3HAC16035-1, also cataloged as the DSQC 563 Brake Release Board, operates as a dedicated hardware component for manual and automatic mechanical brake actuation signals within ABB robotic drive control systems.
Identification & Designation Matrix
-
Primary Part Number: 3HAC16035-1
-
Alternative Part Identifier: 3HAC160351
-
System Board Designation: DSQC 563
-
Hardware Classification: PC Board / Brake Release Circuit
Technical Specifications & Operating Parameters
| Parameter | Specification |
| Model | 3HAC16035-1 / DSQC 563 |
| Brand | ABB |
| Origin | Sweden |
| Weight | 0.14 kg |
| Shipping Dimensions | 14.8 x 7.6 x 2.2 cm |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | Passive Printed Circuit Assembly |
| System Interface | Robot Controller Backplane / Drive Bus |
| Functional Execution | Mechanical Brake Release Control |
I/O Density & Deterministic Control Execution
The 3HAC16035-1 (DSQC 563) routes high-speed actuation pulses to release holding brakes on robotic axis motors. Maintaining predictable backplane bus communication velocity across the controller safety interface guarantees deterministic signal timing, preserving firmware flash compatibility between drive units and main safety boards.
Delivery Package Details
-
1 x ABB 3HAC16035-1 (DSQC 563) Brake Release Board
-
1 x Static-Shielded Packaging Unit
Physical Mounting & Wiring Guidelines
-
Power Isolation: Ensure all main power and backup battery feeds to the robot controller are de-energized prior to handling the PC board.
-
ESD Precautions: Ground wrist straps to the cabinet enclosure ground terminal to prevent electrostatic discharge damage to surface-mount components.
-
Mechanical Seating: Fasten board standoffs securely to eliminate vibration stress on backplane pin headers inside the controller rack.
Frequently Asked Questions
-
Q: What is the primary functional role of the 3HAC16035-1 board?
The board routes electrical signals to release holding brakes on servo motor axes inside the robot system.
-
Q: What alternative catalog code corresponds to the 3HAC16035-1 model?
The official system designation code for this printed circuit board assembly is DSQC 563.
-
Q: Does the 3HAC16035-1 unit require external software configuration?
No, the board acts as a hardware interface component operating directly off controller backplane signals.
-
Q: What are the physical shipping dimensions of the packaged board?
The physical unit shipping size measures approximately 14.8 x 7.6 x 2.2 cm.
-
Q: What precautions should be taken regarding electrostatic discharge during installation?
Installers must wear grounded ESD wrist straps and handle the board strictly by its unpopulated board edges.
-
Q: Does the 3HAC16035-1 board consume internal logic power during idle states?
The board functions as a passive interface circuit and draws minimal quiescent power from the backplane bus.
-
Q: Can the board be installed while the controller rack is energized?
No, hot-swapping is not supported; main system power must be isolated prior to hardware installation.
-
Q: What is the net shipping weight of the 3HAC16035-1 assembly?
The board unit has a net weight of 0.14 kg.
