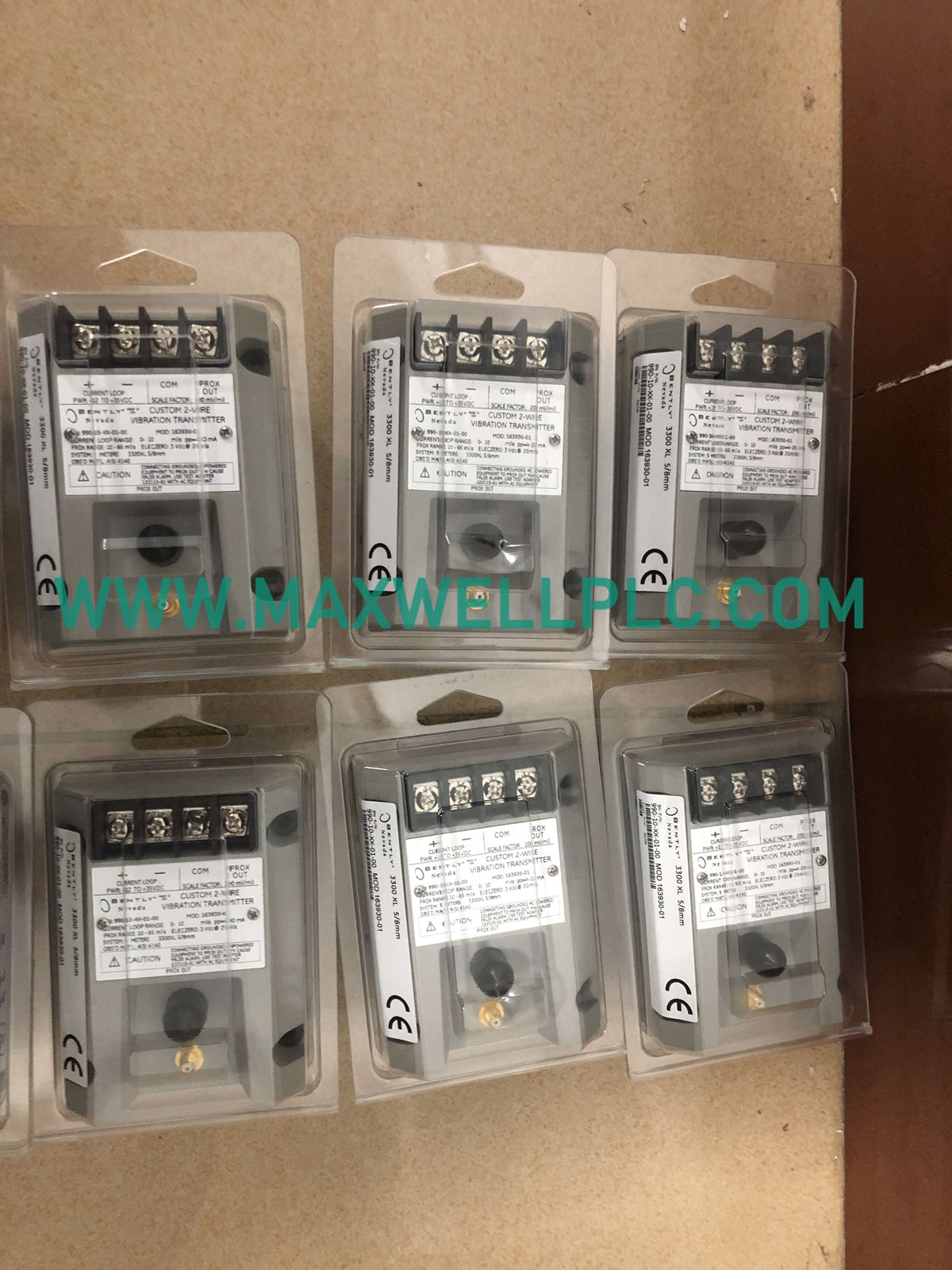

The Bently Nevada 990-10-XX-01-05 MOD:165353-01, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for converting vibration probe signals into conditioned monitoring outputs within Bently Nevada machinery protection systems.

Configuration Details

The 990-10-XX-01-05 configuration defines a 990 Series vibration transmitter with a 0-10 mils peak-to-peak full-scale range, selectable system cable length options, DIN rail mounting, and hazardous area approval options. The device requires a +12 to +35 VDC input supply at the transmitter terminal.

Hardware Specifications

Mechanical Signal Conditioning and TSI Interface

The 990 Series transmitter processes vibration signals from compatible proximity measurement systems and converts mechanical vibration displacement data into electrical monitoring signals. The transmitter configuration supports machinery vibration measurement loops where signal scaling and output conditioning are required.

The Bently Nevada monitoring architecture uses calibrated probe sensitivity and gap voltage validation methods to maintain measurement consistency. Eddy-current probe scaling parameters must match the connected probe system to maintain correct vibration amplitude conversion. Proper probe gap adjustment and -10 VDC target gap voltage validation are required when commissioning compatible proximity measurement circuits.

Rotor Dynamics Signal Handling

The 990 transmitter provides signal conditioning for vibration measurements associated with rotating machinery monitoring. Installation practices must maintain separation between vibration signal wiring and high-current power conductors to reduce electrical interference.

The transmitter wiring arrangement supports continuous vibration data transmission from the sensing element to the monitoring interface. Shield termination and grounding practices must follow the system installation requirements to minimize signal noise and cross-talk effects.

Ordering Information

• 1 x Bently Nevada 990-10-XX-01-05 MOD:165353-01 Vibration Transmitter
• 1 x 990 Series transmitter housing with configured vibration measurement electronics
• 1 x 35 mm DIN rail mounting clip assembly
• 1 x Configured approval option set for CSA Division 2, ATEX Zone 0, ATEX Zone 2 and ABS maritime approval

Field Installation Guidelines

Mechanical Mounting

• Install the transmitter on a compatible 35 mm DIN rail mounting surface.
• Confirm that the enclosure location meets the required hazardous area installation classification.
• Maintain sufficient clearance for field wiring access and terminal inspection.

Electrical Connection

• Supply the transmitter through a +12 to +35 VDC power source connected at the transmitter terminal.
• Route vibration signal cables separately from high-voltage switching conductors.
• Connect cable shielding according to the grounding practice of the monitoring system.

Commissioning Check

• Verify vibration probe compatibility before operation.
• Confirm probe scaling parameters match the connected sensing circuit.
• Validate signal polarity and output response during startup testing.

Technical Questions and Answers

• What vibration range does the 990-10-XX-01-05 support?

  The transmitter supports a full-scale vibration range of 0-10 mils peak-to-peak, equivalent to 0-250 um peak-to-peak.

• What power supply does this transmitter require?

  The unit requires a +12 to +35 VDC input supply connected directly at the transmitter terminal.

• Which mounting method is included with this model?

  This configuration includes 35 mm DIN rail clips for mechanical installation.

• What cable lengths are supported by this configuration?

  The 990 Series configuration supports system lengths of 5.0 meters and 7.0 meters depending on the selected option.

• Does this model include hazardous area approvals?

  This configuration includes CSA Division 2, ATEX Zone 0, ATEX Zone 2 and ABS maritime approval options.

• Can the transmitter be installed without probe scaling verification?

  Probe scaling verification is required to ensure the vibration conversion matches the connected proximity measurement system.

• What wiring practice is recommended for vibration signal cables?

  Signal cables should be separated from high-current wiring, and shielding should follow the monitoring system grounding requirements.

• Does this transmitter provide direct vibration measurement output?

  The unit conditions vibration signals from compatible sensing systems and provides an electrical output for machinery monitoring circuits.
