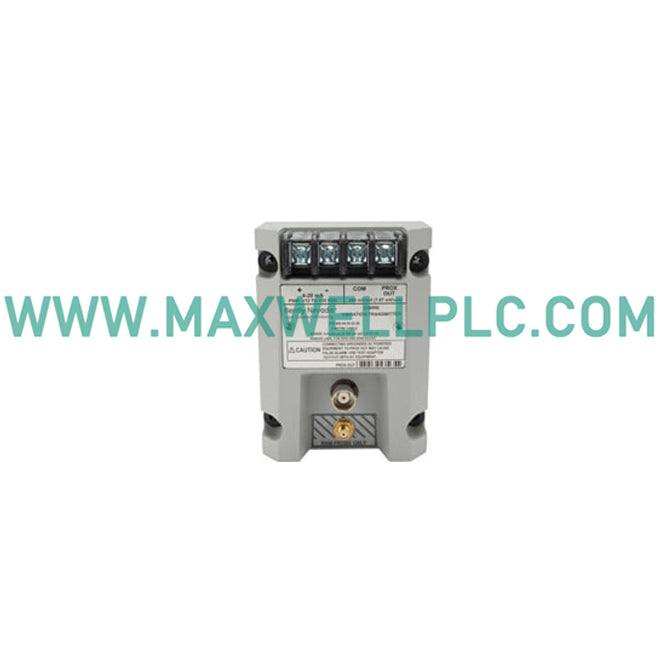

Configured for continuous monitoring of shaft vibration in industrial rotating machinery, the Bently Nevada 990-04-XX-01-01 (990 Vibration Transmitter) provides direct physical/electrical execution. This integrated transducer system conditions the high-frequency carrier signal from the probe and converts it into a proportional 4-20 mA output signal. The unit performs signal processing locally, enabling direct interface with PLC or DCS platforms for simplified machinery protection and diagnostic applications.

Suffix Breakdown

• 990: 990 Vibration Transmitter model.

• 04: Full-scale range option (0-4 mils peak-to-peak).

• XX: System length (customer configurable).

• 01: Mounting option (35 mm DIN rail clips).

• 01: Agency approval option (CSA Division 2).

Hardware Specifications

Mechanical Monitoring and Signal Dynamics

The 990 series transmitter utilizes eddy-current probe scaling calibrated for standard AISI 4140 steel targets. Accurate vibration measurement requires gap voltage validation (-10 VDC nominal target) to ensure the transducer is centered within its linear range. Consistent rotor dynamics monitoring is maintained by the transmitter's internal signal processing, which converts displacement data into a scaled current output. Cross-talk suppression is achieved by following established separation requirements for adjacent probes, minimizing magnetic field interference and ensuring high-fidelity vibration data during operation.

Ordering Info

• 1 990-04-XX-01-01 Vibration Transmitter module

• 1 DIN rail mounting assembly

• 1 Technical installation and setup manual

Field Installation Guidelines

• Mounting and Enclosure

• Secure the unit to a 35 mm DIN rail within a clean, dry, and grounded metallic enclosure.

• Ensure the enclosure is physically isolated from sources of high-frequency vibration or extreme electromagnetic interference.

• Wiring and Grounding

• Connect the 4-20 mA output to the instrumentation loop using shielded twisted-pair cabling.

• Terminate the shield at the instrumentation end to a clean signal common; do not ground the shield at the transmitter end to avoid ground loop currents.

• Verify that the probe cable connector is tightened and sealed to prevent moisture ingress.

Frequently Asked Questions

• Does the transmitter support loop-powered operation?

  Yes, the 990 transmitter is designed to operate on a 4-20 mA current loop, with power supplied directly by the control system loop power supply.

• What is the response time for the 4-20 mA output?

  The transmitter provides a standard response time defined by its internal filter settings, typically sufficient for 10 kHz vibration tracking applications.

• Can the range be modified after installation?

  The range is defined by the model suffix (04 for 0-4 mils). Hardware range changes require replacing the unit with the appropriate model configuration.

• What happens if the probe becomes disconnected?

  The transmitter circuitry is designed to drive the output to a fault condition (typically < 3.6 mA or > 21 mA) to indicate a sensor fault to the DCS/PLC.

• Is the 990 transmitter compatible with other probe types?

  No, the 990 is calibrated for use with specific Bently Nevada 990-series eddy-current probes; utilizing non-specified transducers will result in inaccurate readings.

• How is the internal calibration verified?

  Field verification can be performed using a signal generator to simulate the probe input and measuring the resulting 4-20 mA output current.

• Does this device support HART communication?

  No, the 990 series transmitter is an analog-only device and does not support digital protocol communication or HART modulation.

• What is the purpose of the CSA Division 2 approval?

  This certification signifies that the device is approved for operation in hazardous locations classified as Class I, Division 2, where flammable gases may be present.
