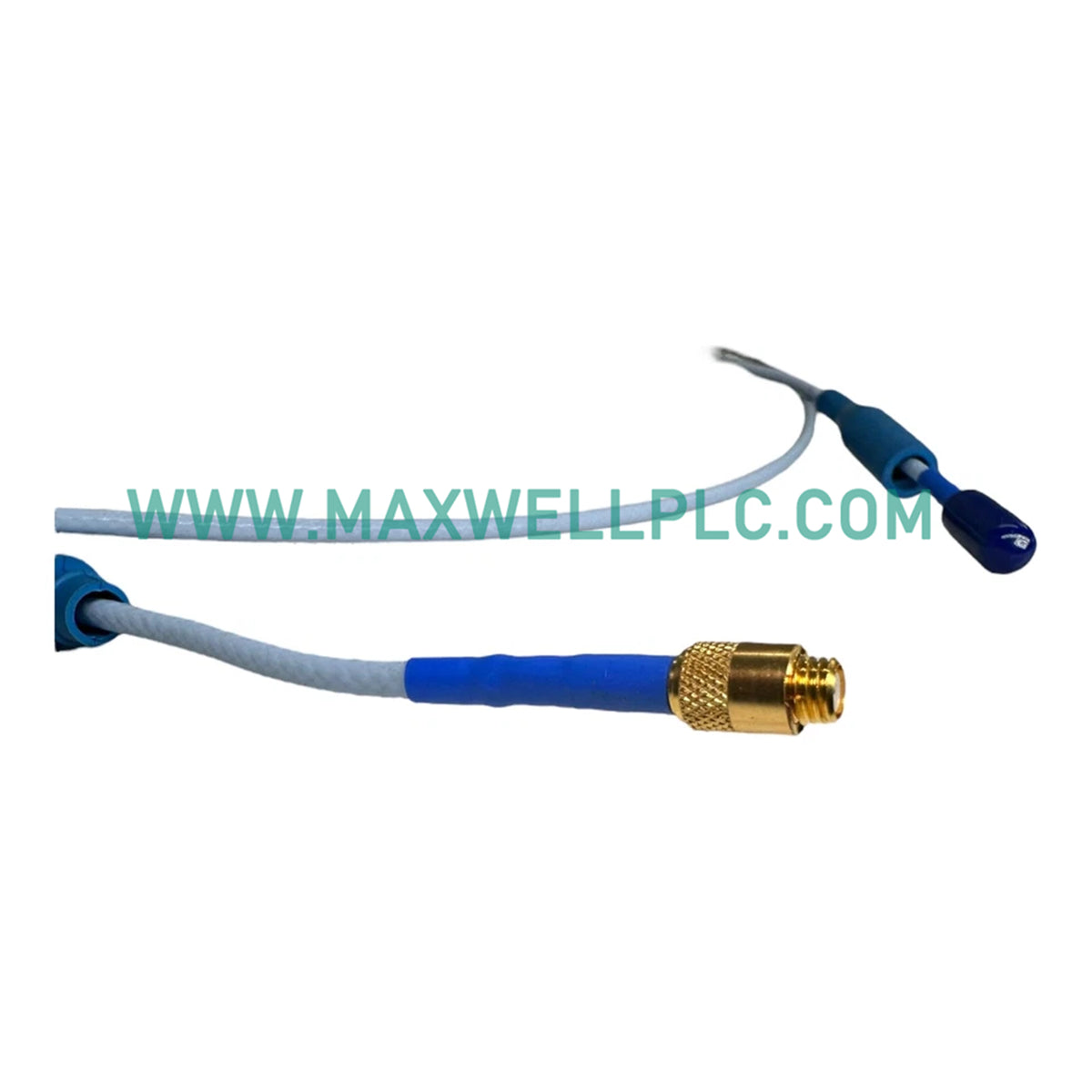

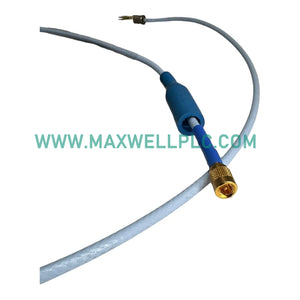

Configured for low-frequency vibration signal transmission across machinery monitoring architectures, the Bently Nevada 9571-99, also cataloged as the 9571-99 Standard Interconnect Cable, operates as a dedicated hardware component for signal routing between sensors and monitoring systems.

Configuration Matrix & Suffix Overview

• Base Model Code: 9571 (Standard interconnect cable designation)
• Length Suffix: 99 (99 ft / 30.0 m total physical conductor length)
• Conductor Configuration: 2-conductor twisted pair with overall shield
• Terminal Architecture: Moisture-resistant female connector at sensor end and ring lugs at monitor end

Hardware Specifications Table

Rotor Dynamics and Signal Transmission Integrity

The cable assembly establishes a low-noise electrical path required for absolute vibration and velocity transducers operating in demanding industrial environments. Proper shielding and twisted-pair construction ensure cross-talk suppression and immunity against electromagnetic interference along long signal runs. While monitoring casing and bearing housing vibration, maintaining signal fidelity prevents distortion during low-frequency velocity tracking, ensuring accurate correlation with rotor dynamics parameters.

Standard Delivery Content Manifest

• 1 x 99 ft (30.0 m) Standard Interconnect Cable Assembly
• 1 x Integrated Moisture-Resistant Female Sensor Connector
• 1 x Set of Terminal Ring Lugs for Monitor Termination

Mechanical Installation and Routing Guidelines

• Visual Inspection: Check the entire 99-foot cable length for physical cuts, tight kinks, or insulation abrasion before pulling through conduits.
• Connector Cleanliness: Verify that the 2-socket female connector and terminal lugs remain free of moisture, oil, and corrosion prior to mating.
• Conduit Separation: Route the interconnect cable through dedicated instrument trays, maintaining strict separation from high-voltage power lines.
• Strain Relief: Fasten the cable securely near termination points to prevent continuous mechanical vibration from fatiguing the connector pins.

Frequently Asked Questions and Technical Responses

• What exact physical length is designated by the 99 suffix code?

  The 99 suffix denotes an overall physical cable length of 99 feet or 30.0 meters.

• What wire gauge size is utilized for the internal conductors?

  The internal conductors consist of 22 AWG wire with a cross-sectional area of 0.382 mm2.

• What type of insulation material is applied to the cable core?

  The conductors utilize Tefzel insulation paired with an overall protective shielding layer.

• Can this cable be utilized in hazardous classified areas?

  No, due to system capacitance constraints, this interconnection setup is unapproved for hazardous environments.

• What type of connector is factory-fitted at the transducer end?

  The transducer end features a moisture-resistant female connector designed for 2-pin MIL-C-5015 style plugs.

• How is the monitor end of the cable prepared for termination?

  The monitor end is fitted with terminal ring lugs designed for direct attachment to monitoring rack terminals.

• What is the continuous operating temperature range limit?

  The cable operates reliably within a thermal range of -29 deg C to +121 deg C (-20 deg F to +250 deg F).

• Is this cable compatible with 21128 velocity transducer housings?

  No, this specific interconnect cable is not engineered for use with 21128 velocity transducer housings.
