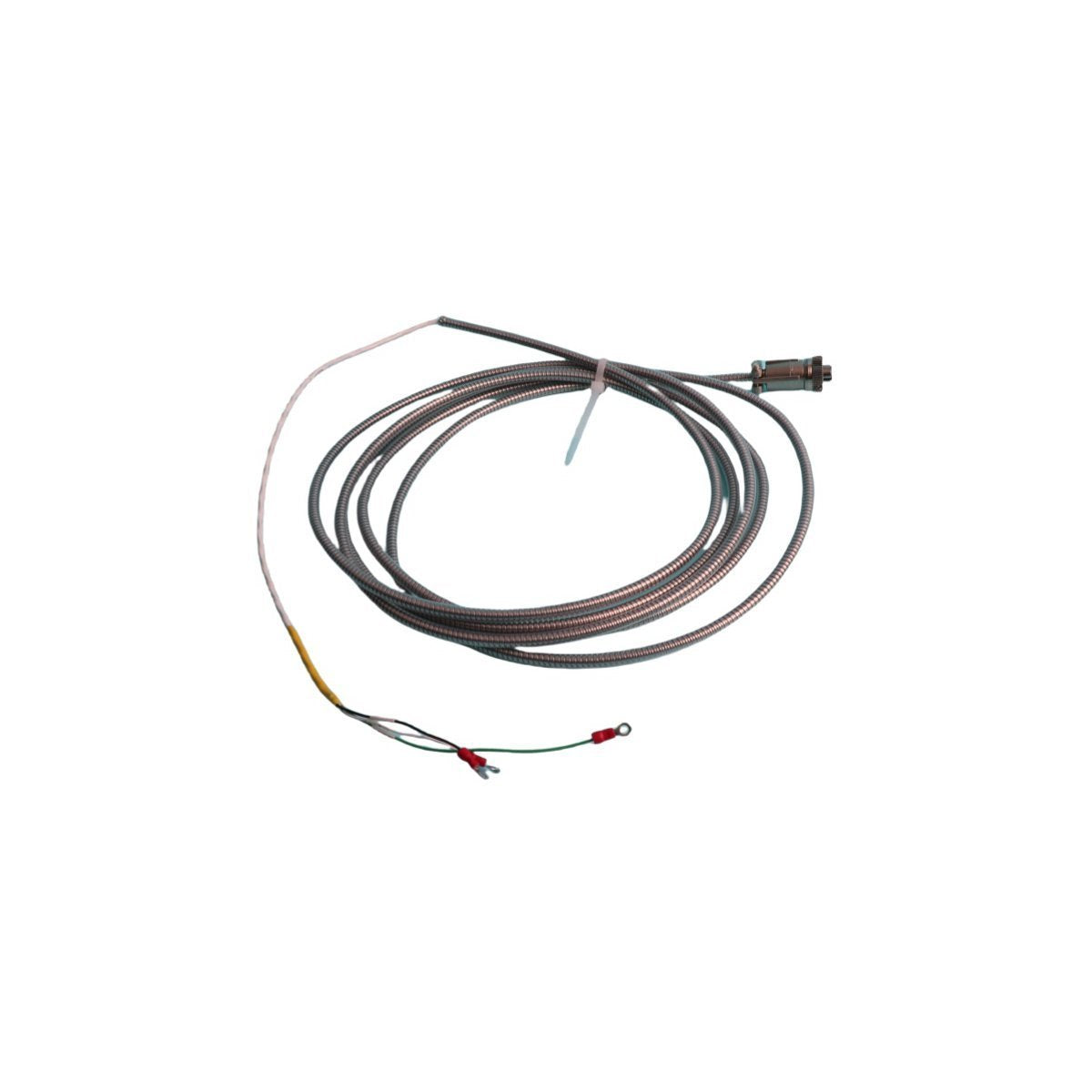

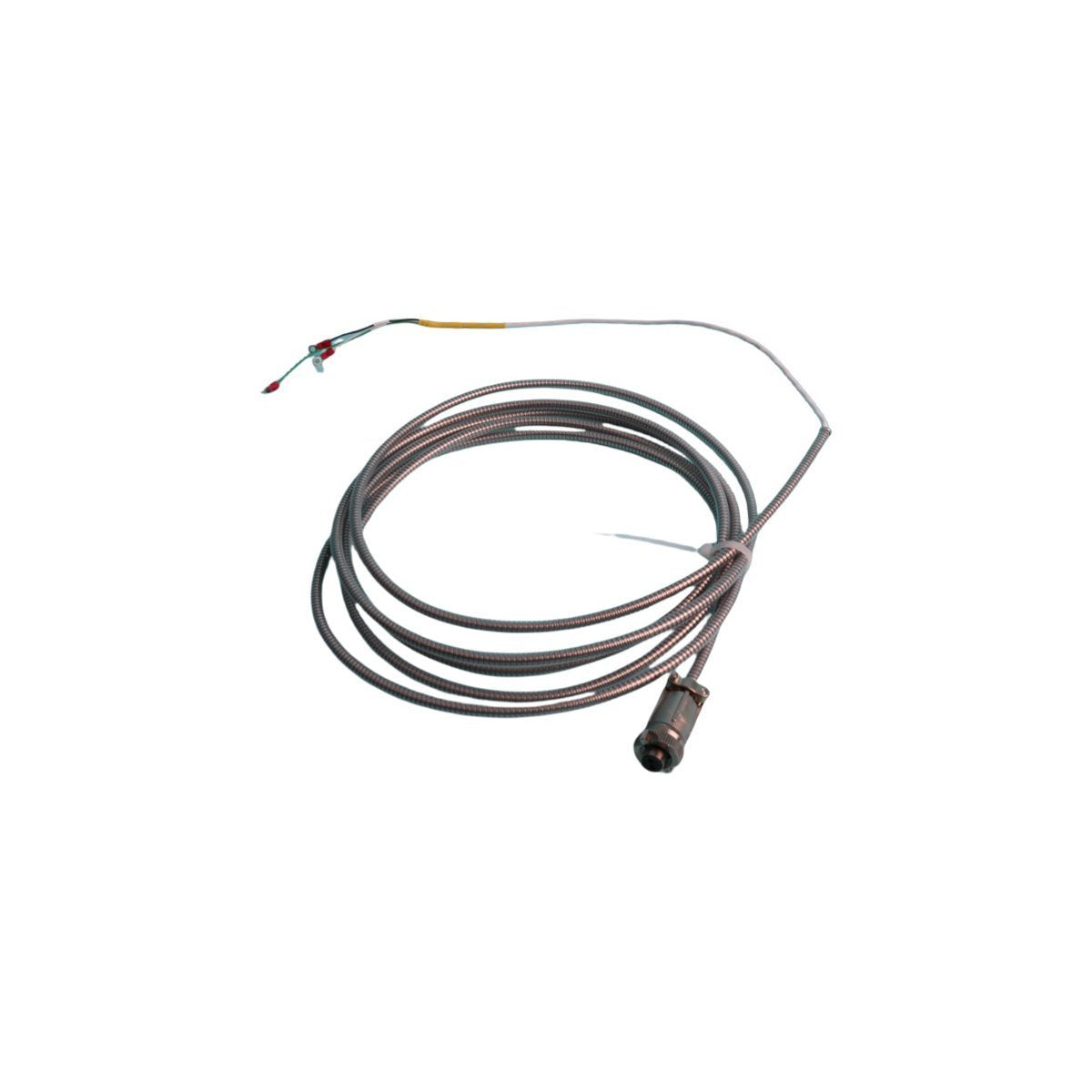

The Bently Nevada 84661-15, also cataloged as the 84661 Velomitor Interconnect Cable, serves as the primary signal transmission component utilized to execute connectivity between Velomitor piezoelectric sensors and machinery monitoring platforms.

Model Configuration Matrix

The part number specifies the mechanical and physical interface attributes:

• 84661: Velomitor interconnect cable assembly

• 15: Length designation and connector interface configuration

Hardware Specifications

Rotor Dynamics and Signal Transmission

This cable assembly is engineered to maintain high signal integrity for piezoelectric transducer outputs. Because Velomitor sensors produce high-impedance signals, the shielding configuration is critical for cross-talk suppression and the mitigation of electromagnetic interference. Effective signal transmission requires that the cable be routed away from high-current power conductors. Ensuring the integrity of the cable shield is necessary to maintain the signal-to-noise ratio required for accurate rotor dynamics analysis and vibration monitoring within the machine control system.

Ordering Info

• 1 x 84661-15 Velomitor Interconnect Cable

• 2 x Connector terminators (factory-installed)

• 1 x Technical installation and routing manual

Field Installation Guidelines

• Conduit Routing: Use dedicated metallic conduit to provide shielding against external electromagnetic fields.

• Bend Radius: Adhere to a minimum bend radius of 50 mm during installation to prevent damage to the internal conductors.

• Termination: Bond the cable shield to the monitor rack common ground to provide a low-impedance discharge path.

• Environmental Protection: Utilize sealing glands at all conduit entry points to prevent ingress of industrial fluids.

Frequently Asked Questions

• Can the cable length be modified in the field? No, altering the cable length changes its capacitance and electrical impedance, which degrades sensor frequency response.

• Is the cable jacket resistant to oil? The outer insulation is designed to withstand exposure to standard industrial lubricating oils and hydraulic fluids.

• How is shield continuity verified? Use an ohmmeter to verify shield continuity from the sensor connector back to the monitor input termination.

• Can I use this cable for proximity probes? No, this cable is specifically designed for piezoelectric Velomitor transducers, not eddy-current systems.

• What causes signal degradation in this cable? Excessive bending, crushed conduit, or improper termination of the shield will introduce noise into the vibration signal.

• Is the cable hot-swappable? Power must be removed from the monitoring channel before disconnecting the sensor or the cable assembly.

• Can this be used in outdoor installations? Yes, provided the cable is protected by conduit and all connector interfaces are sealed against the elements.

• Why is twisted-pair wiring used? Twisted-pair geometry is employed to minimize common-mode noise, which is essential for accurate low-amplitude vibration signal capture.
