Product Overview

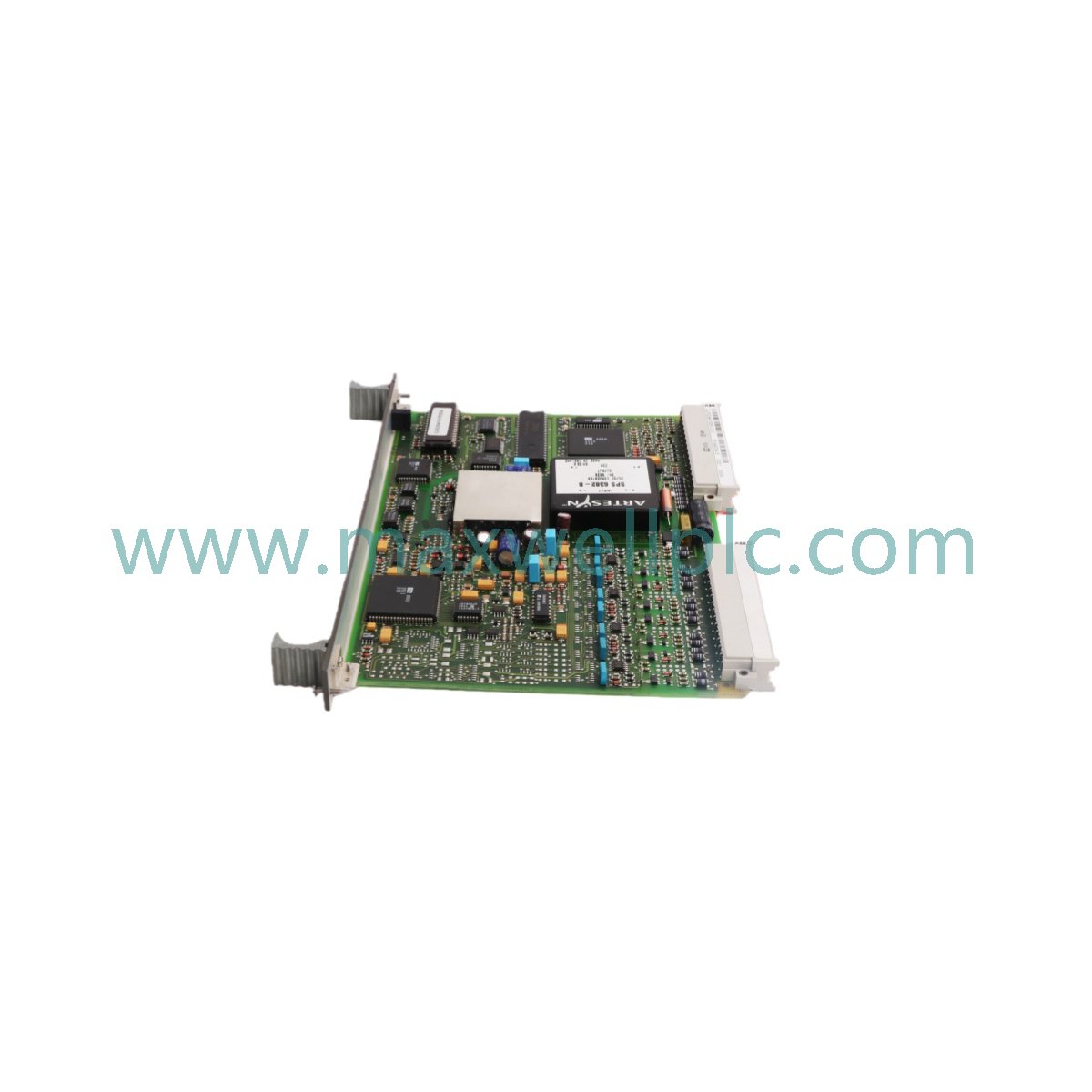

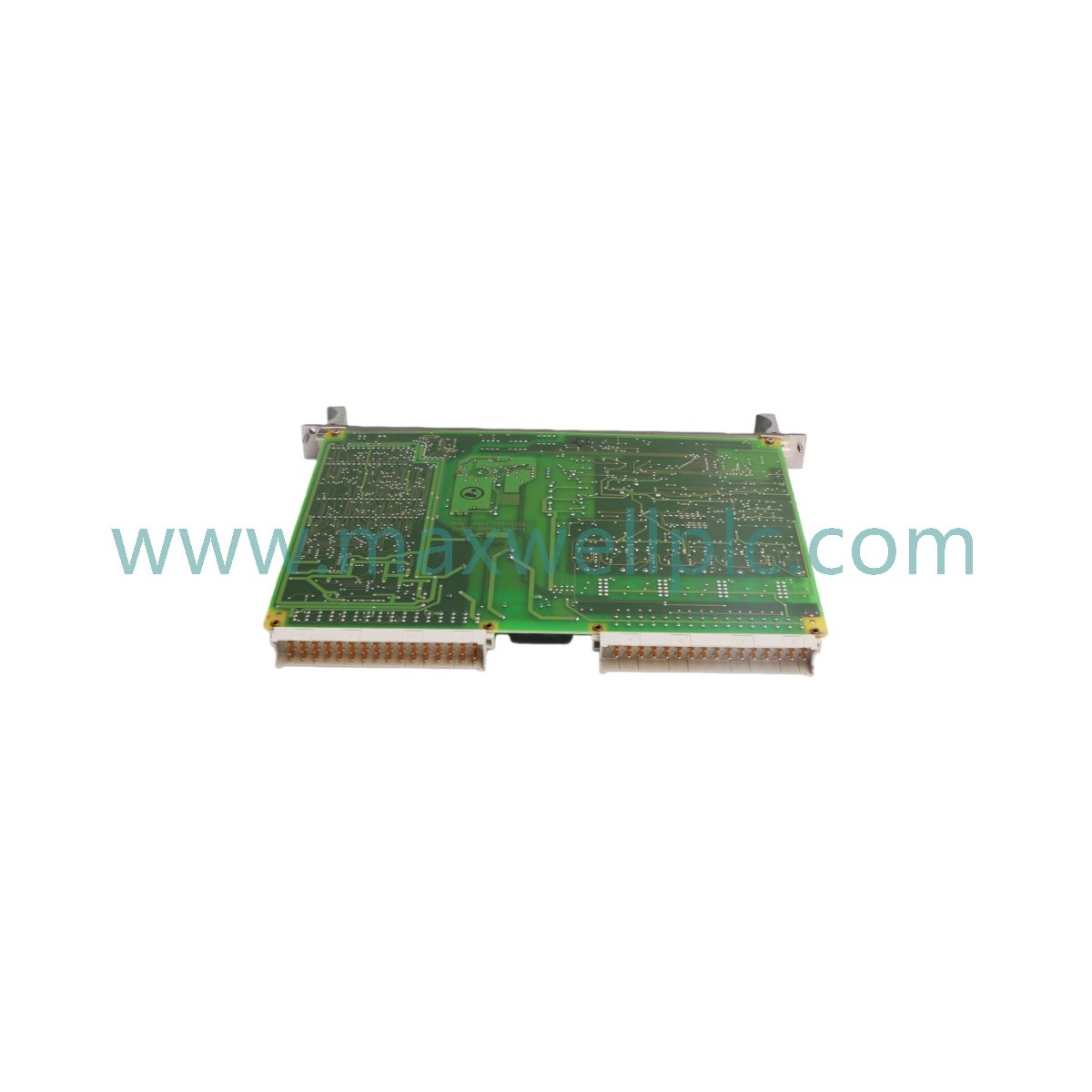

The 81AA03A-E (GJR2394100R1210) Analog Output Module serves as the primary 81AA03A-E Analog Output Module used to execute control or monitoring functions across automation platforms. This hardware component is engineered specifically for the Procontrol P14 distributed control system (DCS), providing precise signal output regulation for industrial actuators and feedback loops. The module interfaces directly with the system's Configuration and Diagnostic System (CDS), enabling real-time status reporting and automatic location identification within the control architecture. This integration ensures that process variables are maintained within defined operational tolerances while facilitating rapid diagnostic analysis during system maintenance.

Technical Specifications

Brand-Specific Technical Block

The 81AA03A-E is designed to integrate into the Procontrol P14 backplane communication bus. It features high-density I/O signal processing, allowing for precise control of analog output channels. The module’s architecture supports cyclic and acyclic communication, ensuring compatibility with the CDS for real-time diagnostic data transfer. The electrical design emphasizes channel isolation to minimize crosstalk between output signals. Firmware compatibility is handled through the Procontrol system bus, ensuring that the module synchronizes with the main controller scan cycle and maintains signal integrity for feedback and control tasks.

Ordering Information

• Included items: Analog Output Module, terminal connection blocks.

• Standard package: Industrial electrostatic protective packaging.

• Optional accessories: Secondary shielding gaskets, mounting hardware for rack-based installation.

Installation Guidelines

• Ensure the system backplane is powered down before module insertion to avoid electrical shorts.

• Align the module pins carefully with the Procontrol P14 backplane connector to prevent mechanical damage.

• Secure the module using the provided locking mechanism; ensure the housing is flush against the rack frame.

• Terminate all field signal wires using shielded twisted-pair cables to prevent electromagnetic interference (EMI) on the analog output.

• Ground the module chassis to the cabinet earth bus, ensuring a low-impedance path to dissipate common-mode noise.

• Do not exceed the rated output voltage or current limits for the analog channels to avoid thermal saturation of the protection circuitry.

Frequently Asked Questions

Q: Does the 81AA03A-E support hot-swap behavior?

A: The module is intended for fixed installation; hot-swapping should only be attempted if the host backplane design provides for controlled circuit interruption.

Q: How does the unit manage backplane load?

A: The module is calibrated for the standard Procontrol P14 electrical bus and maintains stable impedance for all connected analog output channels.

Q: What is the redundancy switching delay for this unit?

A: Redundancy logic is managed by the Procontrol controller; this module acts as a slave interface and introduces no independent switching delay.

Q: Is firmware compatibility required?

A: Yes, the module firmware must be version-matched to the Procontrol P14 project configuration for correct data mapping in the CDS.

Q: Does the unit provide signal isolation?

A: The analog output channels feature galvanic isolation to protect the control electronics from potential ground loop currents in the field.

Q: What are the field wiring constraints?

A: Shielding must be grounded at the control cabinet side only to avoid ground loops, and conductors must adhere to minimum cross-sectional area requirements.

Q: Can this module work with non-Procontrol systems?

A: No, this module utilizes proprietary Procontrol P14 backplane communication and is not compatible with other industrial control platforms.

Q: How can I confirm the module is communicating with the CDS?

A: The module will automatically handshake with the CDS upon power-up; if communication is established, the module status will appear in the diagnostic software.
