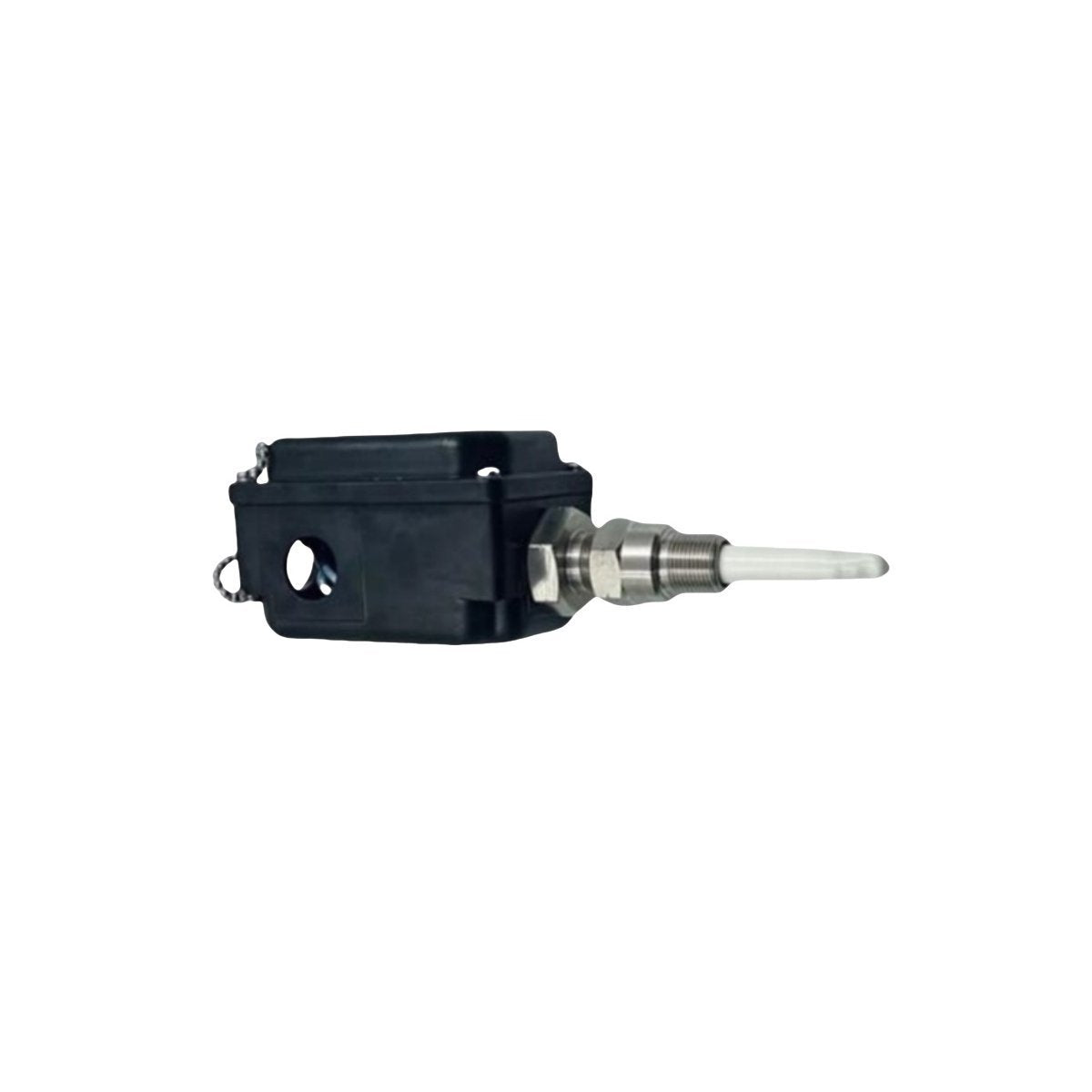

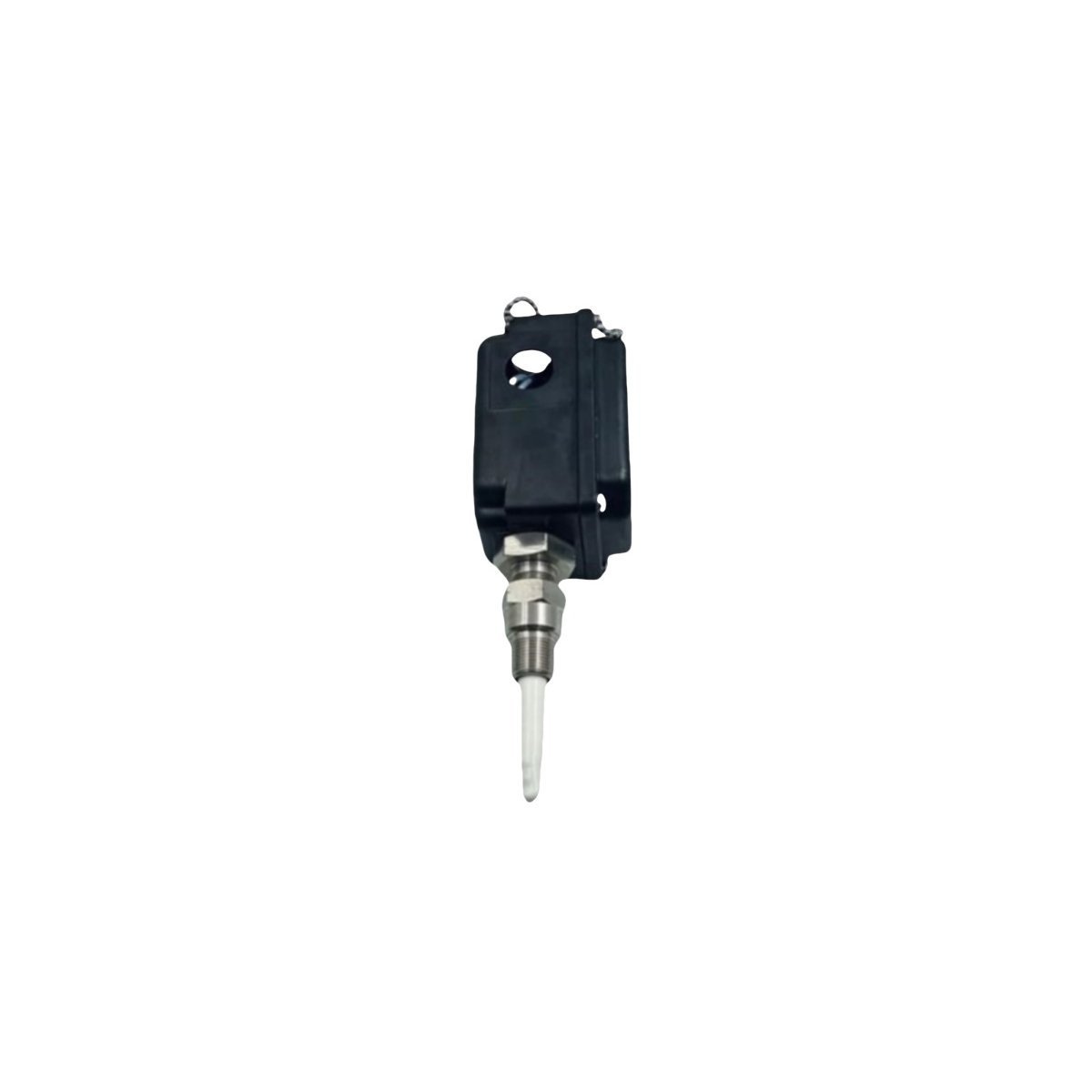

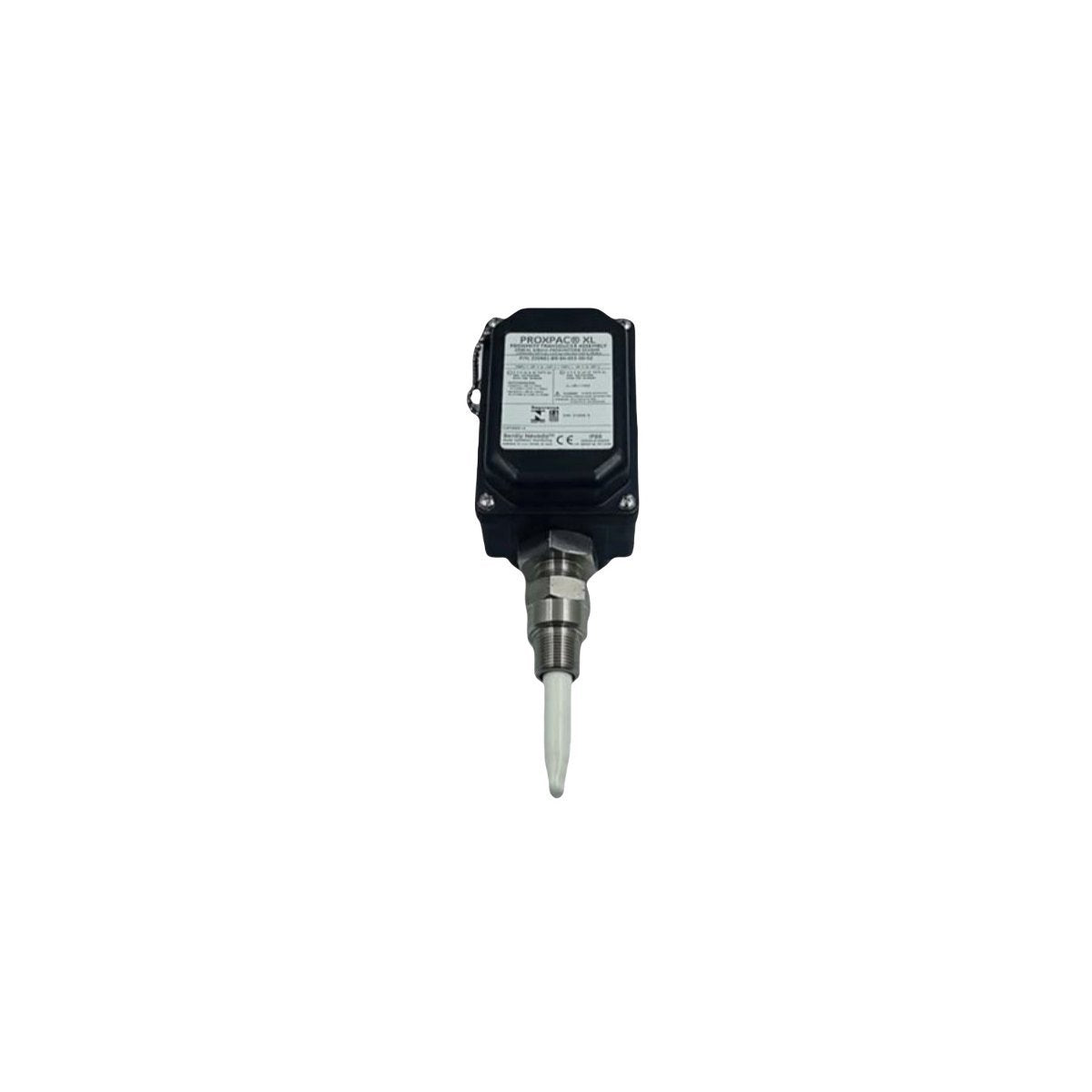

The Bently Nevada 330881-28-05-060-00-02, also cataloged as the 330881 PROXPAC XL Proximity Transducer, operates as a dedicated hardware component for integrated non-contacting vibration and position monitoring within 3300 XL series instrumentation systems.

Suffix Configuration Matrix

The 330881-28-05-060-00-02 part number denotes a specific mechanical and electrical assembly. The configuration defines the probe type, thread diameter, cable length, and housing interface required for direct mounting in industrial machine cases. The integrated PROXPAC design eliminates the need for a separate Proximitor housing by combining the probe and signal conditioning circuitry into a single shielded assembly.

Technical Specifications

Mechanical Monitoring & Transducer Scaling

The PROXPAC XL system functions via high-frequency eddy-current coupling. Accurate rotor dynamics analysis depends on maintaining the system within its linear range, typically verified by a -10 VDC gap voltage target relative to the observed shaft surface. Calibration is optimized for 4140 steel targets; deviations in target material properties will necessitate secondary scaling adjustments. Cross-talk suppression is critical in multi-probe arrays; maintain specified minimum radial clearance to avoid interference between adjacent oscillating electromagnetic fields generated by the probe tips.

Ordering & Shipment Contents

• 1x 330881-28-05-060-00-02 PROXPAC XL Transducer

• 1x Installation and technical documentation package

• 1x Protective connector cap

• 1x Calibration verification data sheet

Installation & Field Deployment

• Torque Management: Tighten lock nuts to a maximum of 5.1 N-m (45 in-lb) to ensure structural stability without damaging the probe threads.

• Grounding Strategy: Ensure the probe case is electrically isolated from the mounting bracket if required by local grounding protocols; otherwise, secure metal-to-metal contact.

• Wiring Path: Route signal cables through dedicated, grounded metallic conduit to minimize electromagnetic interference (EMI) from high-power variable frequency drives or motors.

• Alignment: Confirm the probe tip is centered perpendicular to the target surface to prevent signal distortion or range nonlinearity.

Frequently Asked Questions

• Can the PROXPAC XL be repaired in the field? No, the assembly is hermetically sealed to ensure environmental protection and integrity of the internal electronics.

• What happens if the gap voltage exceeds -18 VDC? The signal will reach the clipping limit, resulting in non-linear measurement and loss of true vibration data.

• Is the cable replaceable? No, the PROXPAC design utilizes a permanent cable connection to maintain calibration consistency between the probe and signal processor.

• Does this system support hot-swapping? The module is typically wired into a terminal block; while the electronics are robust, isolate power before physical disconnection.

• How is target material effect compensated? If the target is not 4140 steel, apply a correction factor based on the specific magnetic permeability of the material used.

• What is the purpose of the 060 cable length? The 6.0 meter cable is factory-calibrated as an integral component of the total system impedance.

• Can I shorten the cable? No, shortening the cable will permanently alter the impedance and invalidate the factory-set sensitivity (scale factor).

• Are these probes compatible with older 3300 systems? Only if the system input impedance and power supply requirements are verified to match the 3300 XL series specifications.
