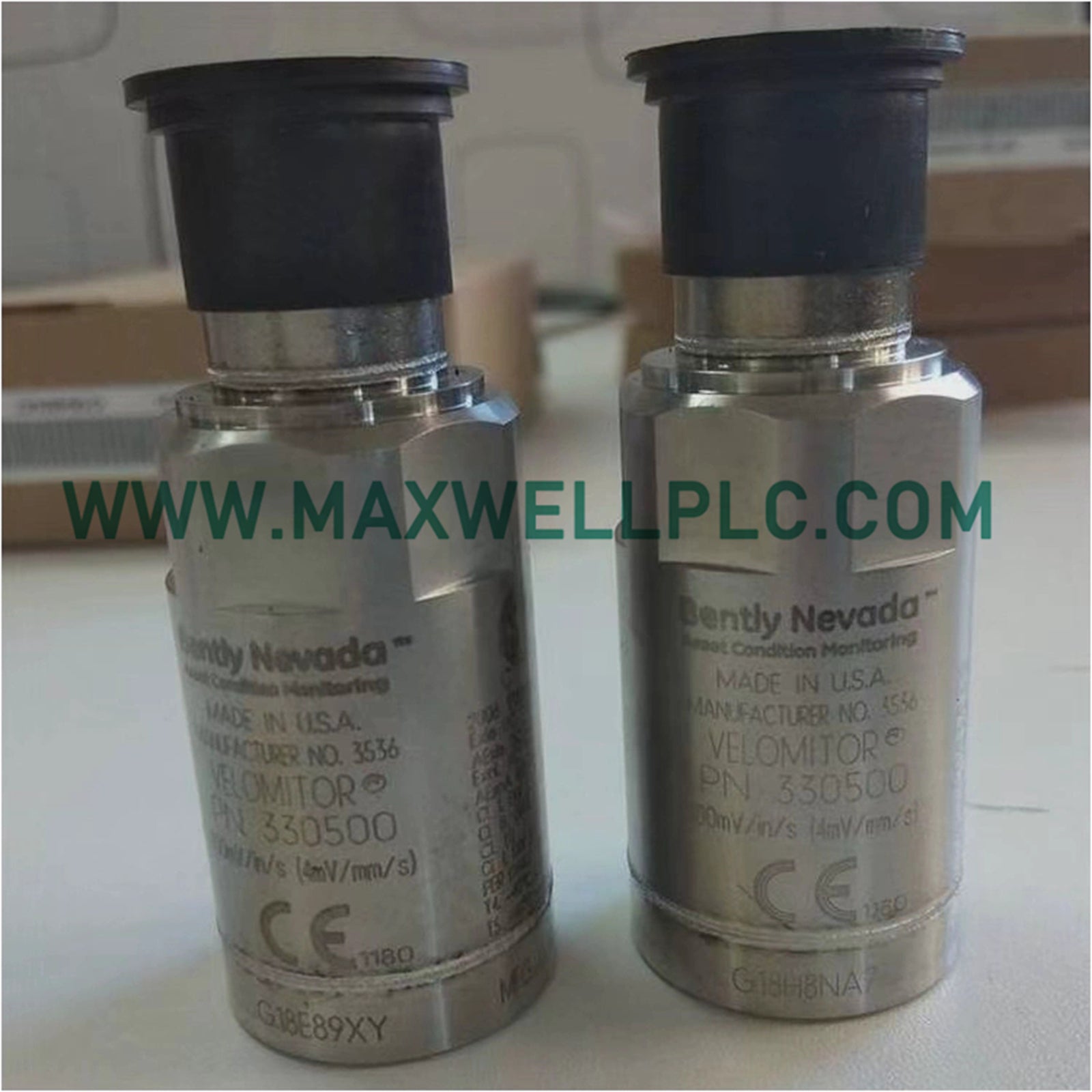

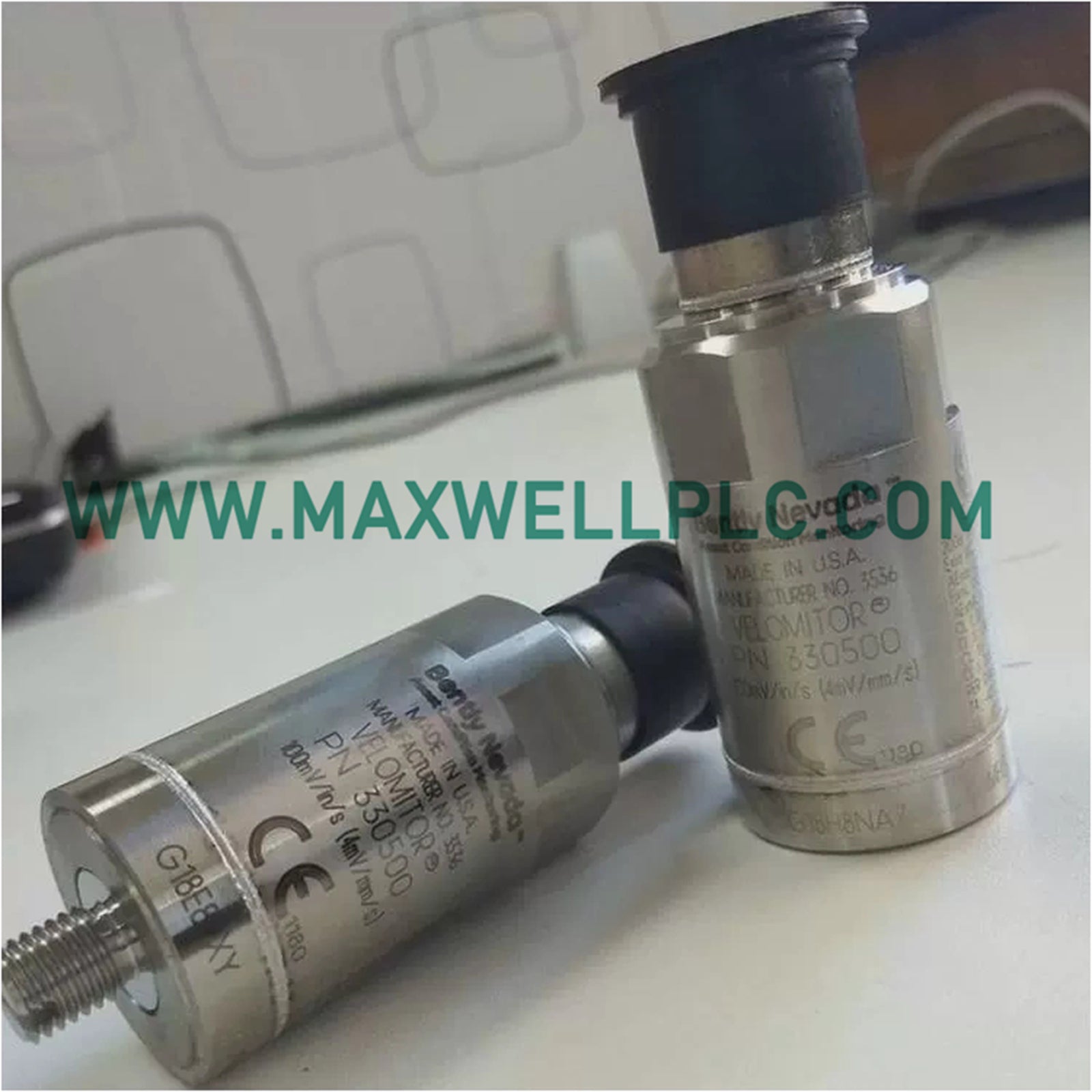

The Bently Nevada 330500-03-01, also cataloged as the 330500 Velomitor Piezo-velocity Sensors, operates as a dedicated hardware component for vibration velocity measurement and structural monitoring within turbine supervisory instrumentation systems.

Suffix Breakdown & Configuration Structure

• Product Series: 3300 Series
• Base Model: 330500
• Mounting Thread Option (-03): 1/4 - 28 UNF mounting stud interface
• Agency Approval Option (-01): CSA / US / C hazardous area certification
• Device Classification: Piezo-Velocity Sensor (Velomitor)

Hardware Specifications

Machinery Monitoring & Rotor Dynamics Integration

Designed to interface with rotating machinery protection networks, the sensor converts physical casing velocity into proportional electrical signals for vibration analysis. The internal accelerometer assembly combines with an internal integrator circuit to output a velocity signal while maintaining precise rotor dynamics tracking. Signal transmission suppresses cross-talk interference and preserves signal integrity across long cable runs. Output validation against standard gap voltage targets and eddy-current probe scaling baselines ensures reliable diagnostic feedback for machinery health monitoring platforms.

Order Delivery Package

• 1 330500-03-01 Velomitor Piezo-velocity Sensor
• 1 1/4 - 28 UNF Mounting Stud
• 1 Product Compliance and Documentation Sheet

Mechanical Mounting Procedures

• Thread Preparation: Clean the mounting surface thoroughly and apply a thin film of silicone grease or machine oil to optimize high-frequency seismic transmission across the interface.
• Torque Application: Thread the sensor firmly onto the 1/4 - 28 UNF mounting stud, applying the recommended torque to prevent mechanical loosening under heavy casing vibrations.
• Shielded Cabling: Route signal cables through dedicated metallic conduits, ensuring shield drain wires are grounded at the monitor end only to eliminate ground loops.
• Environmental Clearance: Verify that the local operating envelope remains within thermal limits to protect internal piezoelectric elements from thermal shock or degradation.

Frequently Asked Questions

• Q: What is the nominal voltage output sensitivity of this sensor?

A: The sensitivity is specified at 3.94 mV/mm/s, which corresponds to 100 mV/in/s with a tolerance of plus-minus 5 percent.

• Q: What mounting thread configuration does the -03 option provide?

A: The -03 suffix designates a 1/4 - 28 UNF threaded stud interface for direct mechanical mounting onto machine casings.

• Q: What is the maximum peak velocity measurement range?

A: The sensor can reliably measure vibration velocities up to 1270 mm/s or 50 in/s peak.

• Q: What power supply parameters are required to drive the unit?

A: It requires a constant current DC source typically between 2 mA and 20 mA to power the internal integrated electronics.

• Q: What is the nominal output bias voltage of the sensor?

A: The output bias voltage is -12 plus-minus 3.0 VDC referenced to Pin A over the specified temperature range.

• Q: Does the -01 suffix indicate any specific safety certification?

A: Yes, the -01 option indicates CSA, US, and Canadian hazardous area safety approvals for explosive environments.

• Q: What are the physical dimensions and weight profile for panel layout?

A: The sensor weighs 0.16 kg with shipping dimensions measuring 2.5 x 2.5 x 7.2 cm.

• Q: What is the amplitude linearity limit of the unit?

A: Amplitude linearity is maintained within plus-minus 2 percent up to 152 mm/s or 6 in/s peak vibration levels.
