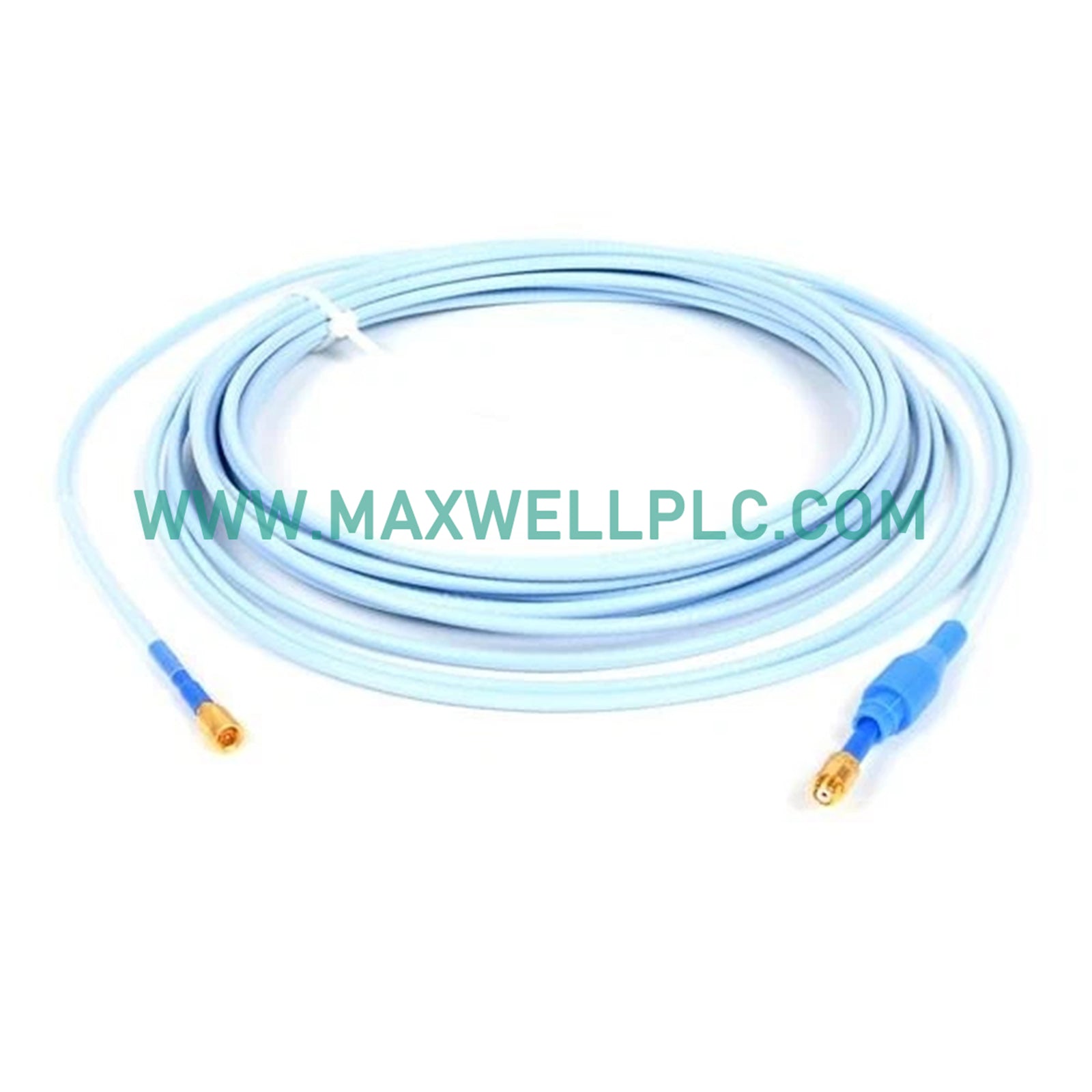

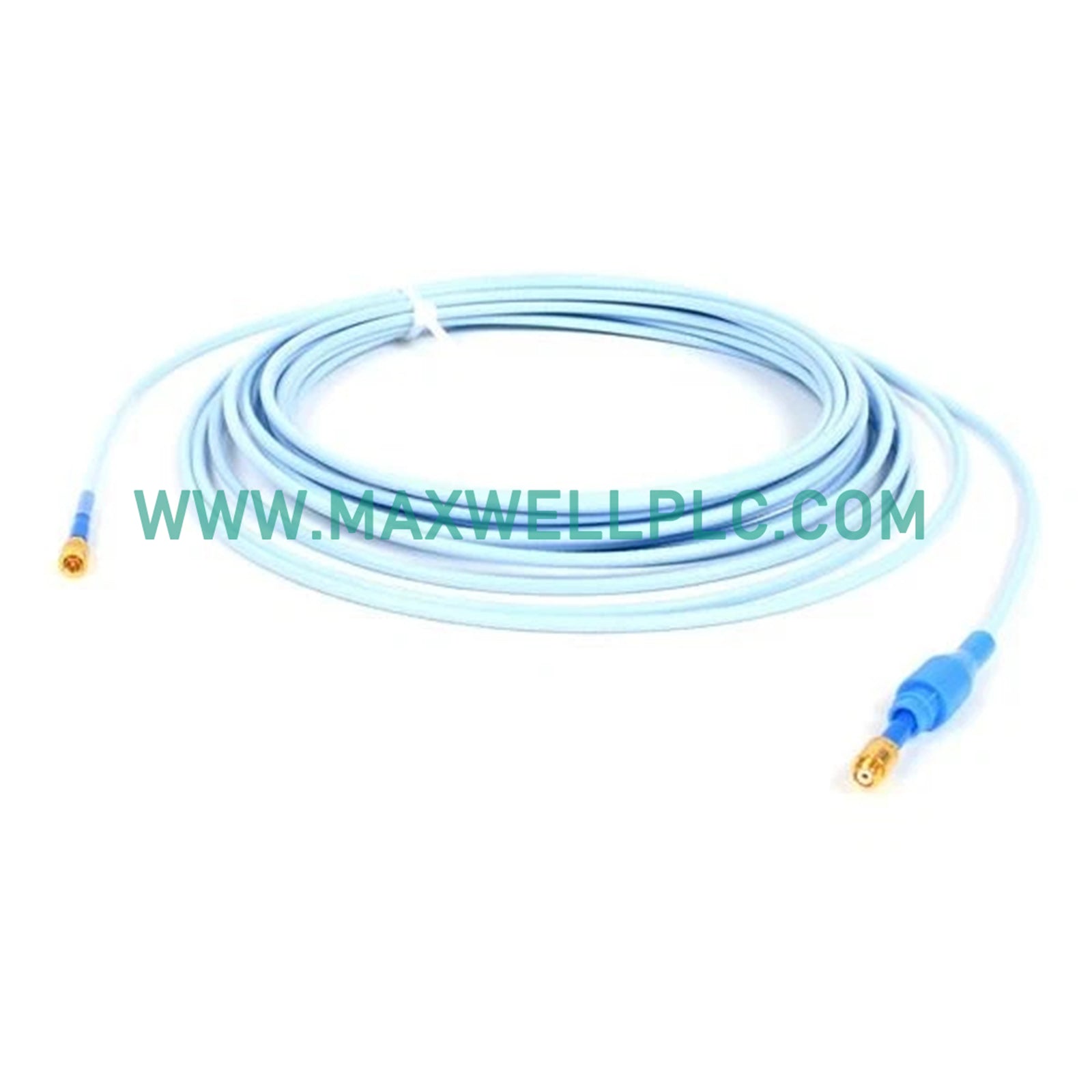

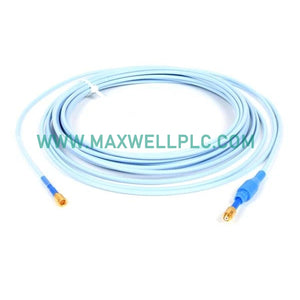

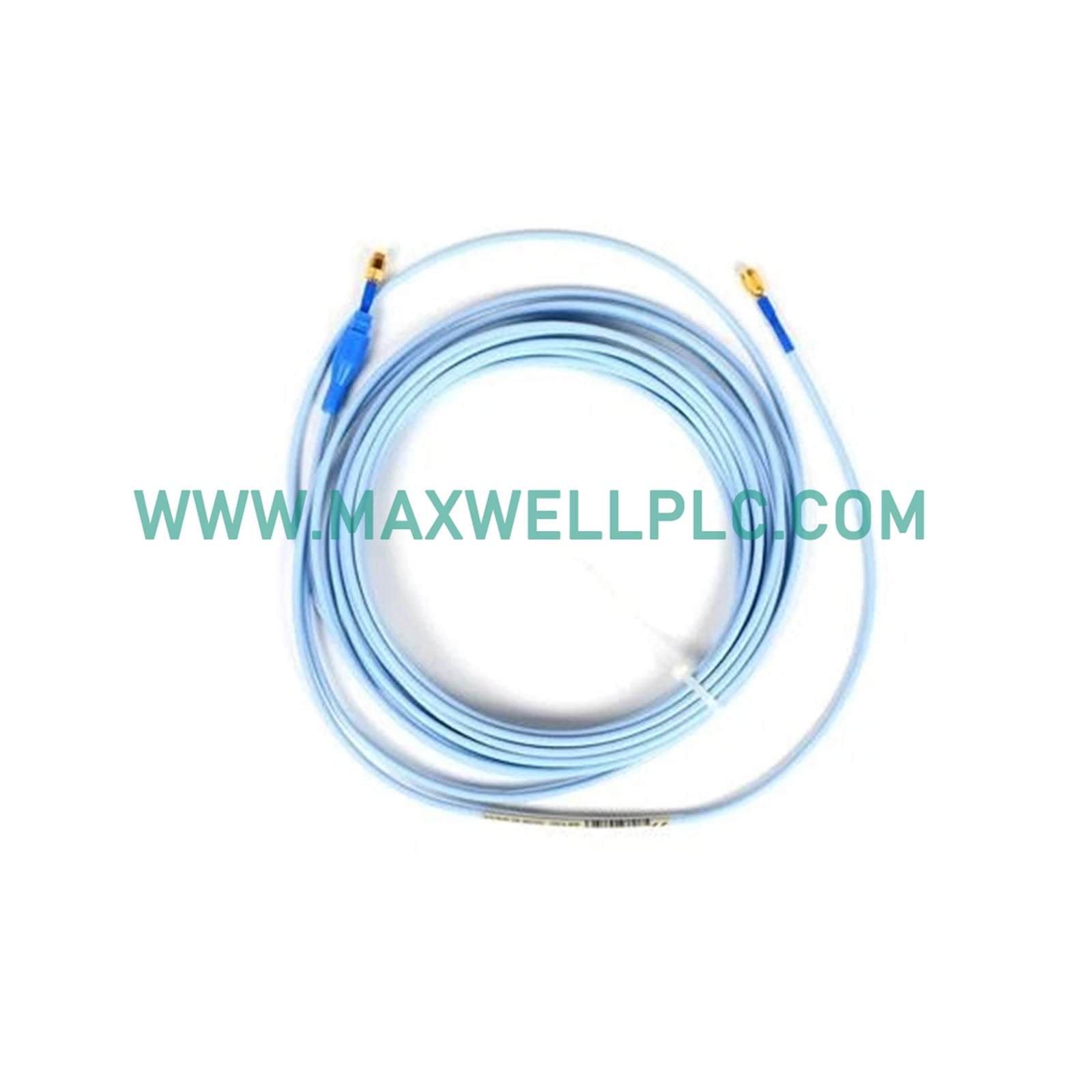

Configured for high-temperature vibration monitoring in rotating machinery, the Bently Nevada 330190-085-01-05, also cataloged as the 330190-085-01-05 Extension Cable, provides direct physical/electrical execution.

Part Number Breakdown and Suffix Matrix

• Model Family: 330190 (3300 XL Extended Temperature Range Extension Cable)
• Length Option: 085 (8.5 meters / 27.9 feet)
• Cable Construction: 01 (Armored cable)
• Agency Approvals: 05 (CSA, ATEX, IECEx approvals)

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

Engineered to preserve signal integrity across harsh thermal gradients, the extension cable maintains precise eddy-current probe scaling and impedance matching within the 3300 XL measurement chain. Gap voltage validation targets a -10 VDC baseline when paired with standard Proximitor sensors and probes, ensuring accurate static shaft position and dynamic vibration feedback. Cross-talk suppression mechanisms within the coaxial shielding prevent electromagnetic interference injection along extended cable runs inside industrial turbine enclosures.

Package Contents and Component Manifest

• 1 x Bently Nevada 330190-085-01-05 3300 XL ETR Extension Cable
• 1 x Protective Insulation Sleeve Set
• 1 x Regulatory Compliance and Certification Insert

Mechanical Routing and Installation Guidelines

• Bend Radius Limits: Maintain a minimum bend radius of 25.4 mm during installation to prevent internal conductor deformation or armor crushing.
• Shield Grounding: Ensure continuous outer shield continuity from probe tip to Proximitor sensor housing, terminating secondary grounds only at approved panel locations.
• Thermal Isolation: Route the cable away from direct high-intensity thermal exhaust zones exceeding the 260 deg C rating limit, securing with high-temperature stainless steel clamps.

Frequently Asked Questions

• What is the length of this specific extension cable variant?

  The cable has a total physical length of 8.5 meters (27.9 feet) designated by the 085 suffix code.

• What type of mechanical protection does the outer jacket provide?

  The cable features an integrated protective armor layer to guard against physical wear and harsh environmental elements.

• What is the maximum temperature rating for this ETR extension cable?

  The extended temperature range variant withstands operating temperatures up to 260 deg C (500 deg F).

• Can this extension cable be paired with standard non-ETR probes?

  Yes, ETR components are fully compatible with standard temperature probes and Proximitor sensors within the system architecture.

• What is the characteristic electrical resistance of the cable conductors?

  The internal conductor loop exhibits a nominal output resistance rating of 50 Ohm.

• What hazardous area certifications apply to this part number?

  The 05 suffix indicates compliance with CSA, ATEX, and IECEx hazardous location approval standards.

• Does this passive cable require an external power supply connection?

  No, as a passive extension element, it operates without internal active circuitry or external power inputs.

• What is the net shipping weight including packaging?

  The verified net weight of the hardware is 0.25 kg packaged within standard shipping dimensions.
