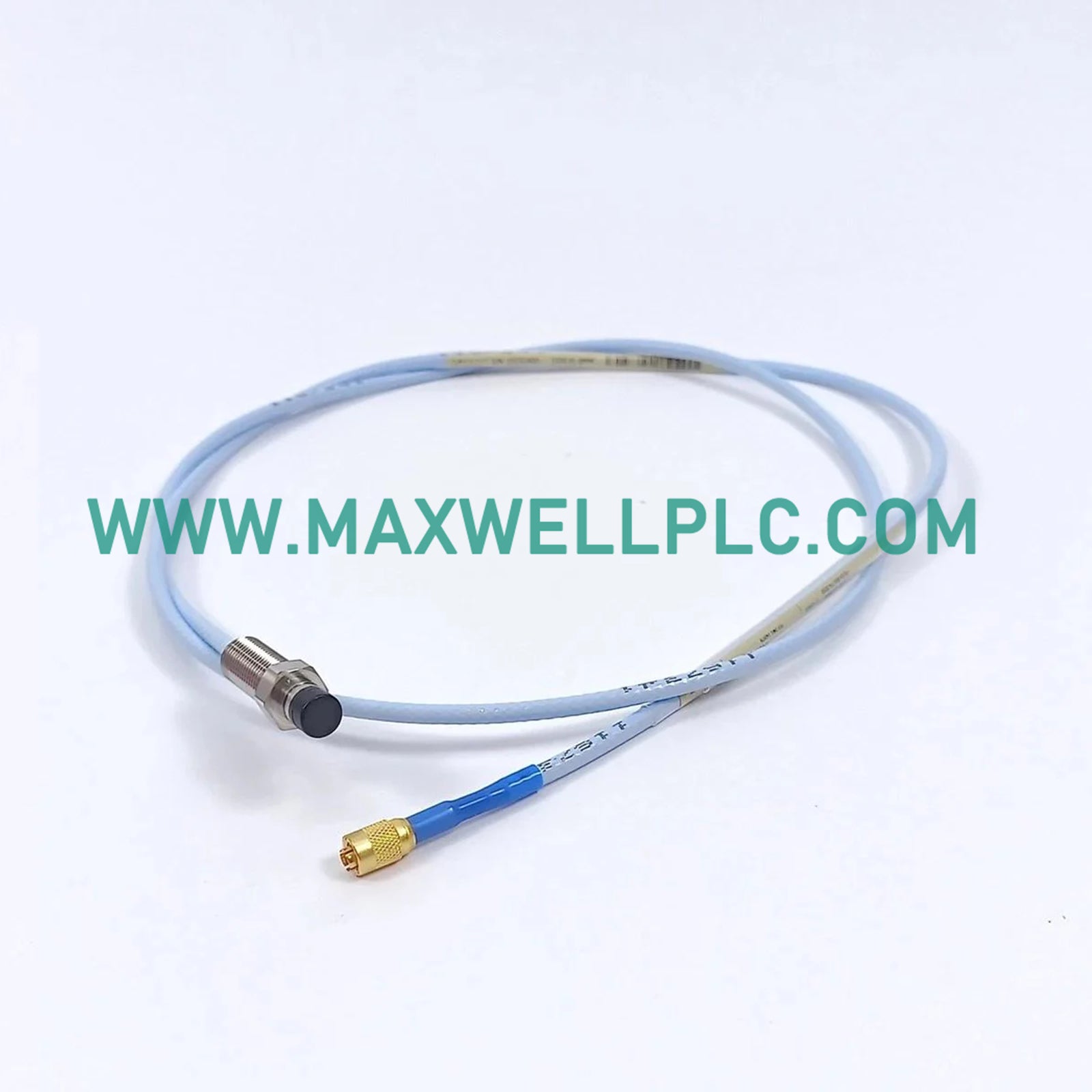

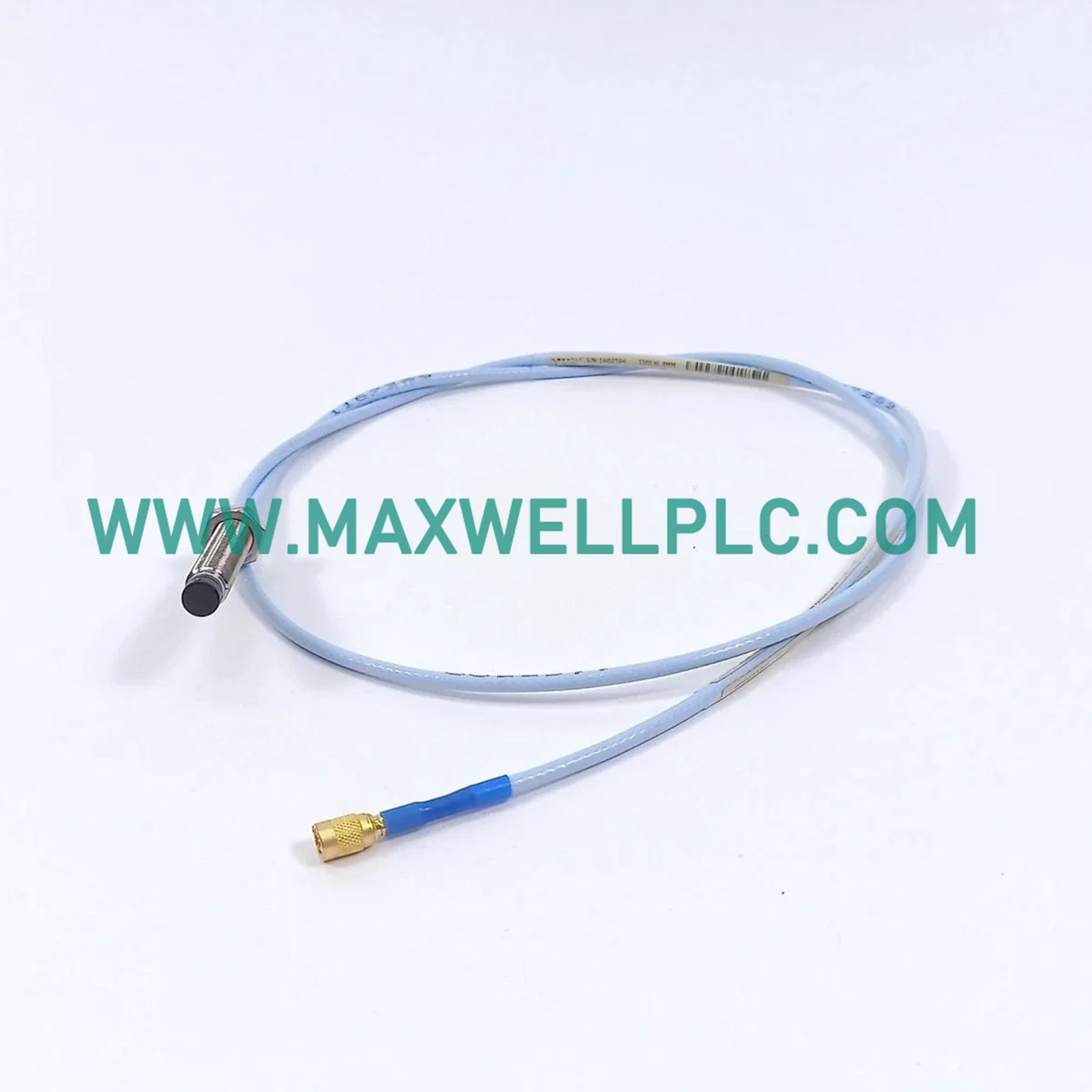

Configured for rotor dynamics measurement in rotating machinery networks, the Bently Nevada 330104-01-14-10-01-00 (330104-01-14-10-01-00 Proximity Probes) provides direct physical signal generation via eddy-current interaction with conductive machine shafts.

Configuration Breakdown Matrix

• 330104: Base model designation for the 3300 XL 8 mm proximity probe with M10 x 1 threading and armor.
• 01: Minimum unthreaded length option of 10 mm.
• 14: Minimum case length option of 140 mm.
• 10: Total system cable length option of 5.0 meters.

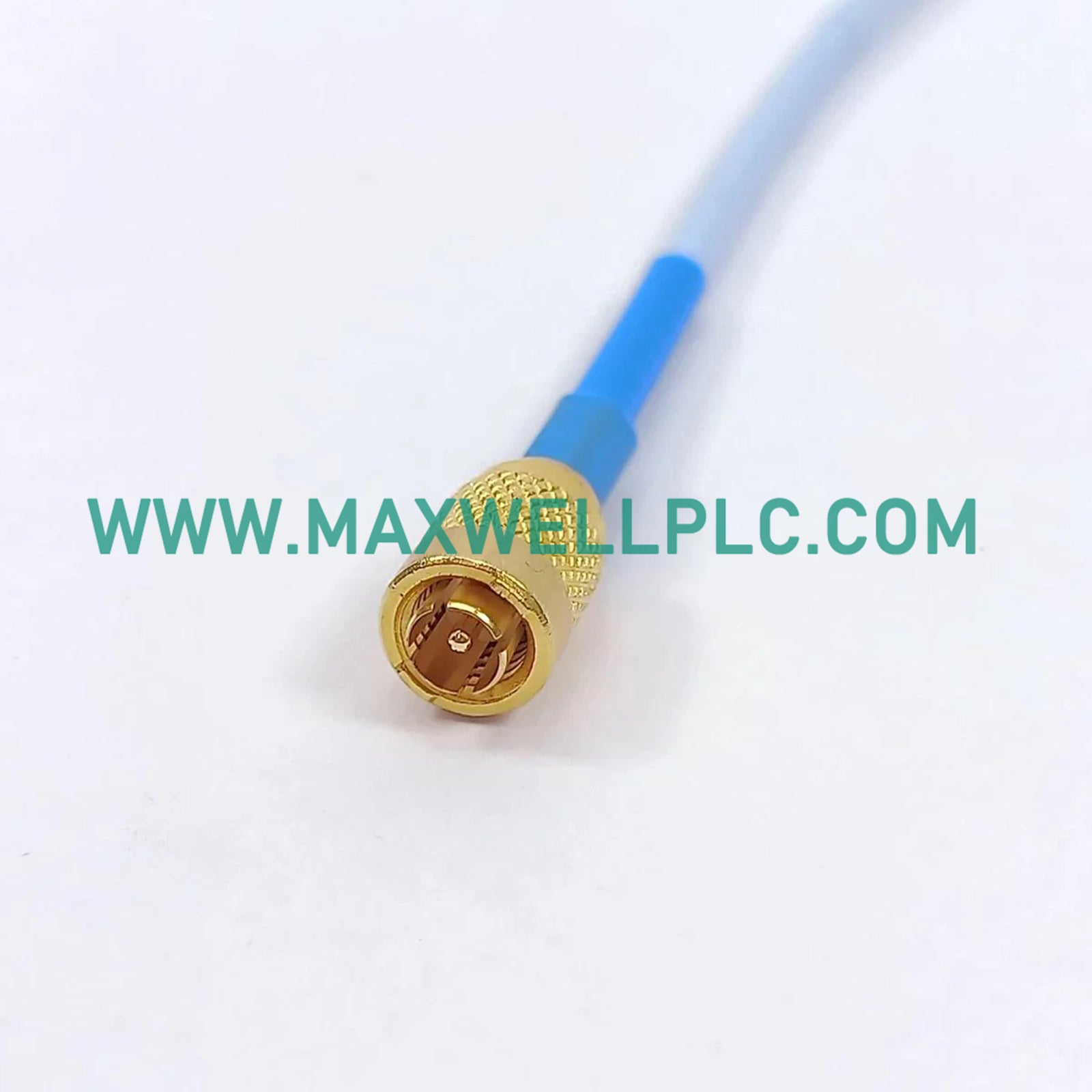

• 01: Miniature coaxial ClickLoc connector with connector protector and standard cable.
• 00: Agency approval option indicating none required.

Hardware Specifications

Rotor Dynamics And Gap Voltage Validation

• Gap Voltage Target: Adjusted during cold installation to achieve a nominal static output between -10 VDC and -12 VDC.
• Eddy-Current Scaling: Converts physical air-gap variations into proportional electrical output signals for vibration and position analysis.
• Cross-Talk Suppression: Utilizes shielded coaxial cabling to prevent electromagnetic induction from nearby high-voltage lines.
• Frequency Response: Delivers linear signal transmission from 0 Hz up to 10 kHz to capture both radial vibration and keyphasor reference phases.

Bill Of Delivery

• 1 x 330104-01-14-10-01-00 Proximity Probe assembly
• 1 x Miniature coaxial ClickLoc connector with integrated protector

Mechanical Installation And Cabling Guidelines

• Thread Engagement: Secure the M10 x 1 probe body into the machine mounting port, ensuring maximum thread engagement does not exceed 15 mm to prevent binding.
• Torque Limits: Apply controlled torque when fastening the probe housing to avoid structural deformation of the tip aperture.
• Cable Routing: Keep the coaxial lead separated from heavy power conduits to eliminate electrical noise interference in the monitoring loop.
• Shield Grounding: Terminate the coaxial shield drain strictly at the Proximitor sensor grounding terminal to prevent ground loops.

Frequently Asked Questions

• Question: What is the primary function of the 330104-01-14-10-01-00 probe?

  Answer: It senses the distance to a conductive target and translates it into an analog voltage for machinery vibration tracking.

• Question: Does this proximity probe require an internal power supply?

  Answer: No, it operates as a passive sensor powered externally by a compatible Proximitor unit.

• Question: What thread standard does the probe body use?

  Answer: The unit is manufactured with an M10 x 1 mounting thread pattern.

• Question: What is the maximum permitted thread engagement during mounting?

  Answer: Engagement must remain under 15 mm to avoid mechanical interference or damage.

• Question: What is the total length option represented by the part number?

  Answer: The configuration includes a total system length of 5.0 meters.

• Question: What type of connector is attached to the probe lead?

  Answer: It features a miniature coaxial ClickLoc connector paired with a protective sleeve.

• Question: What is the target gap voltage during initial alignment?

  Answer: Technicians typically calibrate the static air gap to output between -10 VDC and -12 VDC.

• Question: What is the total shipping weight of the packed item?

  Answer: The packaged weight is recorded at 0.16 kg.
