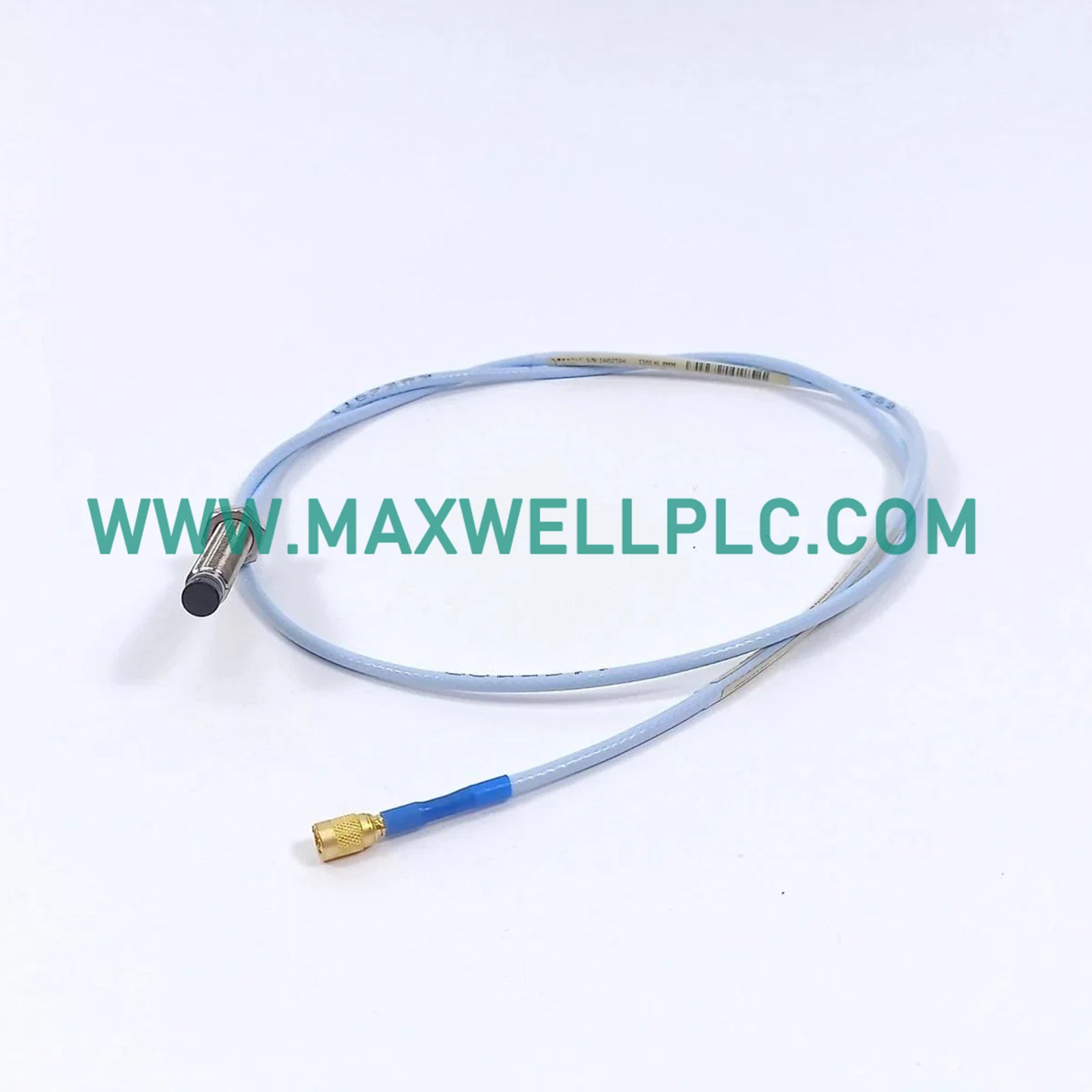

Configured for non-contacting vibration and position measurement in rotating machinery, the Bently Nevada 330102-00-40-10-02-05 (330102 Proximity Transducer) provides direct physical signal generation via eddy-current sensing. This system converts the target displacement into an electrical output signal for downstream monitoring equipment.

Model Configuration Matrix

• 330102: 8 mm Proximity Probe

• 00: Unthreaded Length (0 mm)

• 40: Overall Case Length (40 mm)

• 10: Total Length (1.0 meter)

• 02: Connector Type (Miniature coaxial ClickLoc connector with connector protector)

• 05: Agency Approval (Multiple approvals)

Technical Specifications

Mechanical Monitoring & TSI Integration

The 3300 XL system utilizes eddy-current probe scaling to convert target proximity into a linear voltage signal. For optimal performance, the gap voltage must be validated at -10 VDC during cold startup to ensure the probe resides in the center of the linear operating range. Rotor dynamics monitoring relies on the signal integrity provided by the probe; improper cable routing or localized electromagnetic interference can introduce signal noise. Suppression of cross-talk is achieved through specific frequency modulation techniques integrated into the Proximitor sensor, ensuring the transducer correctly interprets radial vibration, axial thrust, or differential expansion without harmonic distortion from adjacent probes.

Ordering Information

• 1 Bently Nevada 330102 8 mm Probe

• 1 Threaded protective cap

• 1 Installation documentation set

Mounting & Installation Protocols

• Proximity Clearance: Ensure the probe tip is installed at the verified nominal gap of 1.27 mm from the target material.

• Cable Integrity: Utilize high-frequency coaxial cable; avoid sharp bends (minimum bend radius 25 mm).

• Shielding: Ensure the cable shield is grounded only at the monitoring instrument end to prevent ground loops.

• Torque Limits: Tighten probe locknuts to a maximum of 5.6 N-m to prevent housing deformation or thread stripping.

Technical Performance FAQ

• What is the maximum linear range of this probe?

  The 8 mm probe maintains a linear range of 2.0 mm, typically calibrated between 0.25 mm and 2.29 mm from the target surface.

• Is the probe interchangeable with older 3000 series systems?

  No. The 3300 XL system requires specific Proximitor sensors designed for the 3300 XL 8 mm probe electrical characteristics.

• How does cable length affect calibration?

  The system is calibrated for a specific total loop length (probe + extension cable). Changing length requires recalibration for accurate output.

• What is the purpose of the ClickLoc connector?

  It provides a secure, vibration-resistant connection that prevents accidental disconnection during mechanical operation.

• Can the probe be used in hazardous environments?

  Yes, provided the installation complies with the specific agency approval codes (e.g., ATEX/IECEx) indicated in the suffix.

• Why is the target material important?

  The transducer is calibrated for AISI 4140 steel. Using different target materials will significantly alter the sensitivity and linear range.

• What causes "Gap Voltage" drift?

  Thermal expansion of the machine casing or mechanical settling of the probe bracket are the primary causes of gap voltage changes.

• Should I use thread-locking compounds?

  Avoid thread-locking compounds that may interfere with electrical grounding or create chemical compatibility issues with the probe tip.
