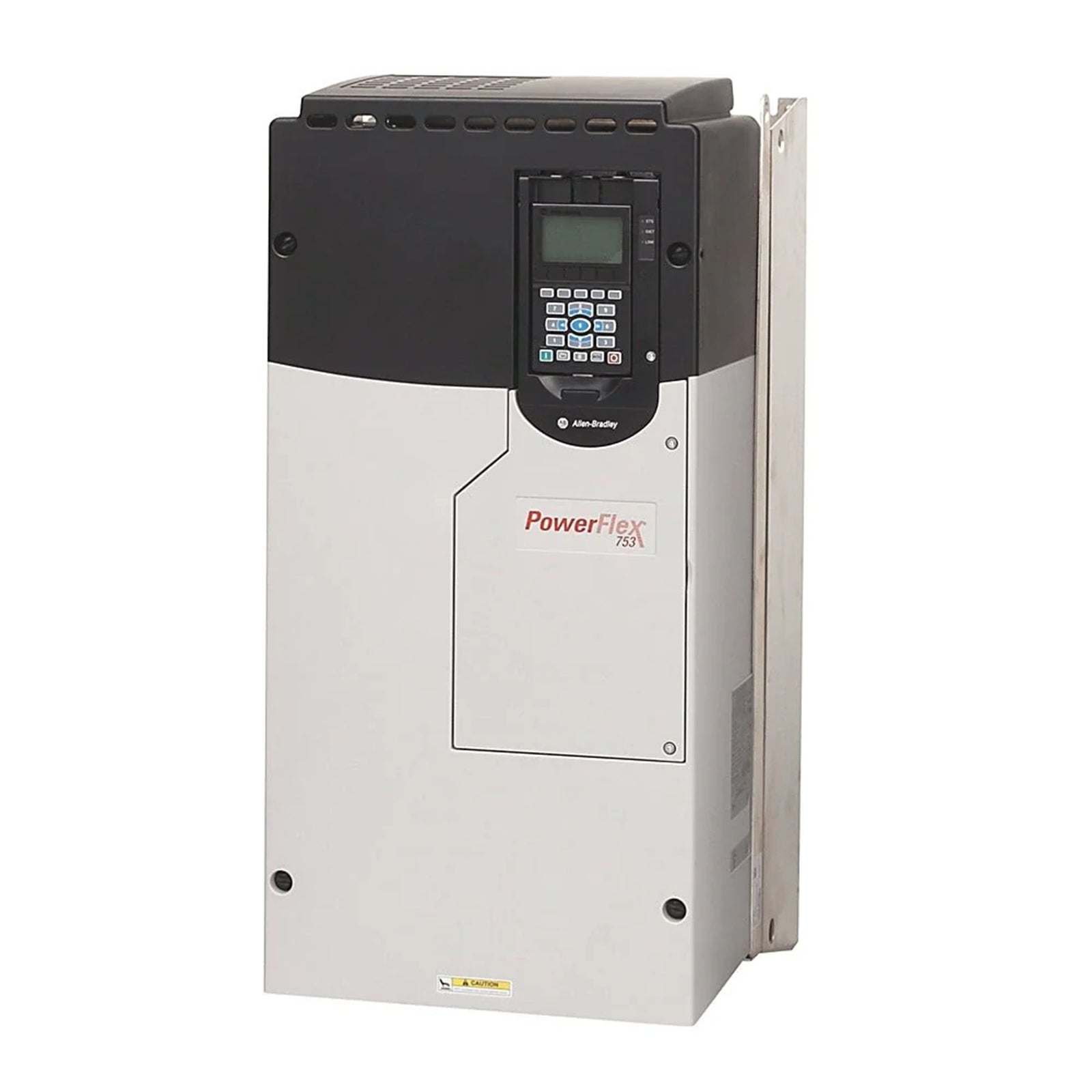

The Allen-Bradley 20F1AND186JA0NNNNN, also cataloged as the PowerFlex 753 AC Drive, operates as a dedicated hardware component for frequency-controlled motor induction management within 480 VAC 3-phase industrial electrical networks.

Suffix Breakdown and Architecture

The 20F1AND186JA0NNNNN model designates a Frame 6 power chassis configured for an output current of 186 Amps. The drive architecture integrates an AC input stage with precharge functionality, an internal dynamic braking (DB) transistor for regenerative energy dissipation, and a factory-fitted EMC filter with the common-mode (CM) jumper installed to ensure optimal line-side noise suppression.

Hardware Specifications

Industrial Control Deterministic Network Attributes

The PowerFlex 753 series supports integration into Profinet or EtherNet/IP deterministic networks, enabling high-speed data exchange for coordinated motion and process control. The internal architecture allows for scalable I/O density via option modules, while firmware flash compatibility ensures that the drive remains aligned with current control system protocols, maintaining minimal latency during high-velocity command execution.

Ordering Info

• 1 x 20F1AND186JA0NNNNN AC Drive

• 1 x Embedded I/O terminal set

• Note: Field wiring should utilize appropriate gauge copper conductors as specified in the drive installation manual to accommodate the 186 A current rating.

Field Installation Guidelines

• Mounting: Install the drive vertically within an industrial enclosure to allow for the effective operation of the forced-air cooling system.

• Shielding: Utilize high-frequency shielding for all motor-side cabling to suppress radiated electromagnetic interference.

• Grounding: Establish a low-impedance connection to the plant earth bus. Ensure the CM jumper remains installed to satisfy EMC filter performance requirements.

• Environment: Maintain operational ambient temperature within defined limits and ensure no ingress of conductive or corrosive dust within the Open Type chassis.

Frequently Asked Questions

• Q: Is this drive capable of DC bus sharing?

  A: No, the 20F1AND186JA0NNNNN model is specified with AC input and precharge logic, lacking dedicated DC bus terminals for shared configurations.

• Q: What is the primary horsepower rating?

  A: The drive provides 150 HP in Normal Duty (ND) and 125 HP in Heavy Duty (HD) motor applications.

• Q: Is the dynamic braking transistor integrated?

  A: Yes, a dynamic braking (DB) transistor is embedded to manage energy dissipation during regenerative braking cycles.

• Q: Can the unit be operated without an external enclosure?

  A: As an IP20/IP00 Open Type device, it must be installed within an appropriate control cabinet to prevent physical or environmental damage.

• Q: What is the function of the CM jumper?

  A: The common-mode (CM) jumper is installed to provide the necessary path for EMC filtering, minimizing conducted emissions on the AC line side.

• Q: Is the forced-air cooling system field-replaceable?

  A: Yes, the cooling fans are designed for serviceability; refer to the technical manual for specific removal and replacement procedures.

• Q: Does this drive support firmware updates?

  A: Firmware is flash-compatible and can be updated through the drive's embedded communication ports to ensure compatibility with host PLC networks.

• Q: What is the voltage class for this drive?

  A: The drive is designed for 480 VAC, 3-phase power input or 650 VDC supply configurations.
