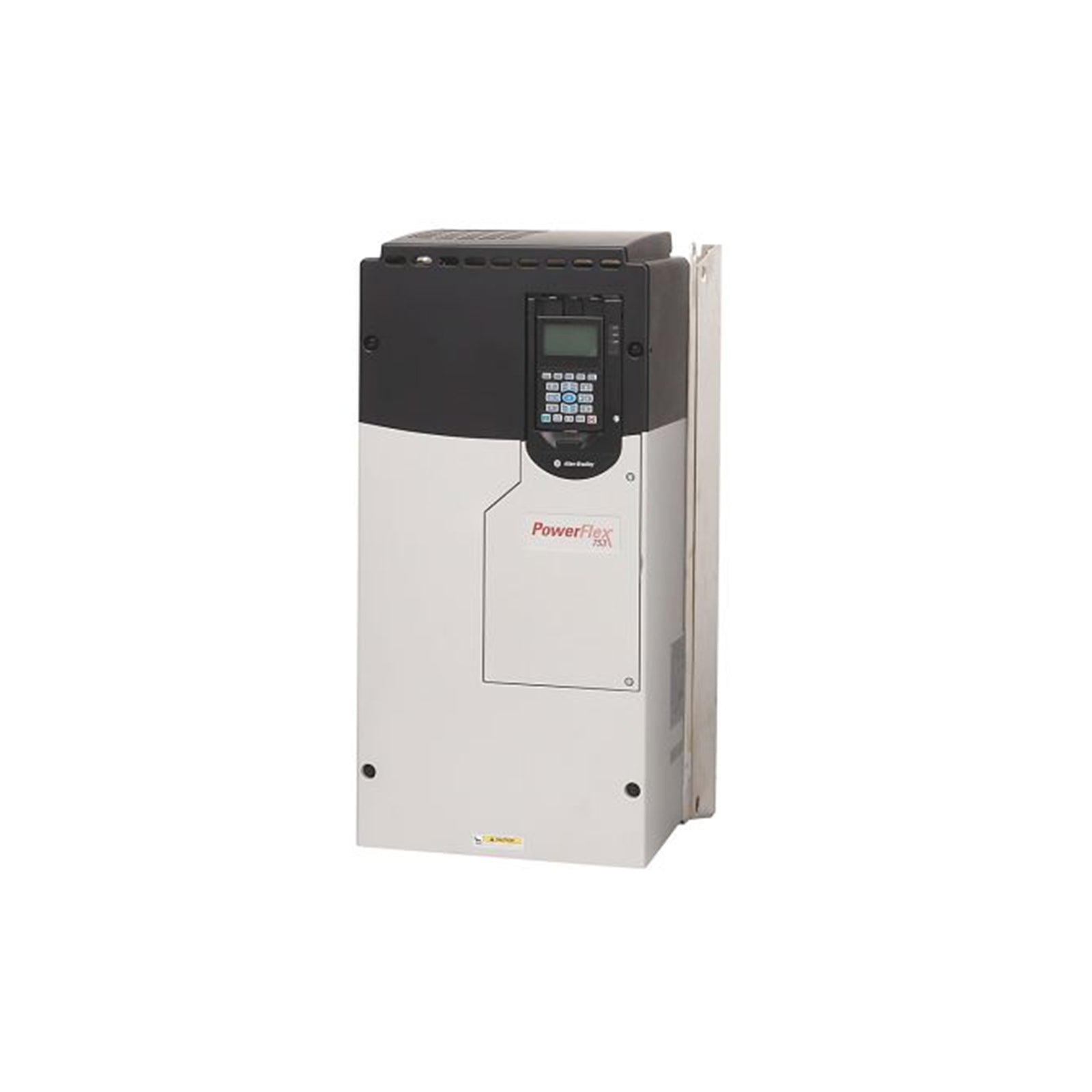

The Allen-Bradley 20F1AND125JN0NNNNN serves as the primary 20F1AND125JN0NNNNN AC Packaged Drive utilized to execute variable-speed motor control across PowerFlex 753 platforms. The drive incorporates embedded I/O, AC input precharge circuitry, EMC filtering, and three-phase power conversion for industrial motor control applications.

Product Identification

The complete catalog number 20F1AND125JN0NNNNN identifies a factory-configured version of the PowerFlex 753 AC Packaged Drive. Electrical ratings, enclosure configuration, cooling method, frame size, EMC filter, braking option, and operator interface configuration are determined by the complete catalog number. Individual catalog characters should be interpreted only through official Allen-Bradley product documentation.

Electrical Specifications

Firmware and Network Integration

The PowerFlex 753 platform supports firmware-managed operation with optional industrial communication modules. Firmware compatibility should be verified before replacing an existing drive or restoring parameter files. Embedded I/O allows local control functions, while communication performance depends on the installed network interface and controller firmware revision.

Ordering Information

The standard package typically includes:

• 1 × Allen-Bradley 20F1AND125JN0NNNNN PowerFlex 753 AC Packaged Drive

• 1 × Factory-installed Embedded I/O

• 1 × Integrated EMC Filter

• 1 × Blank HIM Cover (No HIM Installed)

• 1 × Product Identification Label

• 1 × Manufacturer Documentation (when supplied)

Optional accessories may include:

• Human Interface Module (HIM)

• EtherNet/IP Communication Adapter

• Control I/O Expansion Modules

• Safe Torque Off Option Modules

• Line Reactors

• Output Reactors

• Communication Cables

• Cooling Fan Replacement Kits

Field Installation Recommendations

Mechanical Installation

• Install the drive vertically to maintain the designed airflow path.

• Keep ventilation openings free from obstruction.

• Install inside an enclosure suitable for the operating environment.

• Prevent conductive dust and debris from entering the cooling passages.

Power Wiring

• Verify the incoming voltage before applying power.

• Disconnect all power sources before wiring.

• Connect protective earth according to applicable electrical standards.

• Use conductors with appropriate current ratings.

• Separate motor power wiring from control and communication wiring.

Control Wiring

• Route low-voltage signal cables independently from power cables.

• Ground cable shields according to the system grounding method.

• Verify terminal connections before energizing the drive.

• Confirm embedded I/O assignments during commissioning.

Startup Checks

• Configure motor nameplate parameters before operation.

• Verify controller communication settings.

• Confirm firmware compatibility with existing project files.

• Inspect protective grounding and wiring integrity before startup.

Frequently Asked Questions

• Can this drive be serviced while energized?

  No. Disconnect input power completely and allow the internal DC bus to discharge before performing maintenance.

• Does this model include a Human Interface Module?

  No. This configuration is supplied with a blank HIM cover and no operator interface installed.

• Is dynamic braking available on this drive?

  No. This catalog number is configured without an internal dynamic braking transistor.

• Can optional communication adapters be installed?

  Yes. Supported communication modules can be installed according to PowerFlex 753 hardware specifications.

• Does the drive include embedded I/O?

  Yes. Embedded I/O is included as part of the factory configuration.

• Should firmware revisions match during replacement?

  Yes. Matching firmware revisions help maintain parameter compatibility and communication consistency.

• Can control wiring share the same conduit as motor cables?

  No. Separate routing reduces electromagnetic interference and improves signal integrity.

• What should be checked before initial energization?

  Verify supply voltage, grounding, parameter configuration, communication settings, wiring connections, and motor nameplate data.
