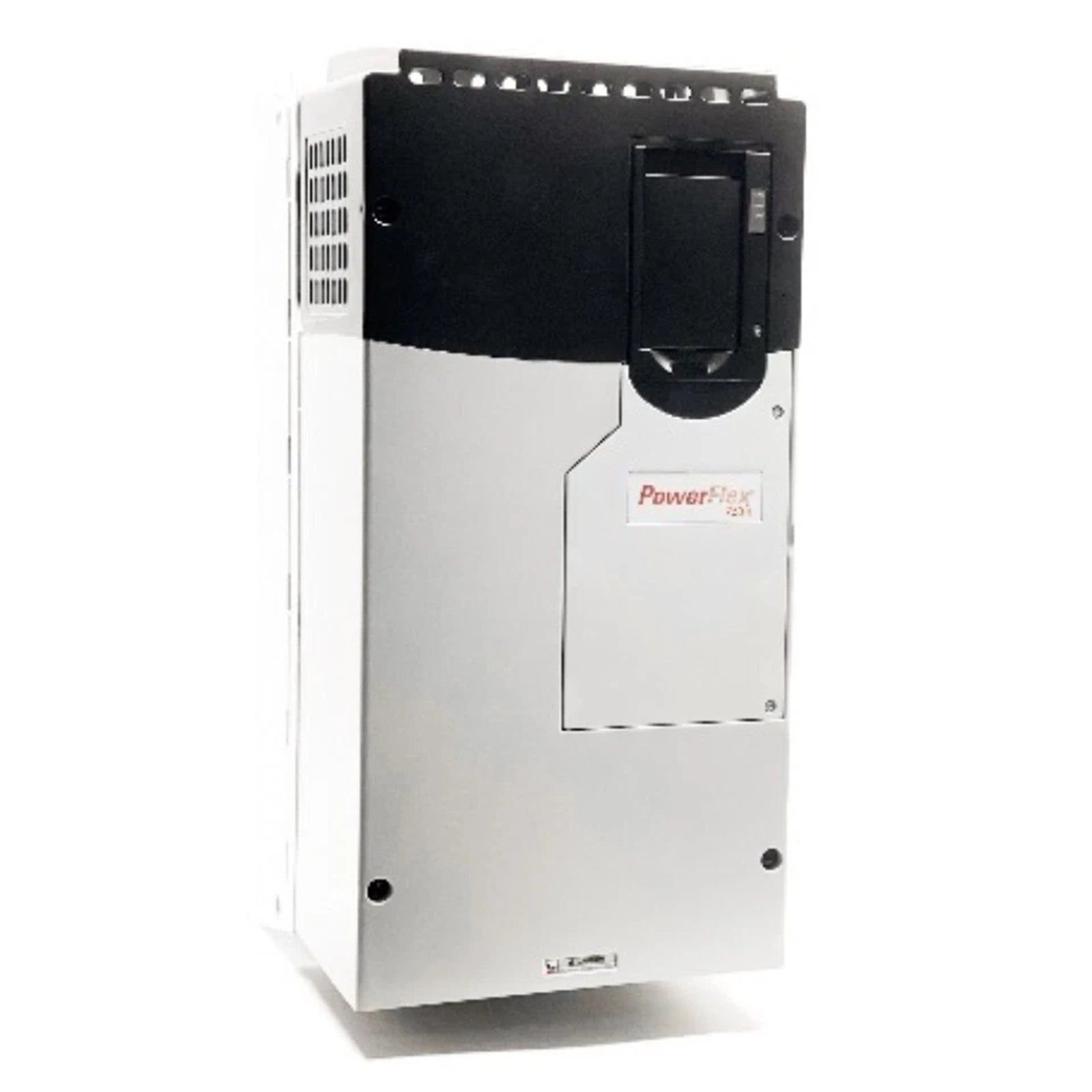

The Allen-Bradley 20F1ANC170JN0NNNNN, also cataloged as the PowerFlex 753 AC Drive, serves as the primary PowerFlex 753 AC Drive utilized to execute variable frequency motor speed and torque regulation across EtherNet/IP deterministic networks platforms.

Factory Configuration Statement

This unit constitutes an integrated power module assembly specified under catalog code 20F1ANC170JN0NNNNN. In accordance with strict engineering protocols for this hardware designation, the full alphanumeric string designates a pre-configured factory build containing specific options for filtration, cooling, frame size, and voltage class that must be deployed and maintained as a non-divisible technical asset.

Hardware Parameter Table

Deterministic Network Integration

The internal processing architecture is designed to sustain continuous communication synchronization over EtherNet/IP deterministic networks. The drive firmware supports active parameter mapping to control registers without degrading backplane bus communication velocity licenses. This ensures high-speed I/O density scaling when exchanging torque, velocity, and diagnostic words with Logix-based automation controllers while adhering to established firmware flash compatibility matrices.

Package Manifest

• 1 Allen-Bradley 20F1ANC170JN0NNNNN PowerFlex 753 Drive Module

• 1 Factory Installed Internal Jumpers Reference Sheet

• 1 Removable Control Terminal Block Kit

Hardware Mounting Guidelines

Mechanical Orientation

• Bolt the Frame 6 chassis vertically onto a flat, non-vibrational industrial backpanel layout inside an enclosure.

• Maintain all manufacturer-specified free space air gaps around the unit for top-to-bottom forced air flow.

Power Termination and Grounding

• Route all three-phase 400 V AC input conductors through separate conduit layout paths away from low-voltage signal wires.

• Terminate low-impedance grounding straps between the drive chassis frame and the central protective earth bus.

Drive Technical FAQ

• What is the ambient temperature threshold for standard operation?

  The hardware maintains operational performance boundaries within a range of 0 to 50 deg C.

• Is hot-swapping option cards permitted while the system is powered?

  No, hot-swap behaviors are strictly unsupported; all primary and control voltages must be disabled first.

• What are the specific power capacities under different load conditions?

  The unit outputs 170 Amps, corresponding to 90 kW Normal Duty or 75 kW Heavy Duty operation.

• What type of line grounding layout is expected with the default configuration?

  The unit features a CM jumper installed, optimizing internal filter circuitry for performance on matching grounded networks.

• What physical constraints apply to installation spaces and freight calculation?

  The drive weighs 6 kg and requires a physical outline volume of 29.5 x 40.5 x 17.2 cm.

• How does the unit process data over the backplane bus?

  The system maintains low-latency parameters for real-time parameter exchange without affecting communication velocity licenses.

• What input type configuration is built into this hardware?

  This model features an AC Input with Precharge design layout and contains no external DC terminals.

• What is the risk during a power cycle while upgrading drive firmware?

  A sudden drop in operating voltage during flash storage writes can corrupt non-volatile memory sectors.
