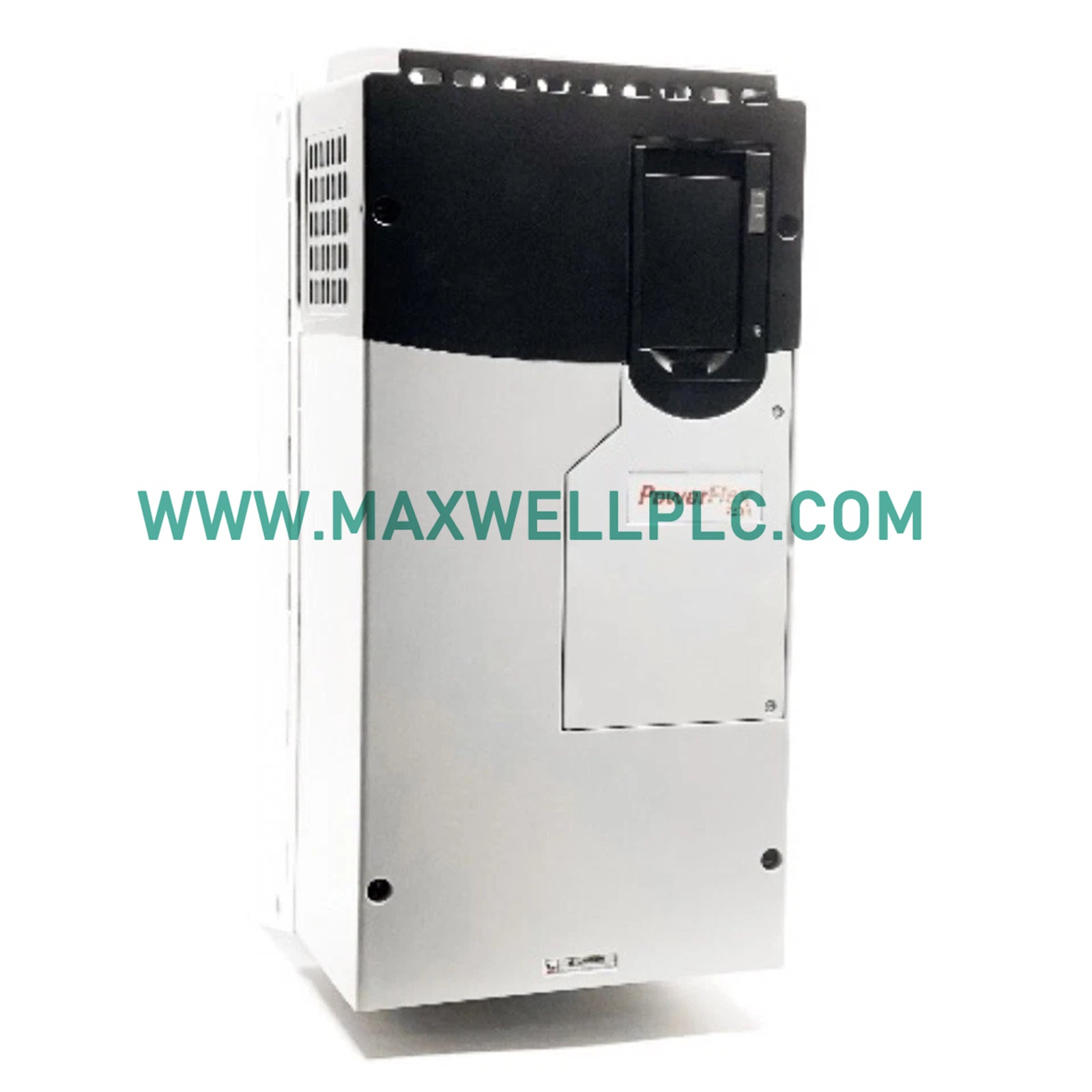

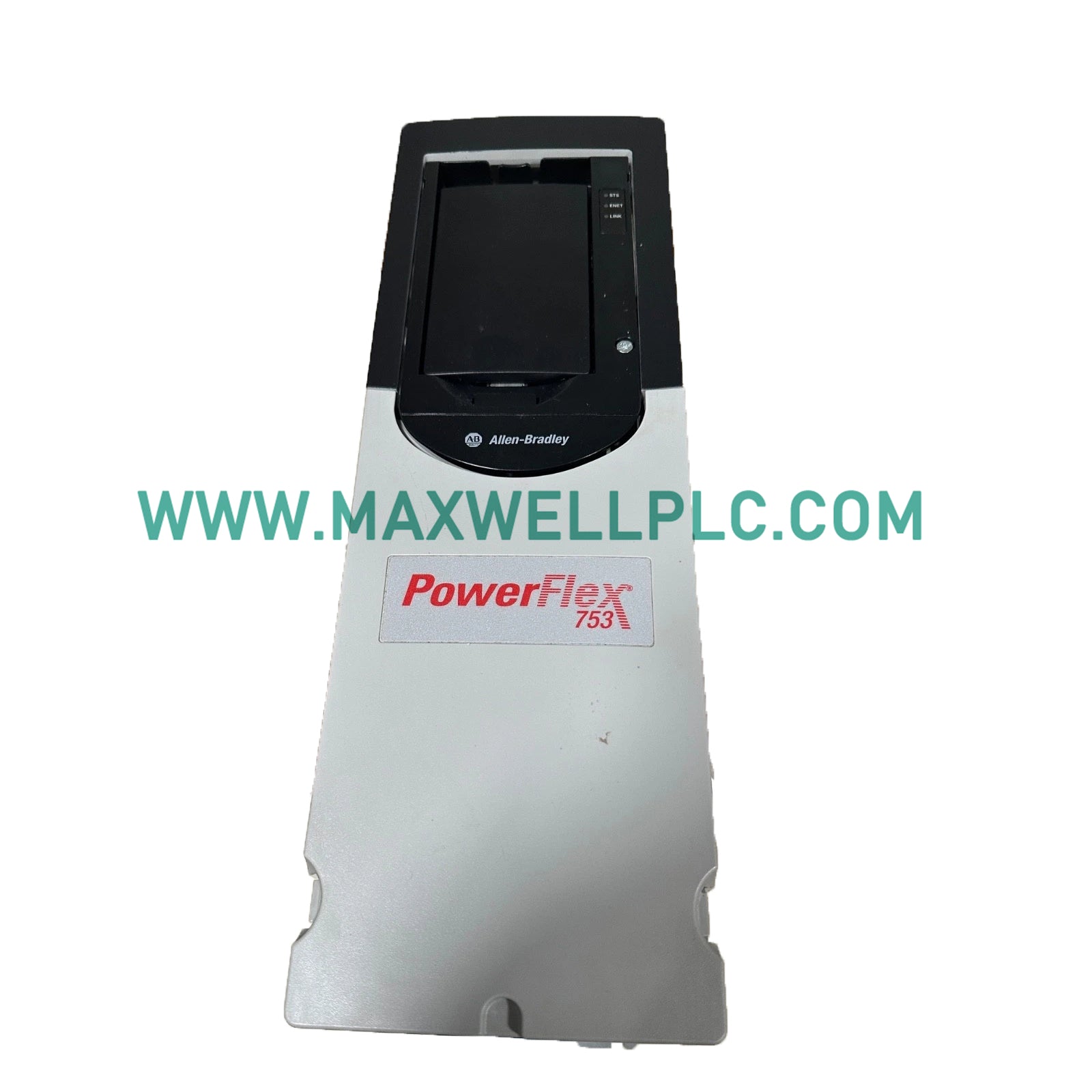

Configured for precision motor induction management in 480 VAC 3-phase industrial power architectures, the Allen-Bradley 20F11ND022JA0NNNNN (PowerFlex 753 AC Drive) provides direct physical electrical execution for variable speed applications.

Suffix Breakdown and Architecture

The model string 20F11ND022JA0NNNNN identifies a Frame 2 power chassis designed for a nominal output of 22 Amps. The drive architecture includes both AC and DC input terminals with precharge functionality, an integrated dynamic braking (DB) transistor for regenerative torque management, and a factory-fitted EMC filter with the common-mode (CM) jumper installed for line-side noise suppression.

Hardware Specifications

Industrial Control Deterministic Network Attributes

The PowerFlex 753 platform utilizes high-speed internal bus communication to maintain deterministic control loops during motor operation. This hardware supports integration into EtherNet/IP or Profinet deterministic networks, facilitating synchronized motion control and process data exchange. The system architecture permits modular I/O density scaling, ensuring that firmware flash compatibility is maintained across varying control protocols during expansion or routine system maintenance.

Ordering Info

• 1 x 20F11ND022JA0NNNNN AC Drive

• 1 x Embedded I/O terminal assembly

• Note: This unit is supplied in a "Blank" (no HIM) configuration.

Field Installation Guidelines

• Mechanical Mounting: Install the Frame 2 chassis vertically within a NEMA-rated enclosure to ensure the forced-air cooling system remains within operational thermal limits.

• Shielding: Employ high-frequency shielded cabling for all motor-side wiring to effectively suppress radiated electromagnetic interference (EMI).

• Grounding: Establish a low-impedance bond between the drive chassis and the plant protective earth bus. Ensure the common-mode (CM) jumper remains installed to satisfy EMC filter performance criteria.

• Airflow: Maintain the specified clearance above and below the drive to prevent heat recirculation and ensure optimal fan performance.

Frequently Asked Questions

• Q: Is a Human Interface Module (HIM) included?

  A: No, this unit is supplied as a "Blank" configuration, requiring an external HIM or configuration software for programming and status monitoring.

• Q: Does this model support DC input?

  A: Yes, the drive is configured with both AC and DC input terminals, providing flexibility for specific power distribution architectures.

• Q: Is the dynamic braking transistor integrated?

  A: Yes, this model includes an internal dynamic braking transistor to handle regenerative energy during motor deceleration.

• Q: What is the ingress protection rating?

  A: As an Open Type (IP20/IP00) device, the drive must be housed within a properly rated enclosure to prevent contamination from dust or moisture.

• Q: What is the function of the CM jumper?

  A: The common-mode (CM) jumper is installed to provide the necessary reference for the internal EMC filter, minimizing conducted noise on the AC line side.

• Q: Can I use this drive in a corrosive gas environment?

  A: No, the drive features standard protection and requires an environmentally controlled enclosure if deployed in areas containing corrosive gases.

• Q: Is firmware update capability supported?

  A: Yes, the drive features flash-compatible firmware that can be updated via embedded communication ports to maintain network protocol alignment.

• Q: What are the duty cycle ratings?

  A: The drive is rated for 15 HP in Normal Duty (ND) and 10 HP in Heavy Duty (HD) motor control applications.
