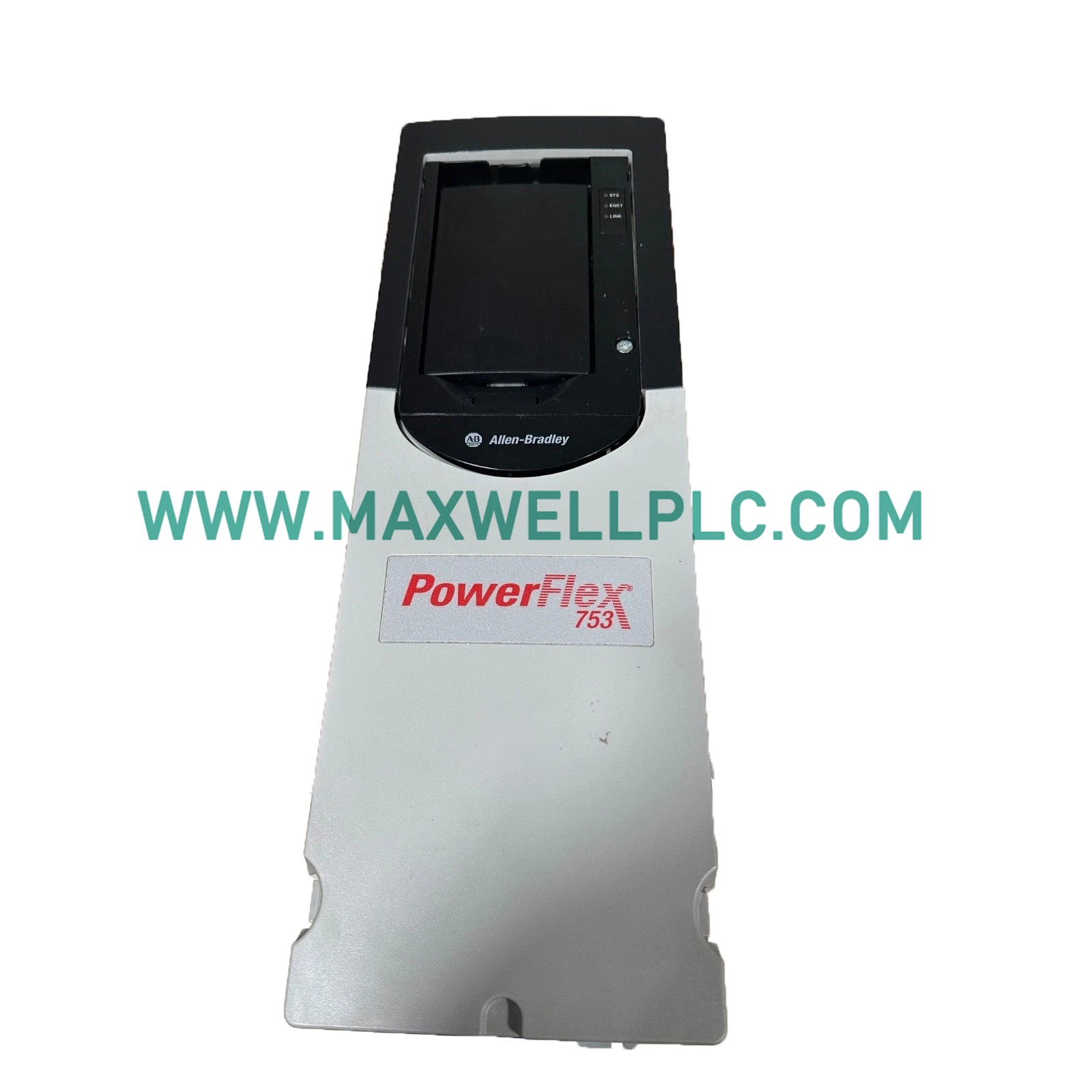

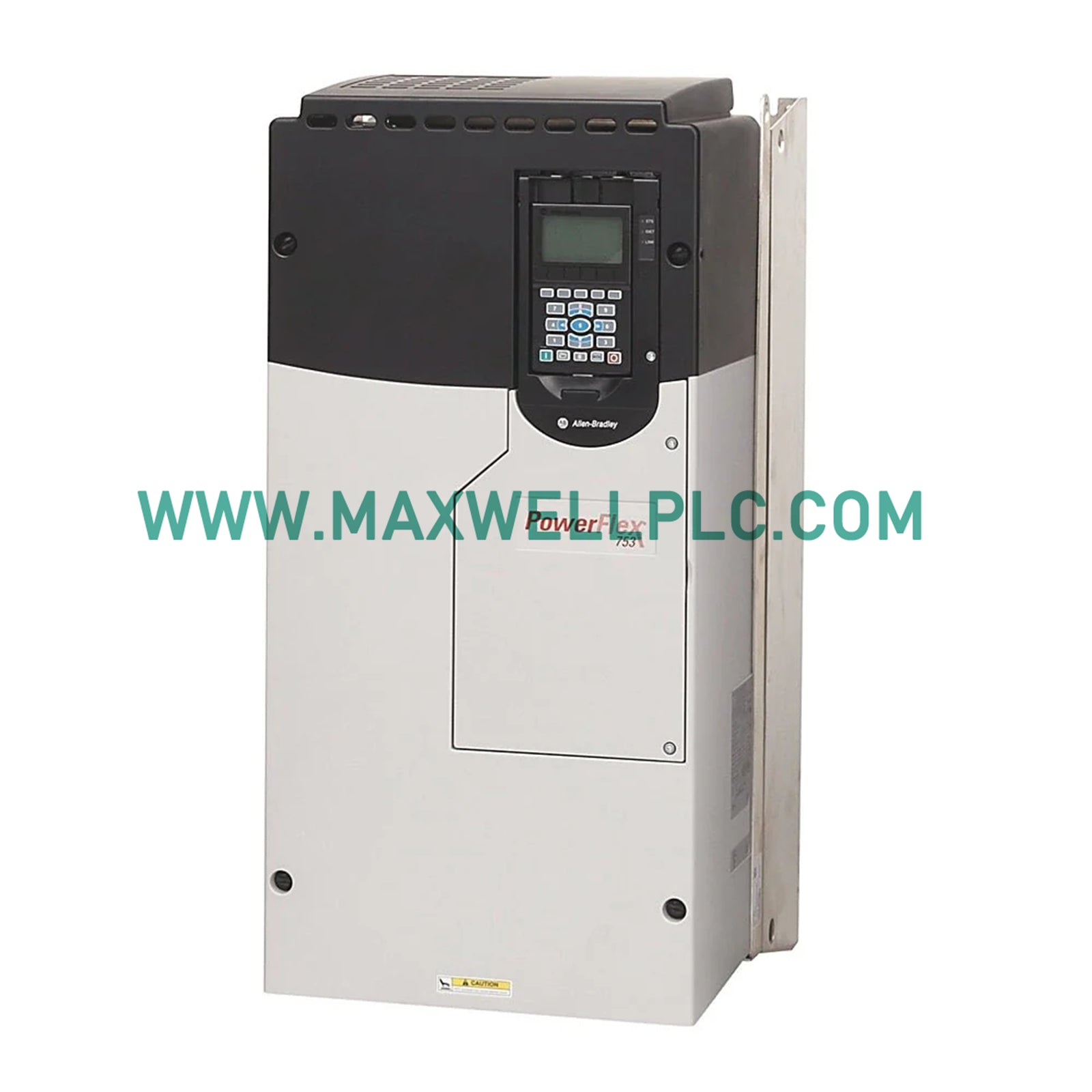

The Allen-Bradley 20F11NC5P0JA0NNNNN serves as the primary PowerFlex 753 AC Drive utilized to execute speed and torque regulation of three-phase induction motors across factory automation platforms.

Physical and Electrical Parameter Array

Deterministic Network Architecture and Firmware Execution

The variable frequency drive interfaces with host processing units via high-velocity backplane bus communication channels. Deterministic networks, such as EtherNet/IP topologies, enable real-time parameter tracking and drive synchronization. Firmware flash compatibility ensures unified control execution profiles across connected Logix architectures, optimizing overall I/O density scaling.

Procurement Package Content

• 1 x 20F11NC5P0JA0NNNNN AC Drive

• 1 x Embedded I/O Connector Kit

Field Installation Procedures

• Mechanical Placement

  Mount the Frame 2 open chassis vertically inside a protective industrial enclosure panel to prevent dust accumulation. Maintain standard clearance zones for forced air exhaust paths.

• Electrical Termination

  Connect the line power conductors to the AC input or common DC bus lines to the DC terminals. Verify that the pre-installed common mode jumper matches the plant grid grounding topology.

• Wiring Constraints

  Route low-voltage embedded I/O signal circuits through dedicated pathways isolated from high-power input and motor wiring to mitigate electromagnetic interference.

Field Infrastructure Verification

• Is this drive configuration hot-swappable?

  No, this power conversion device cannot be serviced or disconnected while energized. The main distribution source must be isolated before performing terminal maintenance.

• Does this model contain an internal dynamic braking transistor?

  Yes, this specific unit includes an internal dynamic braking transistor. Dynamic braking profiles require additional external power dissipation resistor elements.

• What is the enclosure environmental rating?

  The drive chassis features an IP20/IP00 NEMA/UL Open Type layout, which requires deployment inside a secondary control cabinet for environment shielding.

• Can this model interface directly with a common DC bus system?

  Yes, this hardware profile provides an AC input topology alongside DC link terminal connections, enabling deployment within centralized common DC bus distribution loops.

• How is the internal filtering jumper utilized?

  The pre-installed jumper connects the internal filter capacitance networks to ground. Configuration must be verified against the plant grounding infrastructure type.

• What cooling method does this frame configuration use?

  Thermal energy management is completed via a forced air cooling cycle passing straight through the internal aluminum heat sink block assembly.

• How does firmware flash compatibility affect operation?

  The internal power module firmware structure must match the host controller hardware definitions to avoid data structure tracking faults during runtime loops.

• What interface option is included with this specific module?

  This unit is delivered with a HIM Blank, meaning no Human Interface Module is installed on the front panel faceplate.
