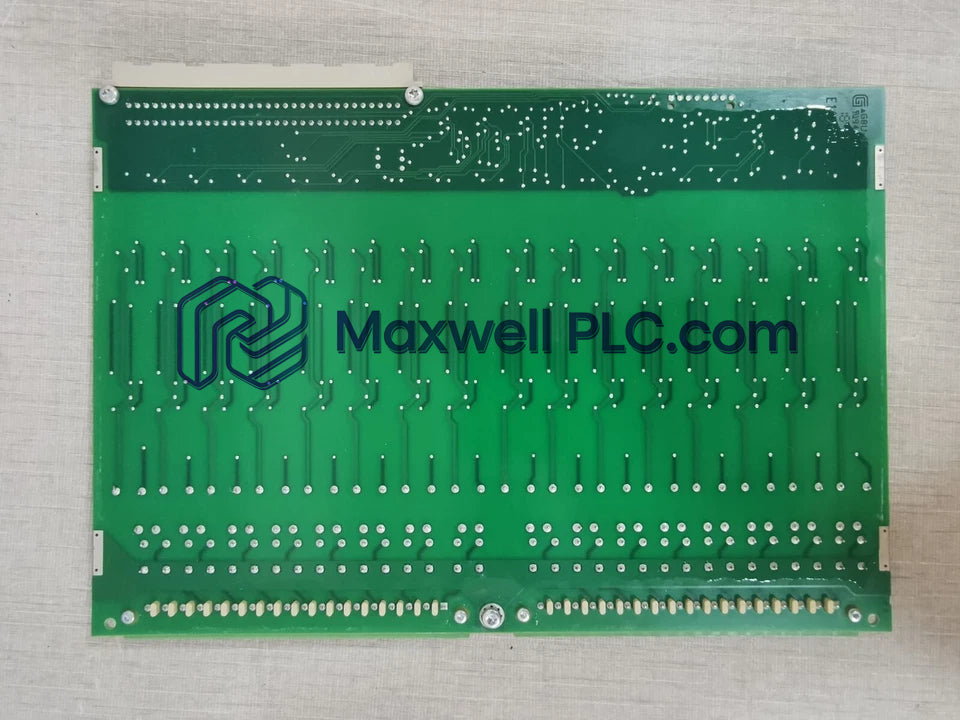

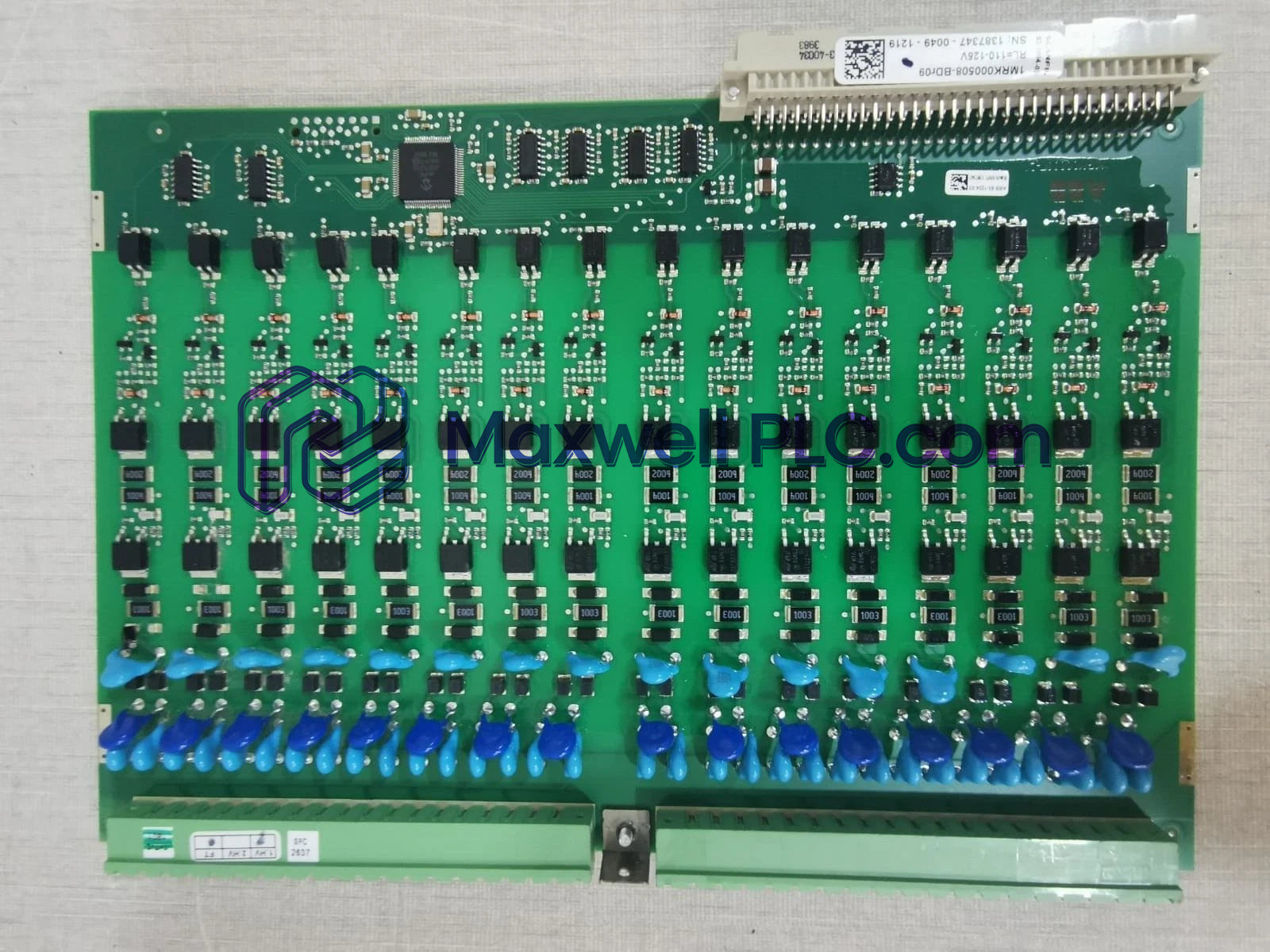

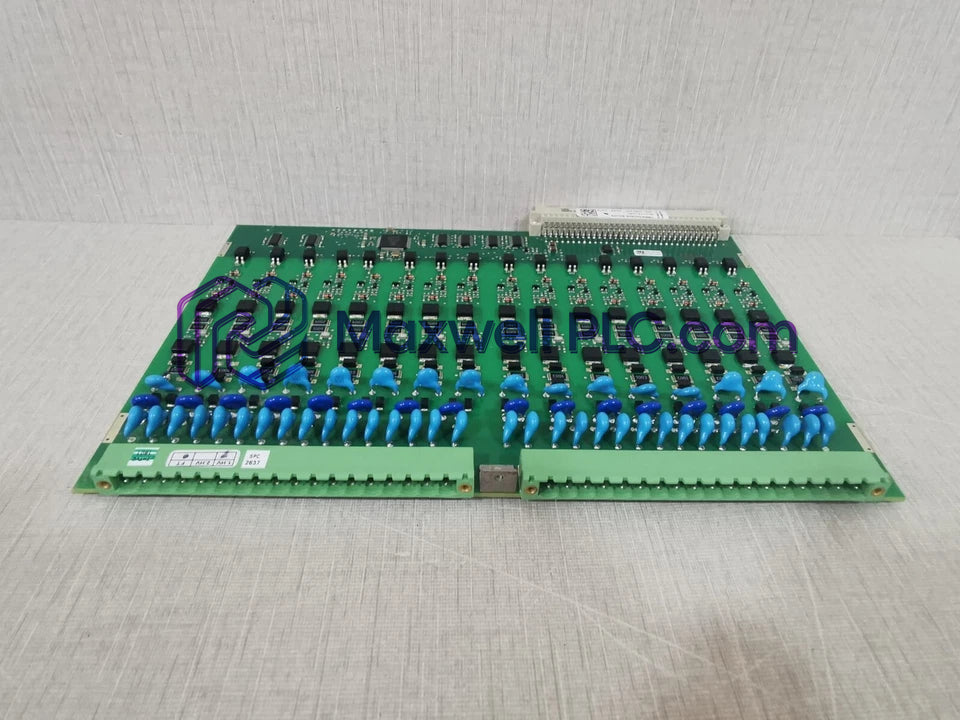

Configured for discrete signal acquisition in industrial protection and control platforms, the ABB 1MRK000508-BDr04 (1MRK000508-BD) Binary Input Module provides direct physical/electrical execution.

Ordering & Variant Structure

• Primary Part Number: 1MRK000508-BDr04
• Spare Part Model: 1MRK000007-21
• Tariff Identification: 8537101190
• Manufacturing Origin: Sweden

Core Technical Parameters

System Bus Architecture and Backplane Velocity

The 1MRK000508-BDr04 binary input module integrates directly into high-speed rack backplanes, maintaining deterministic signal transfer without bus latency bottlenecks. Firmware flash compatibility ensures seamless backplane communication with master CPU controllers. The high I/O density scaling allows 16 isolated channels to process status signals in real time while minimizing power overhead across the system architecture.

Package Contents

• 1 x ABB 1MRK000508-BDr04 Binary Input Module
• 1 x Protective Anti-Static Packaging Sleeve

On-Site Installation Rules

Power Isolation & Insertion

• De-energize the rack or subrack power supply prior to inserting or extracting the module.
• Verify backplane connector pins are free from mechanical deflection or debris before insertion.

Wiring and Shielding

• Route field input conductors separately from high-voltage motor or drive cables to prevent inductive coupling.
• Maintain a continuous shield ground connection at the cabinet entry point using standard grounding clamps.

Technical Questions and Answers

• Does the 1MRK000508-BDr04 support hot-swapping during system operation?

  De-energizing field power and rack backplane connections before replacement is required to avoid potential transient faults.

• What is the input threshold voltage for signal activation?

  The internal detection circuitry turns on at a minimum threshold of 18 VDC across the input terminals.

• What is the level of isolation between field inputs and logic circuits?

  The module features high-potential galvanic isolation rated up to 2 kV AC between channels and internal logic.

• Can the input channels accept alternating current (AC) inputs?

  Yes, the input channel hardware accepts both direct current (DC) and alternating current (AC) in the range of 24-250 V.

• How does the module react under ambient sub-zero temperatures?

  The components are specified for cold environments down to -40 deg C without operating drift or signal loss.

• What is the typical current draw per channel at nominal voltage?

  Each input channel draws between 2 mA and 5 mA when energized at 24 VDC nominal field voltage.

• Are additional diagnostic indicators present on the hardware assembly?

  Front-panel status indicators reflect physical channel states and backplane power rail availability directly.

• What thermal dissipation considerations are required inside the enclosure?

  The module consumes a maximum of 3 W, contributing minimal heat load within sealed control enclosures.
