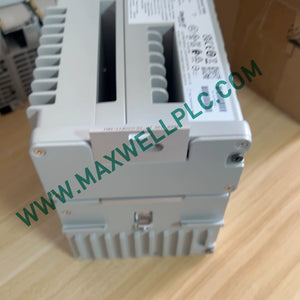

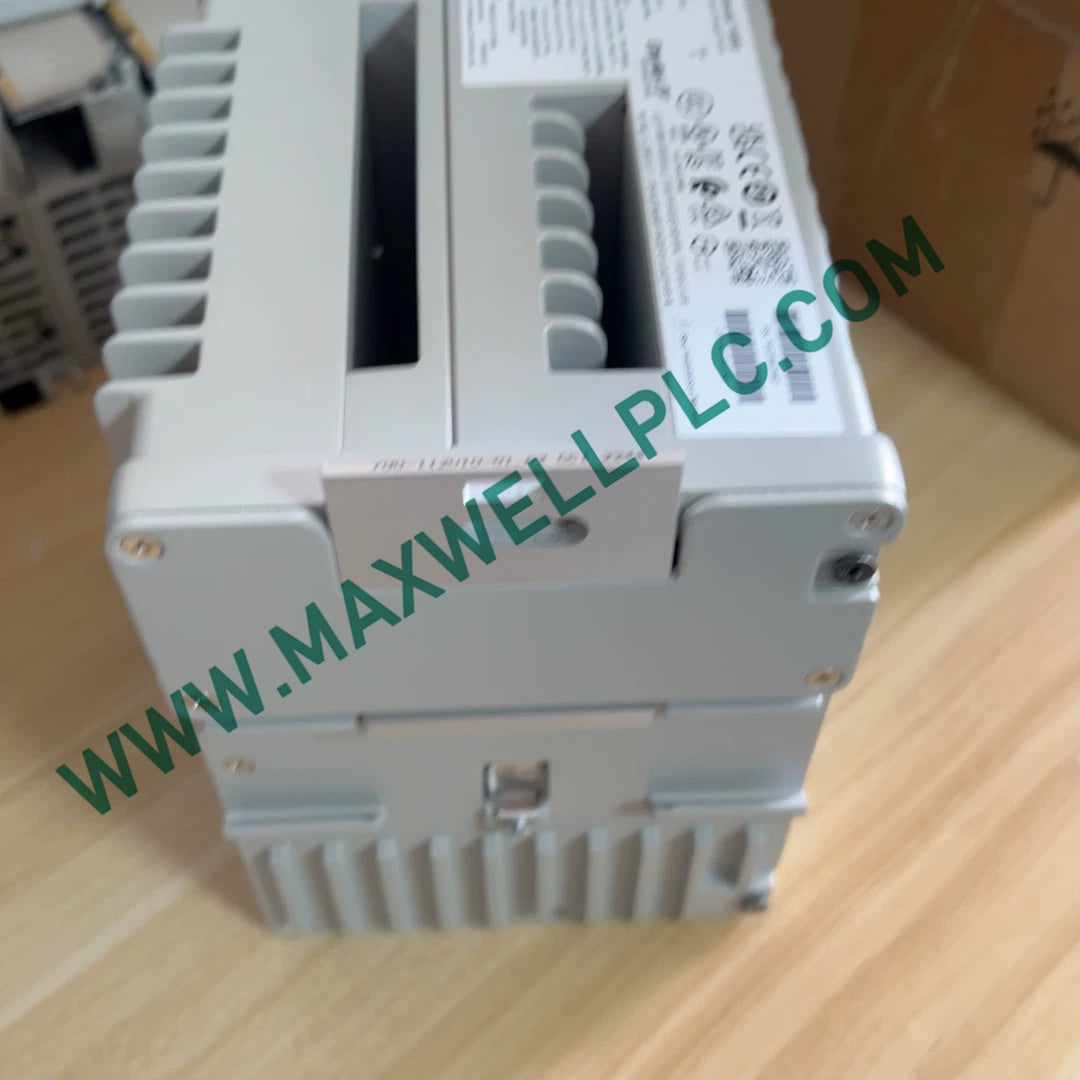

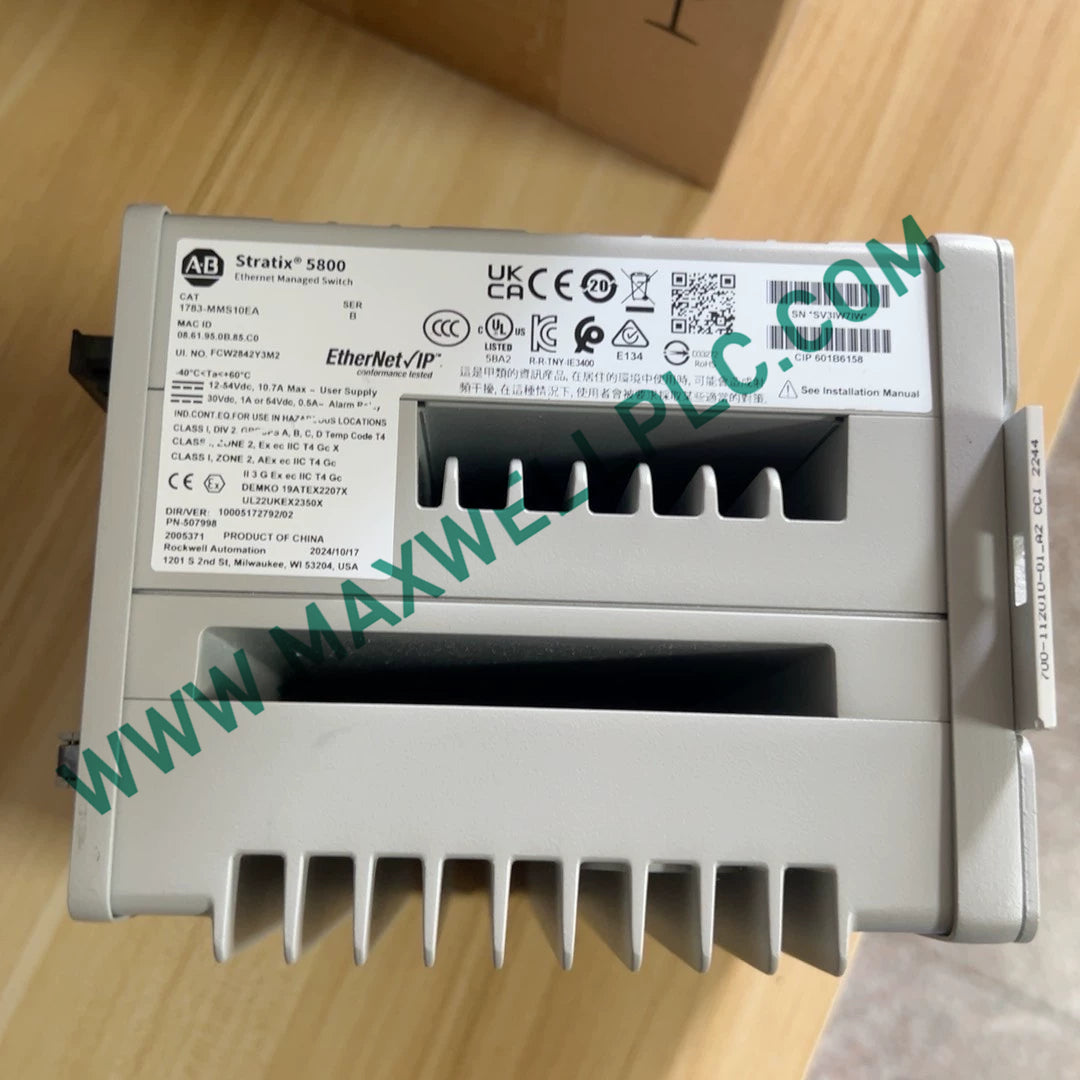

The Allen-Bradley 1783-MMS10, also cataloged as the 1783-MMS10 Managed Ethernet Switch, operates as a dedicated hardware component for industrial Ethernet packet switching and dynamic network traffic management within EtherNet/IP Network architectures.

Product Matrix and Identifier Breakdown

• 1783: Allen-Bradley Stratix industrial networking platform identifier.
• MMS: Modular managed switch base hardware configuration.
• 10: Total embedded port capability supporting up to 10 network connections.

Module Hardware Specifications

Deterministic Network Operations and Firmware Integrity

The switch leverages integrated EtherNet/IP deterministic networks execution engines to maintain layer-2 prioritization for high-density I/O traffic profiles. Internal firmware flash compatibility provides automated operating system image restoration and configuration file validation across hardware reboot events. Memory allocation guarantees predictable packet routing, minimal latency jitter, and continuous backplane bus communication velocity across modular expansion units.

Modular Base Package Items

• 1 x Allen-Bradley 1783-MMS10 Stratix 5800 Managed Switch Base
• 1 x Dual-input Removable Power Supply Terminal Connector
• 1 x Console Adapter Plug Assembly

Panel Installation and Connection Rules

• Rail Attachment

  Latch the rear mounting spring bracket directly onto a standard 35 mm DIN rail until the bottom lock engages securely.

• Frame Grounding

  Run a short, high-frequency 10 AWG copper ground strap from the enclosure earth screw directly to panel ground.

• Network Cabling

  Use shielded twisted-pair Cat 6 Ethernet cables and connect drain wires directly to metallic RJ45 port frames.

• Power Terminal Wiring

  Wire dual 12-48 VDC power channels to the removable terminal plug and torque terminal screws to 0.6 Nm.

• Heat Clearance Space

  Provide a minimum physical gap clearance of 50 mm above and below the switch chassis to allow natural convection cooling.

Technical Performance Questions

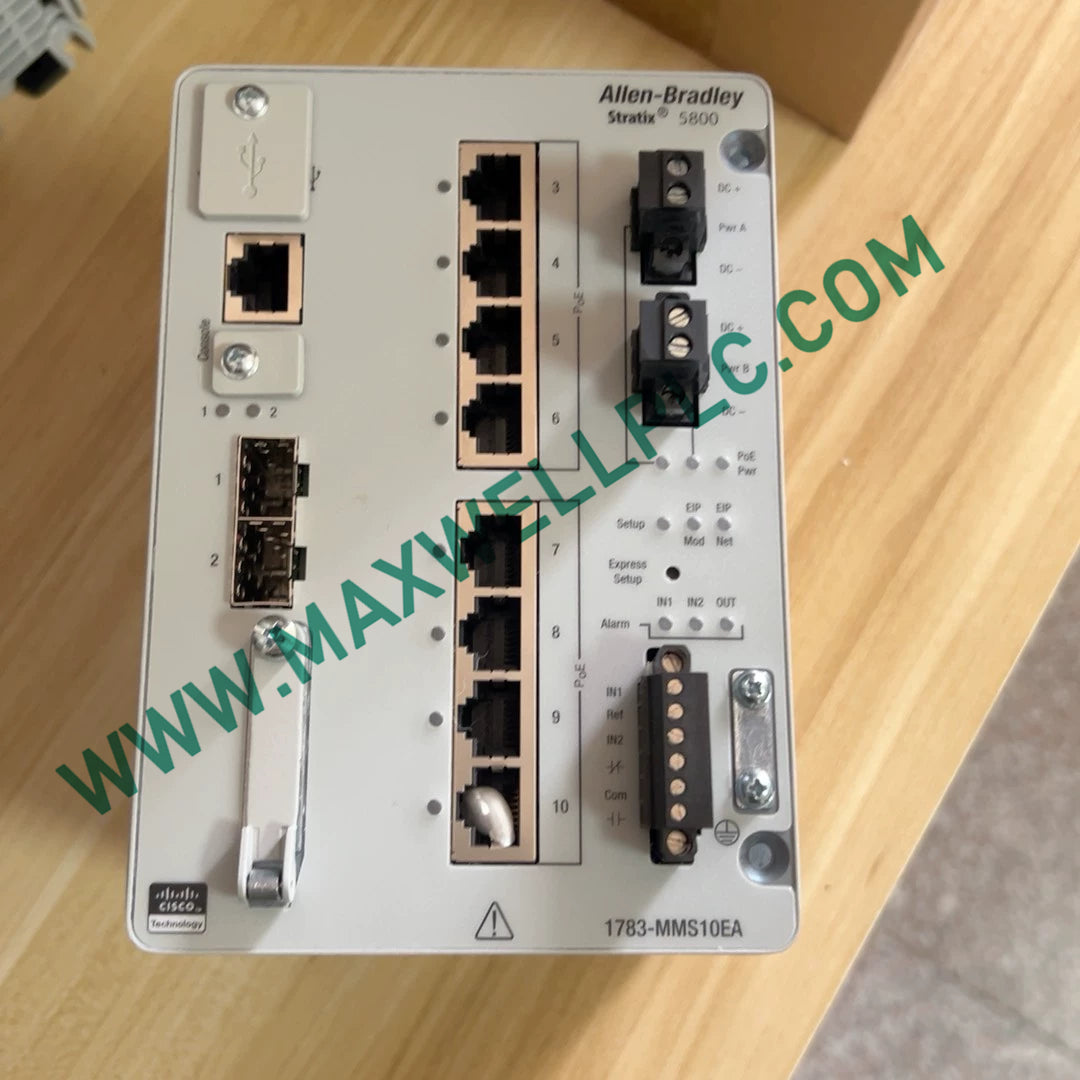

• What physical port interface configuration is provided on the base 1783-MMS10 switch?

  The base unit provides 10 fixed ports, comprising 6 copper RJ45 10/100/1000Base-T ports and 4 Gigabit SFP slot interfaces.

• What supply voltage range is supported for the main DC power connection?

  The internal power supply circuit accepts nominal DC inputs spanning from 12 VDC to 48 VDC across redundant terminal connections.

• Can optional expansion I/O modules be hot-swapped while the base unit is running?

  Expansion modules attached to the side expansion connector require system power isolation prior to physical connection or removal.

• What ambient operating temperature envelope applies to cabinet installations?

  The switch maintains standard rated operational performance within an ambient thermal window between -40 deg C and 60 deg C.

• What network redundancy topologies are supported natively by the internal operating system?

  The switch natively supports Device Level Ring (DLR), Resilient Ethernet Protocol (REP), and Spanning Tree Protocols (STP/RSTP/MSTP).

• What is the maximum power consumption rating for the base hardware unit?

  Under full network traffic load and active port execution, maximum power dissipation reaches a limit of 30 W.

• How is local maintenance access achieved for diagnostic switch setup?

  Direct local diagnostics and command-line maintenance are accessed using the dedicated front console interface port.

• What ingress protection level does the metal chassis housing provide?

  The unit features an IP30 rated open-style metal enclosure designed for installation inside suitable control cabinets.
