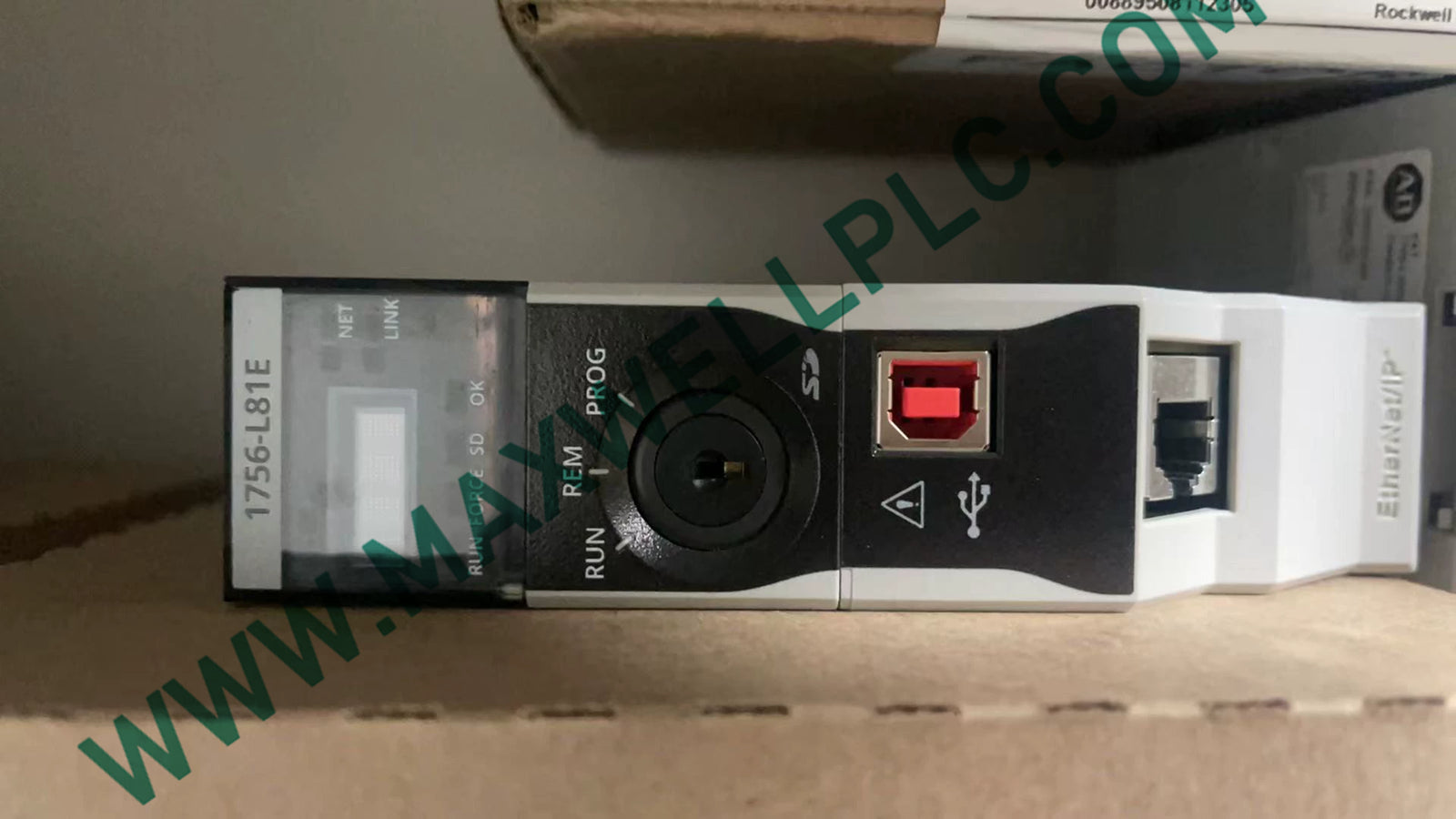

1756-L81E Allen-Bradley ControlLogix 5580 Programmable Controller Module
Allen-Bradley

1756-L81E Allen-Bradley ControlLogix 5580 Programmable Controller Module

SKU: 1756-L81E
Categories : All Products
In Stock
  • Dimensions: 3.5 x 14 x 14.5 cm
  • Country of origin: USA
  • Payment: T/T, Western Union
  • Shipping port: Xiamen
1 years warranty
Delivery time: 3-7 business days
Free 30 days return

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Allen-Bradley 1756-L81E, also cataloged as the 1756-L81E Programmable Controller Module, operates as a dedicated hardware component for high-speed logic execution and industrial network management within ControlLogix 5580 platforms.

Architecture & System Integration

The Allen-Bradley 1756-L81E occupies a single chassis slot within ControlLogix system backplanes (including 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 standard/K series). The unit features 3 MB of user memory paired with a factory-included 2 GB 1784-SD2 Secure Digital card for non-volatile storage. Designed for energy efficiency, it utilizes an internal energy storage module to back up RAM data during power interruption, eliminating external lithium batteries.

Hardware Parameters

Parameter Specification
Model 1756-L81E
Brand Allen-Bradley
Origin USA
Weight 0.4 kg
Shipping Dimensions 3.5 x 14 x 14.5 cm
Operating Temp 0 to 60 deg C
Power Consumption 6.2 W
User Memory 3 MB
Non-Volatile Memory 2 GB (1784-SD2 SD card included)
Backplane Current Draw 1200 mA at 5.1 VDC, 5 mA at 1.2 VDC
Isolation Voltage 50 V continuous
Ethernet Capacity 100 EtherNet/IP nodes (10/100/1000 Mbps port)
Serial/Local Port 1 USB 2.0 port
Discrete I/O Capacity 128000 max
Analog I/O Capacity 4000 max
Tariff Code 8537101190

Deterministic Ethernet & Backplane Bus Communications

The integrated Ethernet port on the 1756-L81E supports deterministic EtherNet/IP networks operating at 10, 100, and 1000 Mbps for up to 100 nodes. High-speed backplane bus communication velocity enables rapid data transfer between the processor and local I/O cards. Asynchronous I/O execution processes updates independently of program scan routines. Firmware flash compatibility over network interfaces permits field upgrades without hardware modification.

Delivery Package Details

  • 1 x 1756-L81E ControlLogix 5580 Controller Module
  • 1 x 1784-SD2 2 GB Secure Digital Card (Pre-installed)
  • 1 x Factory Sealed Protective Packaging

Installation & Wiring Framework

  • Verify chassis backplane power is off before inserting or removing processor modules unless operating in non-hazardous locations.
  • Align the module circuit board with the top and bottom chassis guides and push firmly until top and bottom latches secure.
  • Connect Category 5e or Category 6 shielded industrial Ethernet cabling to the RJ45 port for 1 Gbps network operations.
  • Ensure low-impedance grounding of the ControlLogix chassis to the main enclosure earth busbar to prevent noise interference.
  • Avoid routing Ethernet communication cables in close proximity to high-voltage AC or variable frequency drive power cables.

Hardware FAQ

  • What is the total current requirement from the backplane for the 1756-L81E?

    The controller draws 1200 mA at 5.1 VDC and 5 mA at 1.2 VDC from the backplane, resulting in total internal power dissipation of 6.2 W.

  • Does the 1756-L81E require a lithium battery for RAM memory retention?

    No, the unit uses an integrated maintenance-free energy storage solution to write volatile memory to non-volatile memory during power loss.

  • How many EtherNet/IP nodes are supported natively by the embedded port?

    The onboard RJ45 Ethernet port supports up to 100 EtherNet/IP nodes and handles speeds of 10, 100, and 1000 Mbps.

  • What non-volatile storage card is compatible with this processor?

    The module includes and supports the 1784-SD2 2 GB Secure Digital (SD) card for non-volatile project backup and restore operations.

  • Which ControlLogix chassis models accept the 1756-L81E processor?

    It mounts into any standard slot of ControlLogix 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 chassis (including standard and conformal coated K-versions).

  • How does asynchronous I/O execution affect logic programming on this model?

    Because I/O data updates asynchronously to the logic scan, critical input signals referenced multiple times within a single scan routine should be buffered.

  • What maximum discrete and analog I/O point counts can this controller manage?

    The 1756-L81E handles up to 128,000 discrete input/output points and up to 4,000 analog input/output points across supported networks.

  • What continuous isolation rating is specified for the 1756-L81E assembly?

    The module provides a continuous isolation voltage rating of 50 V between system logic circuits and the communication ports.
