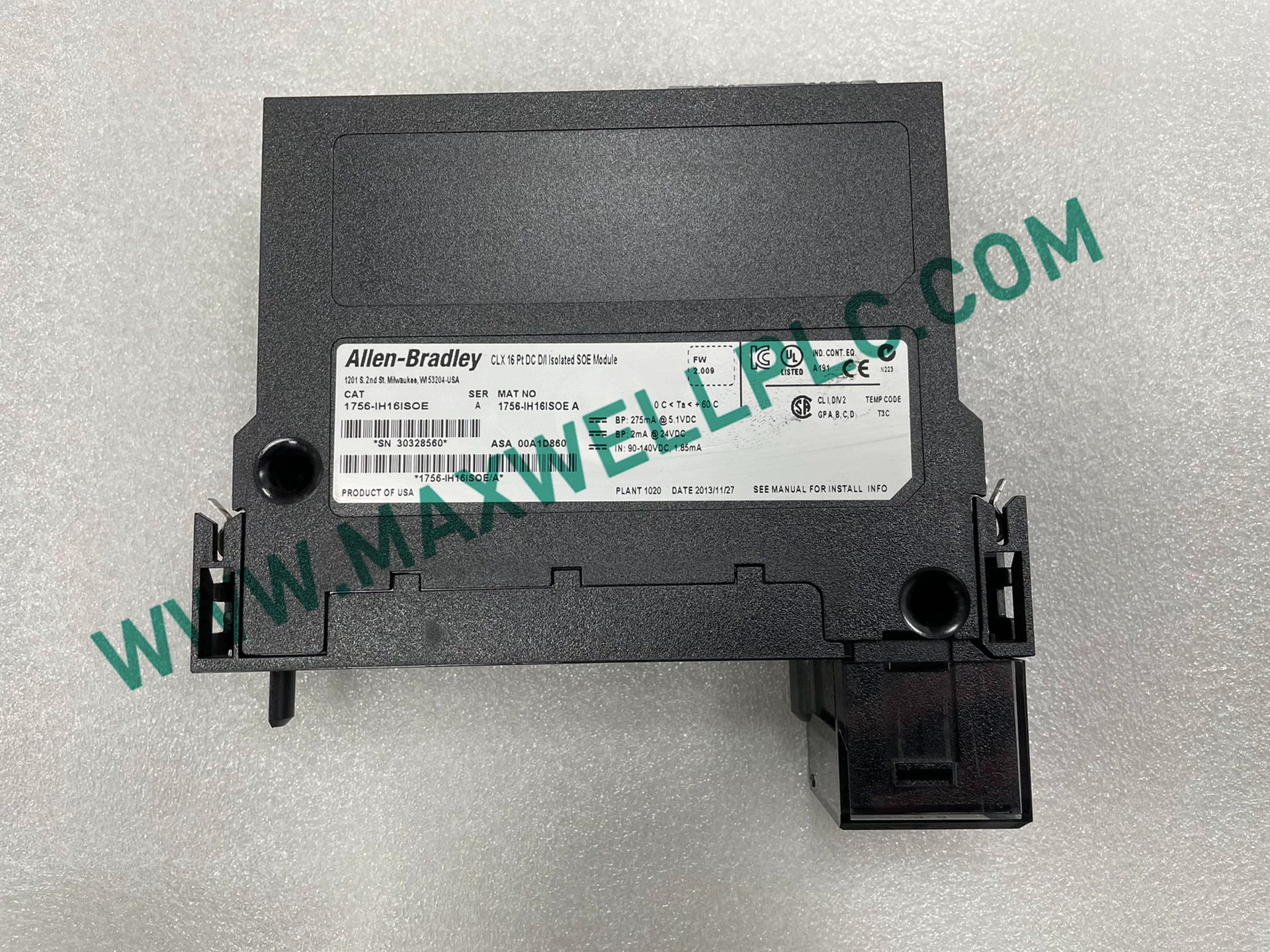

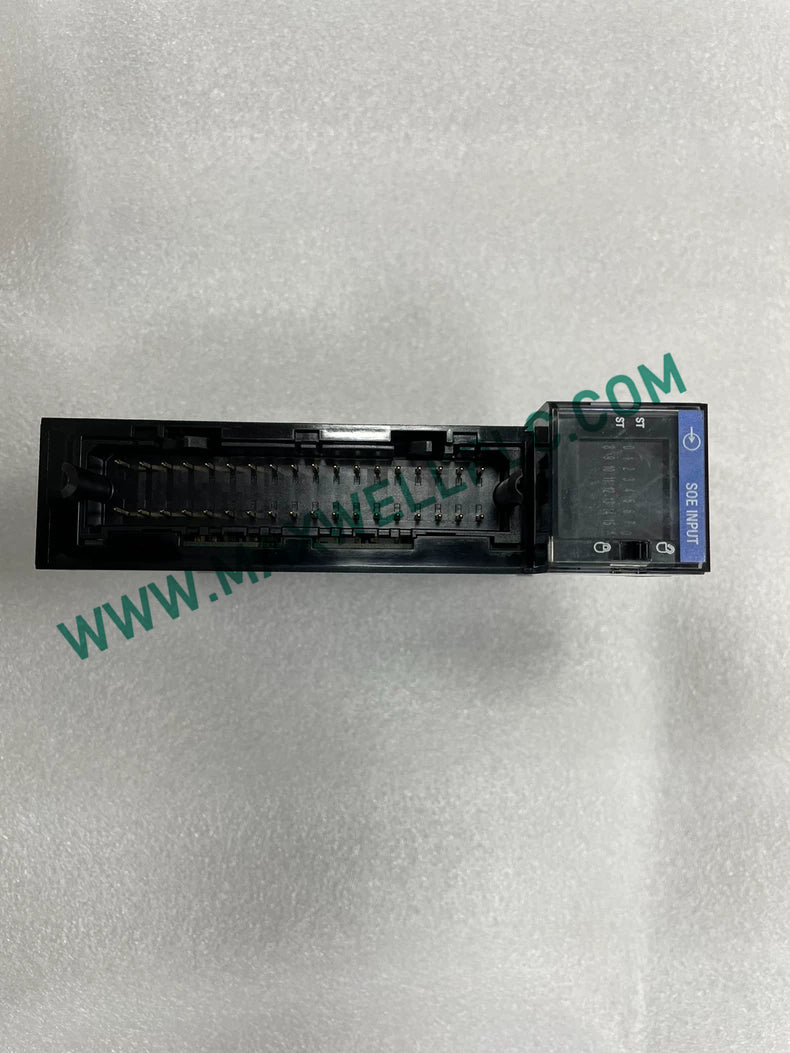

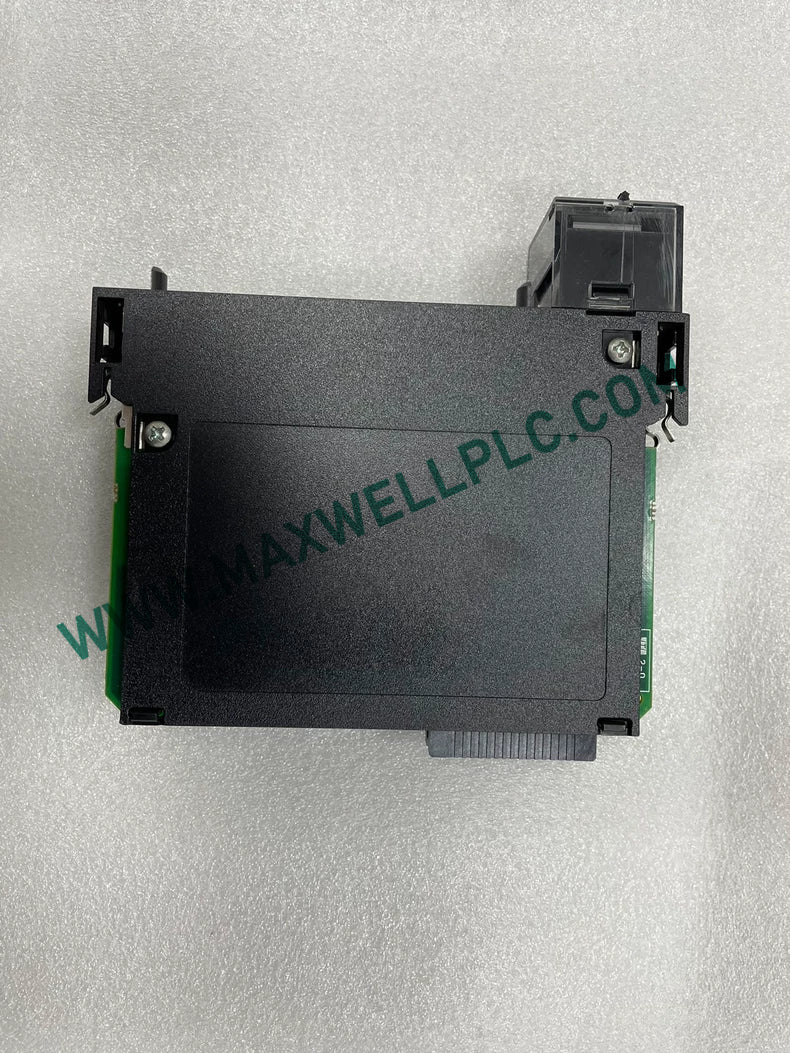

Configured for high-speed event monitoring and signal isolation in ControlLogix platforms, the Allen-Bradley 1756-IH16ISOE (1756-IH16ISOE Digital Isolated Input Module Series of Events) provides direct physical/electrical execution. It interfaces 125 VDC discrete field devices to the system backplane, enabling precise time-stamping of input state changes for diagnostic analysis.

Catalog Designation & Feature Breakdown

• 1756: ControlLogix chassis-based I/O system platform.
• IH: Digital isolated input module rating operating at 125 VDC nominal voltage.
• 16: 16 individually isolated input channels preventing ground loops between circuits.
• ISOE: Sequence of Events functionality providing sub-millisecond timestamp resolution.

System Parameters & Electrical Performance

Backplane Integration & Deterministic Communication

The module utilizes high-speed backplane bus communication velocity to transmit timestamped channel events directly to the controller. Ethernet/IP deterministic networks synchronize the internal clock across distributed chassis, maintaining SOE timestamp integrity across complex control architectures. Channel-to-channel galvanic isolation prevents cross-circuit interference while maintaining I/O density scaling inside the standard ControlLogix form factor. Firmware flash compatibility ensures seamless integration with Studio 5000 Logix Designer environments.

Package Contents

• 1 x Allen-Bradley 1756-IH16ISOE module sealed in anti-static packaging
• 1 x Factory documentation insert with installation wiring diagrams

Physical Mount & Cabinet Wiring Rules

• Key the Removable Terminal Block (RTB) or Wiring Arm prior to insertion to prevent improper backplane alignment.
• Maintain minimum 50 mm clearance around chassis enclosure vents for proper convection airflow.
• Route high-voltage DC field signal lines away from low-voltage communication cabling inside panel wireways.
• Ensure ground drain wires connect to the central enclosure ground bus using short, low-impedance leads.

Hardware Technical FAQ

• What is the time-stamping resolution for Sequence of Events logging?

  The module records input state transitions with sub-millisecond accuracy, referencing the local chassis clock synchronized across the control backplane.

• Does each input channel require an independent power source?

  Channels are individually isolated, allowing connection to distinct 125 VDC control circuits or a shared power supply without common ground ties.

• What happens if a field signal falls into the off-state voltage range?

  The channel drops to an off-state when current falls below 0.3 mA, ensuring noise immunity against stray induced voltages on field wiring.

• Can this module be inserted into a backplane while under power?

  Yes, RIUP (Removal and Insertion Under Power) is supported, though field signal power should be disconnected from the RTB during maintenance.

• How much current does the unit draw from the 5 VDC backplane bus?

  The logic board consumes 275 mA at 5 VDC from the backplane, which must be factored into total chassis power supply sizing.

• What is the purpose of selecting input filter times during configuration?

  Filtering suppresses mechanical contact bounce and electrical noise, preventing false trigger registrations in the SOE event log.

• How does channel isolation protect the main controller platform?

  Optical isolation barriers rating up to continuous field voltages prevent high-voltage surges from penetrating the chassis backplane logic circuitry.

• What Removable Terminal Block (RTB) assemblies are compatible?

  It interfaces with 36-pin RTBs such as the 1756-TBCH or 1756-TBS6H, which must be ordered separately based on terminal screw preference.
