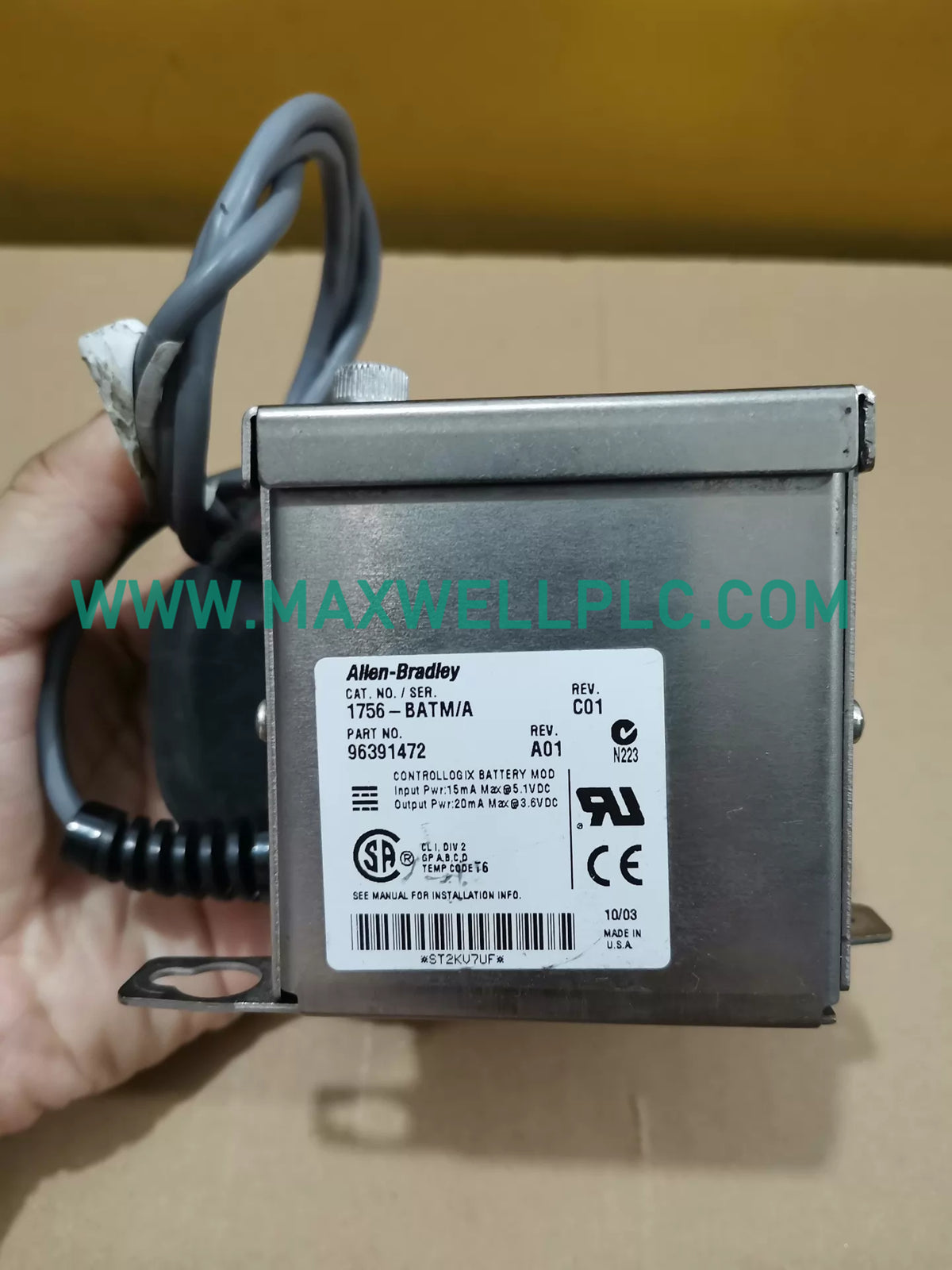

Configured for controller memory retention in ControlLogix systems, the Allen-Bradley 1756-BATM (1756-BATM Lithium Battery Assembly) provides direct electrical backup support for maintaining stored data during controller power interruption conditions.

Model Identification

The 1756-BATM is an externally mounted lithium battery assembly designed for Allen-Bradley ControlLogix controller systems. The assembly provides backup power support for memory retention functions and is installed with a horizontal mounting orientation.

Hardware Specifications

ControlLogix System Compatibility

The 1756-BATM is part of the ControlLogix hardware platform and functions as a dedicated battery assembly for controller memory backup applications. The component interfaces with the controller system through the specified battery connection arrangement rather than standard I/O communication channels.

ControlLogix hardware configuration requires correct battery installation and firmware-compatible controller operation. The battery assembly supports system data retention requirements during loss of external power.

Industrial Control Backup Characteristics

Allen-Bradley ControlLogix systems use structured hardware identification and firmware compatibility management for module operation. The 1756-BATM supports firmware flash compatibility checks through the controller platform, ensuring that installed hardware components match the configured ControlLogix architecture.

The battery assembly is not an I/O processing device and does not provide EtherNet/IP or ControlNet communication functions. Its electrical role is limited to backup energy supply for supported controller memory retention operations.

Ordering Information

• 1 x Allen-Bradley 1756-BATM ControlLogix Lithium Battery Assembly
• 1 x External battery assembly housing
• Installation accessories are supplied according to the ordered hardware configuration

Field Installation Guidelines

• Install the battery assembly in the specified ControlLogix system configuration.
• Follow the controller manufacturer's battery replacement and connection procedure.
• Verify battery connection polarity before energizing the control system.
• Install the assembly in a clean environment protected from conductive contamination.
• Maintain proper cabinet grounding and wiring separation practices.
• Confirm controller status after installation to verify normal battery monitoring operation.

Frequently Asked Questions

• What is the main function of the 1756-BATM?

The 1756-BATM provides lithium battery backup support for ControlLogix controller memory retention functions during external power interruption.

• Is the 1756-BATM an I/O communication module?

No. The 1756-BATM is a battery assembly and does not process field signals or provide network communication functions.

• What battery type is used in the assembly?

The 1756-BATM uses an externally mounted lithium battery configuration for ControlLogix system backup applications.

• What mounting orientation is specified for the module?

The supplied specification identifies horizontal mounting for the 1756-BATM battery assembly installation.

• What is the maximum power dissipation of the assembly?

The maximum listed power dissipation for the 1756-BATM is 4.5 W under the specified operating conditions.

• Can the 1756-BATM replace standard ControlLogix I/O modules?

No. The assembly performs battery backup functions only and does not occupy an I/O processing role.

• What backplane current values are listed with this assembly?

The supplied data lists 10 A at 5 VDC and 2.8 A at 24 VDC for the associated ControlLogix system specification.

• What installation checks are required after replacement?

Verify physical connection, battery status indication, controller operation, and correct memory retention behavior after installation.
