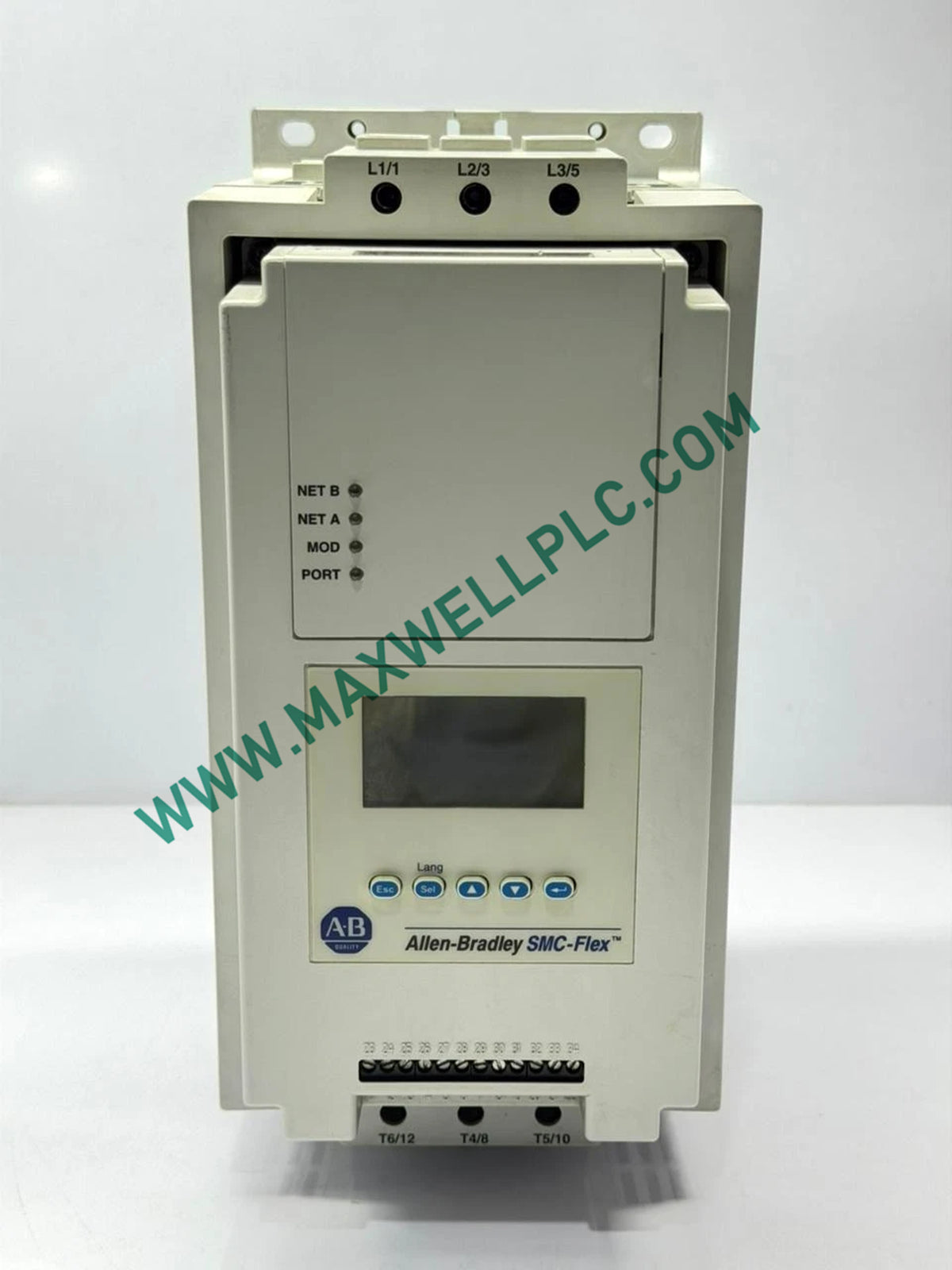

Configured for reduced-voltage solid-state motor starting in 3-phase industrial power circuits, the Allen-Bradley 150-F5NBDB (150-F5NBDB Smart Motor Controller) provides direct physical/electrical execution for controlled torque acceleration, pump deceleration, and current limiting.

Catalog Number Structure & Options

• 150-F5: SMC Flex controller platform with integrated solid-state power thyristors.
• N: Open enclosure design requiring installation inside an appropriate industrial cabinet.
• B: 5 A continuous current rating corresponding to 0.5 to 3.0 hp motors at 460 VAC.
• D: 200...460 VAC 3-phase line input operating range at 50/60 Hz.
• B: 100...240 VAC control voltage interface.

Technical Performance Data

Network Connectivity & Flash Parameter Compatibility

The solid-state controller incorporates dedicated control algorithms to interface seamlessly with upstream network modules. Firmware flash compatibility ensures parameter preservation across communication option cards, maintaining EtherNet/IP deterministic network timing for start/stop feedback, fault telemetry, and operating current status without degradation of system response.

Package Shipping List

• 1 x Allen-Bradley 150-F5NBDB Smart Motor Controller
• 1 x User Installation Manual

Field Wiring & Mounting Procedure

• Cabinet Mounting Orientation
  • Install the open-enclosure chassis vertically on a flat panel to ensure adequate airflow across thermal heat sink fins.
• Power Conductor Routing
  • Terminate 3-phase line conductors to terminals L1, L2, L3 and motor leads to T1, T2, T3 according to marked torque values.
• Control Power Isolation
  • Connect the 100...240 VAC control power supply to dedicated control terminals using shielded wire paths.
• Grounding Compliance
  • Attach a dedicated equipment grounding conductor directly to the chassis frame terminal before applying line power.

Technical Operations FAQs

• What is the continuous current rating for the 150-F5NBDB controller?

  The controller has a rated continuous operational current of 5 A for 3-phase induction motors.

• What control voltage must be supplied to the control terminals?

  The module requires an independent control voltage supply between 100 VAC and 240 VAC at 50/60 Hz.

• Is hot-swapping allowed for power connections during operation?

  No, main line AC power and control voltage must be isolated prior to wiring or physical servicing.

• What motor power range is supported at 460 VAC line voltage?

  The unit supports 3-phase induction motor loads rated from 0.5 hp up to 3.0 hp at 460 VAC input.

• Does the unit require an external enclosure for panel mounting?

  Yes, as an open enclosure unit, it must be mounted inside a NEMA or IP rated protective enclosure.

• How does the unit support pump control applications?

  Integrated microcode provides timed acceleration and deceleration ramps to eliminate fluid hammer in piping systems.

• What line voltage range can be applied across the power poles?

  The power circuit accepts 3-phase line voltages ranging from 200 VAC to 460 VAC at 50/60 Hz.

• How are communication adapters integrated with the unit?

  Option cards install into dedicated control ports, ensuring firmware flash compatibility across network nodes.
