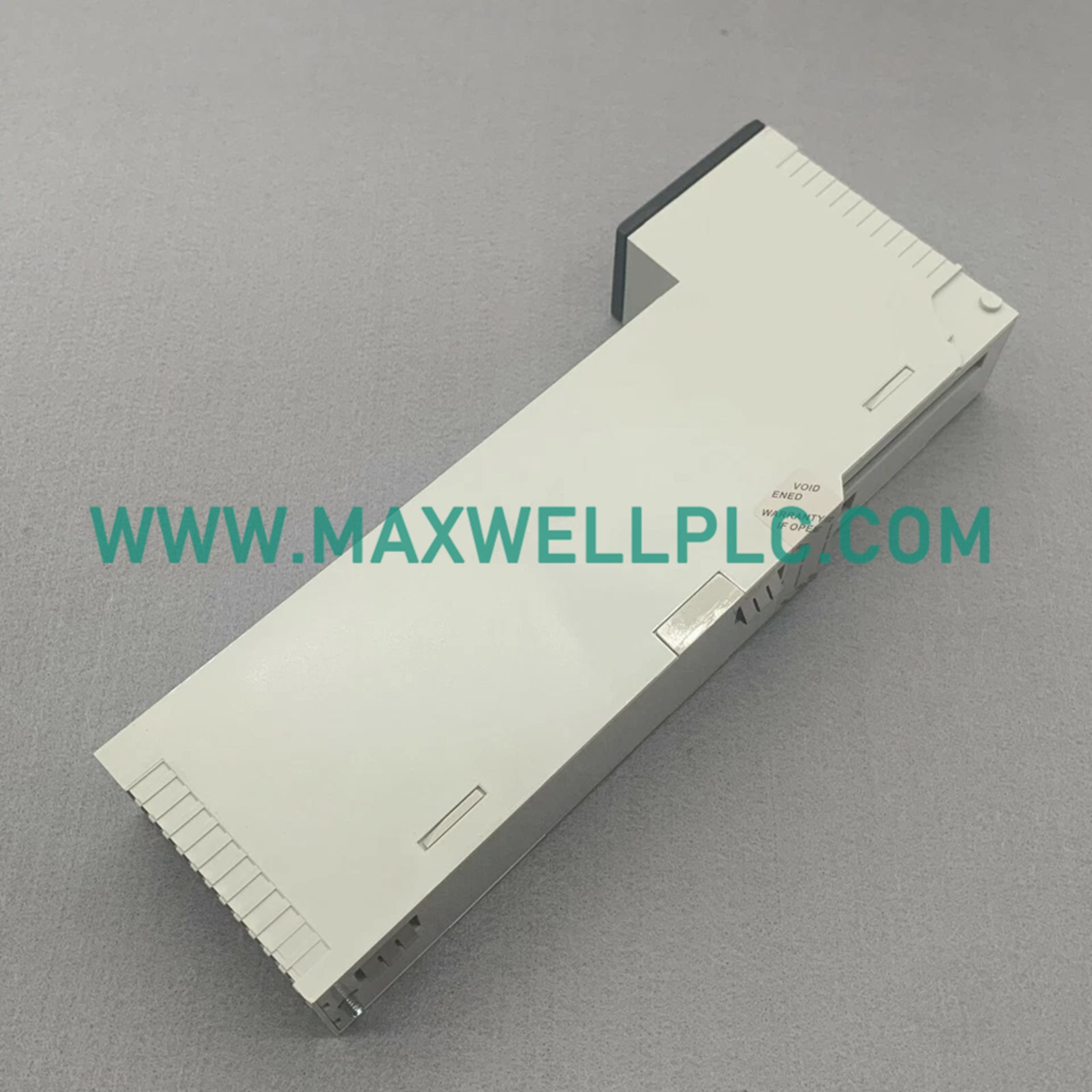

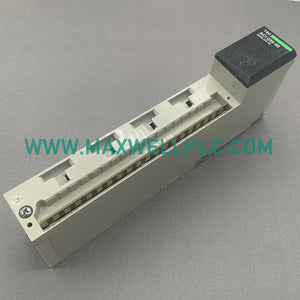

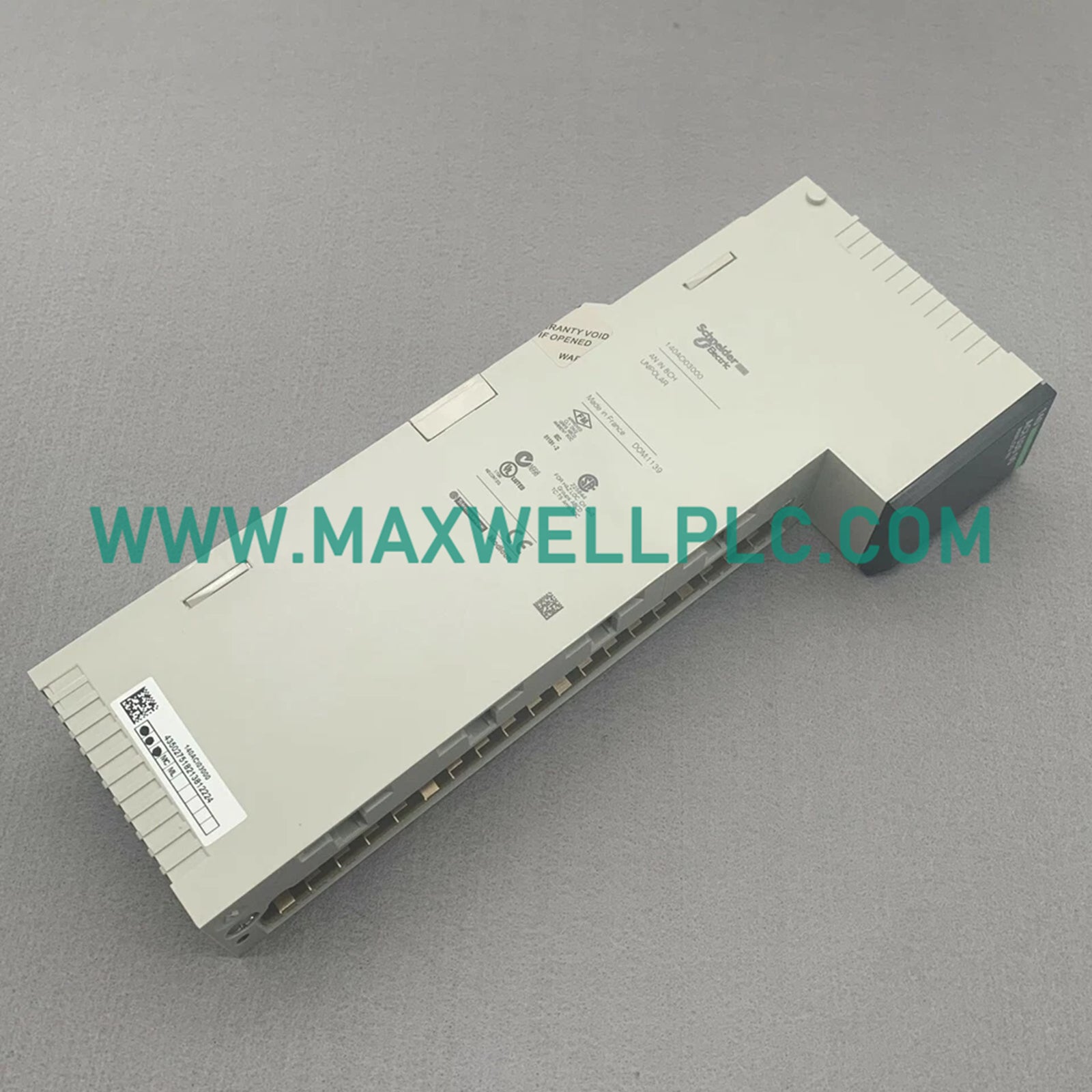

Configured for high-precision signal acquisition in Modicon Quantum automation platforms, the Schneider Electric 140ACI03000 (140ACI03000 Analogue Input Module) provides direct physical electrical execution for 8 differential analogue input channels across industrial control architectures.

Suffix Breakdown & Model Matrix

The 140ACI03000 identifies a standard-format analogue input module supporting 12-bit resolution. The model signifies a multi-range configuration capable of processing both 1 V to 5 V voltage signals and 4 mA to 20 mA current loops, utilizing a single-pole low-pass filter with a -3 dB cutoff at 15 Hz to mitigate high-frequency noise.

Hardware Specifications

Modicon Quantum Backplane Bus Communication Velocity

The Modicon Quantum architecture requires precise backplane bus communication velocity to maintain real-time data integrity. The 140ACI03000 requires 9 input words for data mapping. System performance is contingent upon ensuring that I/O density scaling does not exceed the module's 5 ms update time. Engineers must account for the deterministic nature of the Quantum rack bus to ensure firmware flash compatibility and synchronous data exchange during high-speed process monitoring.

Ordering Info

• 1 x 140ACI03000 Analogue input module

• Note: Field wiring should be verified for loop impedance requirements; 250 Ohm resistors are integrated for current mode operation.

Field Installation Guidelines

• Mounting: Seat the module into the designated Modicon Quantum rack slot. Ensure the backplane connector is fully engaged and the module is secured by the mechanical latch.

• Shielding: Utilize shielded twisted pair cabling for all differential inputs. Ground the shield at the cabinet entry point to minimize electromagnetic field interference (10 V/m rating).

• Protection: Ensure field signal levels do not exceed the 50 VDC / 25 mA absolute maximum input thresholds to prevent permanent hardware damage.

• Environment: Install within an IP20 environment. Ensure the rack chassis is bonded to a low-impedance earth ground to satisfy electrostatic discharge (4 kV contact / 8 kV air) requirements.

Frequently Asked Questions

• Q: Is the 140ACI03000 hot-swappable?

  A: Yes, this module supports hot-swapping within a powered Modicon Quantum rack, allowing for maintenance without interrupting the backplane communication.

• Q: What is the isolation level between channels and the bus?

  A: The module provides 1000 VDC continuous isolation and is hi-pot tested to 3000 VDC for 60 seconds.

• Q: How does the module detect fault conditions?

  A: The module performs automatic diagnostics, detecting broken wires for 4-20 mA loops and undervoltage conditions for 1-5 V inputs.

• Q: What is the input impedance for voltage signals?

  A: In voltage mode, the input impedance is greater than 20 MOhm.

• Q: Is the filtering adjustable?

  A: The module includes a fixed single-pole low-pass filter with a cutoff at 15 Hz +/- 20 %.

• Q: How is the module status communicated?

  A: The module features front-panel LEDs for bus communication (Active), channel activation (8), and fault diagnostics (8 per channel + 1 module fault).

• Q: What is the maximum operating altitude?

  A: The module is rated for reliable operation up to an altitude of 5000 m.

• Q: Is the module compatible with older Quantum CPUs?

  A: Compatibility is generally maintained; however, ensure the CPU firmware version supports the 9-word input addressing requirement.
