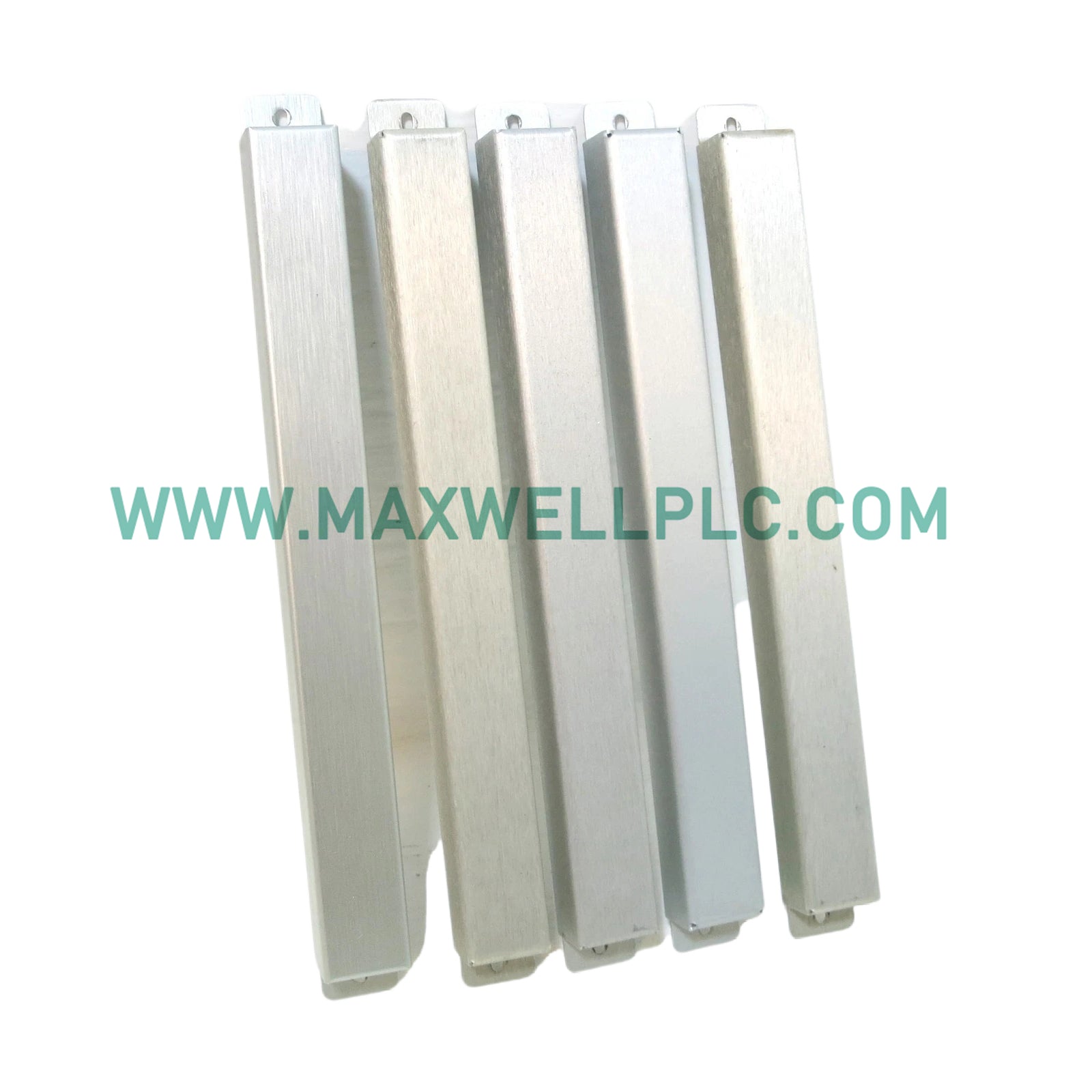

The Bently Nevada 128031-01C, also cataloged as the 128031-01 Rear Connector Cover, operates as a dedicated hardware component for physical backplane environmental isolation within 3500 Machinery Protection System platforms.

Physical Variant Matrix

• 128031-01: Base aluminum rear blank cover plate layout.

• C: Conformal coating option or modified tracking suffix denoting physical assembly specification.

Mechanical and Environmental Parameters

Instrumentation Interface Isolation and Cooling Profile

The implementation of this passive aluminum plate directly impacts the thermal management of adjacent instrumentation. By closing empty I/O module gaps, the cover prevents bypass air leakage, maintaining the air velocity profile required across active modules monitoring rotor dynamics. This shielding maintains the separation necessary to limit cross-talk suppression failures on unshielded backplane traces while protecting neighboring terminals assigned to eddy-current probe scaling and gap voltage validation (-10 VDC targets).

Package Manifest

• 1 Bently Nevada 128031-01C Rear Connector Cover Plate

• 2 Integrated Chassis Retention Fasteners

Field Mounting Guidelines

Hardware Alignment

• Place the panel assembly over the unpopulated rear I/O slot of the 3500/05 rack.

• Align the upper and lower integrated screws with the threaded holes on the rack frame.

Fastener Torque and ESD Measures

• Tighten the retention screws to secure the metal plate directly against the chassis frame grounding strip.

• Maintain standard ESD ground wrist strap compliance during installation if working near adjacent live backplane circuits.

Engineering FAQ

• What physical function does this plate perform on the rack chassis?

  The plate mechanically blocks empty backplane slots to prevent cooling air diversion and keep dust off unused terminal connections.

• Does this hardware asset draw current from the 3500 power supply modules?

  No, this is a passive structural aluminum item that requires no electrical connection or power consumption.

• What thermal limits bound the deployment of this blank panel?

  The component is rated to match the full chassis storage and operating spectrum of -40 to +85 deg C.

• Is hot-swapping or live installation of this panel permitted?

  Yes, because it has no electrical contacts, it can be mounted while the rack is active, provided neighboring circuits are not touched.

• What are the exact physical weight and size metrics for shipping manifest records?

  The net mass equals 0.05 kg, and the technical dimensional block measures 24 x 2.3 x 2 cm.

• Can this plate be used on the front panel of the 3500/05 rack?

  No, this part is specifically designed to fit the rear I/O slot orientation and screw spacing pattern.

• Does the plate provide any automated electrical monitoring or diagnostics?

  No, it provides no active loop feedback, acting solely as a physical barrier for unpopulated backplane slots.

• Why must empty slots remain covered in high-density installations?

  Uncovered slots create low-resistance paths for forced air, reducing flow across active processing modules and risking thermal faults.
